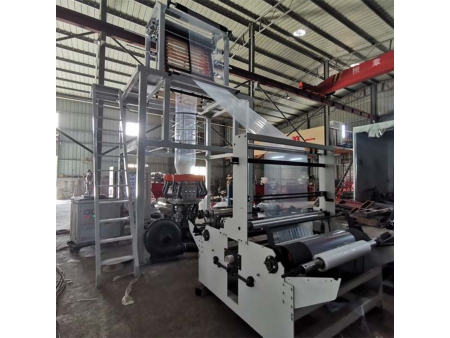

ABA Three Layer Blown Film Machine
Request a Quote
This ABA three layer blown film machine features the screw and barrel that are crafted of superior alloy steel and given a three-day nitriding treatment, granting it remarkable resilience and longevity.
Using the ABA design can reduce material costs and enhance machine performance. This approach makes it possible to incorporate 50% calcium carbonate, which is more affordable than HDPE. Recycled materials, too, can be mixed with HDPE without any negative impact on the film's quality.
Technical Parameters
| Model | SJ-A50/ABA800 | SJ-A55/ABA1000 | SJ-A65/ABA1500 |
| Screw diameter (mm) | 45/50 | 50/55 | 65/65 |
| Screw L/D ratio | 30:1 | 30:1 | 30:1 |
| Film width (mm) | 200-800 | 250-1000 | 1000-1500 |
| Film thickness (mm) | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
| Max. extrusion capacity (kg/h) | 60 | 70 | 120 |
| Power of cooling cylinder (kW) | 0.13*2 | 0.13*2 | 0.13*3 |
| Power of driving motor (kW) | 11/15 | 18.5/15 | 30/30 |
| Temperature control | 3/3 | 3/3 | 4/4 |
| Average power (kW) | 45 | 52 | 95 |
| Die size (mm) | 80/150 | 100/200 | 300 |
| Winding speed (m/min) | 10-80 | 10-80 | 10-80 |
| Power of take-up motor (kW) | 1.5 | 1.5 | 2.2 |
| Weight (kg) | 2600 | 3300 | 5500 |
| Cover dimension (m) | 4.2*3.3*4.5 | 4.4*3.5*6.5 | 4.6*3.6*8.5 |
