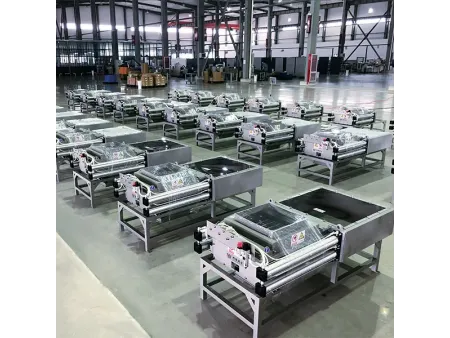

Automatic Powder Magnetic Filter
Request a Quote
Permanent Magnetic Separator
Magnetic filter for separating ferrous impurities from dry free-flowing powders
- Surface magnetic: 9000-13000GS
- Welding standard: General/sanitary grade (optional)
- Operating pressure: Atmospheric pressure/negative pressure (optional)
- Operating temperature: 80 to 250℃
- Processing capacity : 3.5-24m³/h
- Installed power: 0.4kW
- IP grade: IP54/IP66 (optional)
This high-efficiency iron removal system, developed with proprietary technology, is designed to operate after material screening and before final packaging, ensuring a higher level of purity in processed materials. By capturing ferrous contaminants at critical points in the production process, it helps prevent impurities from affecting product quality. Used in industries where material purity is a priority, this system is ideal for high-volume production lines with a high degree of automation. Its integration enhances iron removal efficiency, minimizes the need for manual intervention, and reduces safety risks associated with ferrous contamination, contributing to a safer and more efficient manufacturing environment.

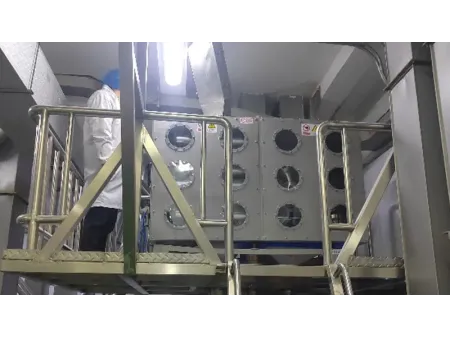

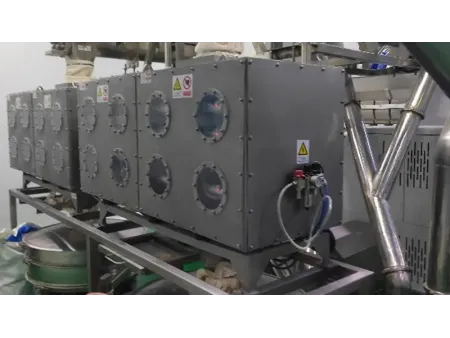

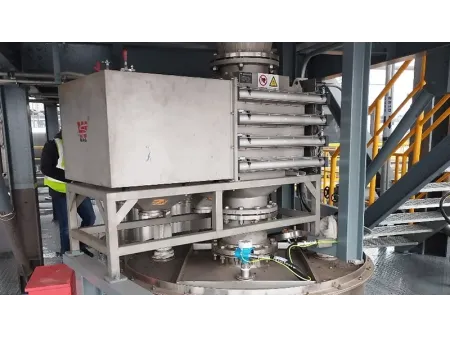

Applications
- Lithium Battery Industry
Precursor compounds, cathodes, anodes, electrolytes, and membrane materials - Chemical Industry
PVC, carbon black, antioxidants - Food Industry
Milk powder, starch, chili powder, garlic powder, soybean powder, sugar - Semiconductor Industry
Semiconductor packaging materials
Specifications
Model | |||||||
Operating pressure | Atmospheric pressure, Negative pressure | ||||||
Operating temperature | 80℃, 100℃, 120℃, 150℃, 200℃, 250℃ | ||||||
Material | Flow passage | 304, 316L | |||||
Non flow passage | 304, 316L | ||||||
Sealing | SIL, Silicone sponge, PTFE, NBR, FKM, EPDM, Other | ||||||
Surface Treatment | Internal | Ra0.4 bright, Blasted, Brushed, PTFE coated, F40(0.1T) coated, F40(0.2T) coated, Others | |||||
External | Ra0.4 bright, Blasted Brushed | ||||||
Surface magnetic | 9000GS, 10000GS, 11000GS, 12000GS, 13000GS | ||||||
Welding standard | General, Sanitary grade | ||||||
Connection standard | HG/T20592-2009 PN6, HG/T20592-2009 PN10, DIN2502, JIS/KS 10K, ASME/ANSI, Class150, Others | ||||||

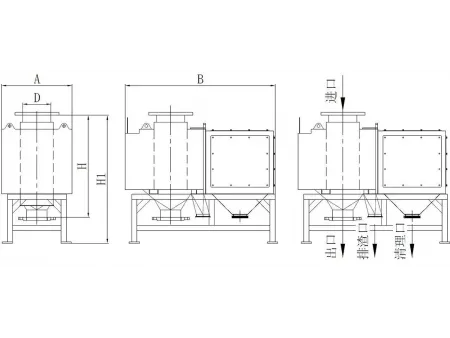

Dimensions (mm) | Connection size | DN150 | DN200 | DN250 | DN300 | DN350 | DN40 |
A | 544 | 597 | 650 | 703 | 756 | 809 | |
B | 1155 | 1260 | 1365 | 1470 | 1575 | 1680 | |
D | 159 | 219 | 273 | 325 | 377 | 426 | |
H | 550 | ||||||
H1 | 750 | ||||||
Number of magnetic bars | 3 4 | 4 5 | 5 6 | 6 7 | 7 8 | 8 9 | |
Processing capacity (m³/h) | 3.5 | 6 | 10 | 14 | 18 | 24 | |
Installed power (kW) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | |
Air consumption (L/min) | 160 | 160 | 160 | 160 | 260 | 260 | |
Weight (kg) | 160 | 185 | 215 | 260 | 310 | 370 | |
Pneumatic cylinder | AirTAC, SMC, FESTO | ||||||
Control cabinet | IP grade | IP54, IP66 | |||||
Dimensions | 500×400×250mm | ||||||
RAL7035 | |||||||
Colour | |||||||
Port | DCS |

Features
- The filtration chamber is designed as a fully enclosed structure without any removable connection points, preventing fasteners or structural components from falling into the material flow. This ensures process reliability and contamination-free separation.
- A dual-seal system isolates the filtration chamber from the cleaning and dust-proof chambers, preventing cross-contamination. The entire system is built to withstand impact pressure, ensuring that no powder leaks during operation. Each magnetic grid module performs its cleaning function independently, allowing for continuous online cleaning without interrupting material flow. This design maintains process efficiency while eliminating the risk of powder leakage during the cleaning cycle.
- A vibration-assisted design enhances material detachment from the magnetic rods. The dual-support structure ensures mechanical stability, preventing stress-related component failures. Before each cleaning cycle, the vibration system loosens accumulated material, reducing raw material loss. Once ferrous impurities remain attached to the rods, the scraper assembly automatically removes them. A second vibration cycle at the end ensures complete impurity removal from the magnetic rod ends.
- The scraper ring assembly combines a metal framework, flexible sealing material, and precision-engineered scraper rings. The metal framework provides structural strength, while the flexible material ensures an effective seal. The scraper rings, made from self-lubricating, wear-resistant engineering plastic, maintain a precision fit with a clearance of less than 0.05mm, optimizing cleaning performance and extending service life.
