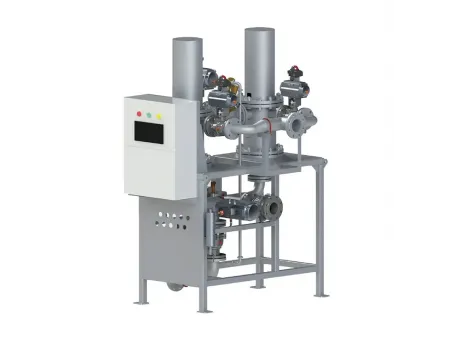

Permanent Magnetic Separator

Magnetic filter for separating ferrous impurities from liquids, pastes and pumpable media

  • Surface magnetic: 8000-10000GS
  • Welding standard: General/sanitary grade (optional)
  • Operating pressure: ≤1.0MPa
  • Operating temperature: 80 to 250℃
  • Processing capacity : 9-25m³/h
  • Installed power: 0.55kW
  • IP grade: IP54/IP66/Dust-EX (optional)

Achieving high material purity in liquid-based production requires effective separation of ultra-fine ferromagnetic impurities. The automatic fluid magnetic filter, developed with proprietary technology, enhances both product safety and process reliability by ensuring continuous iron removal from liquids and slurry materials.
Industries that demand strict material purity, large-scale production, and automated processing benefit from this system’s ability to increase separation efficiency, reduce reliance on manual labor, and minimize contamination risks. Its application extends to food processing, chemical production, and other sectors where maintaining consistent product quality is important.

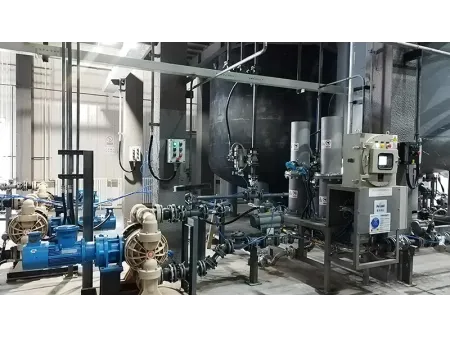

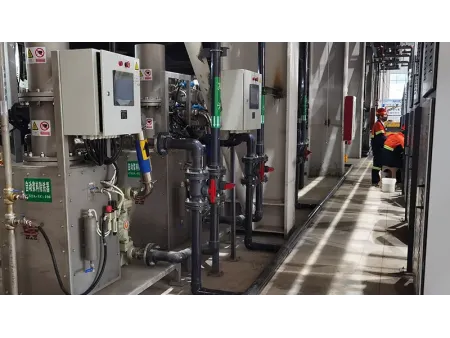

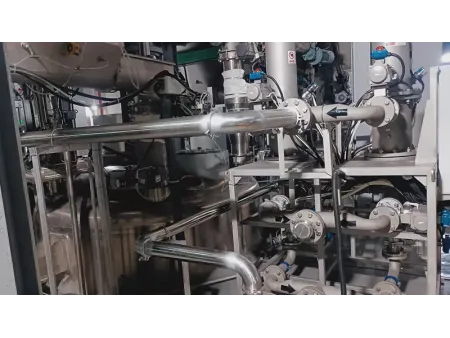

Applications
  • Lithium Battery Industry
    Ternary lithium, lithium iron phosphate, nickel-cobalt-manganese hydroxides
  • Chemical Industry
    Carbon nanotubes, electronic-grade materials
Specifications
Model SWcp-LAS-M-5 SWcp-LAS-M-7 SWcp-LAS-M-9 SWcp-LAS-M-12
Operating pressure ≤0.6MPa, ≤1.0MPa
Operating temperature 80℃, 100℃, 120℃, 150℃, 200℃, 250℃
Material Flow passage 304, 316L
Non flow passage 304, 316L
Sealing SIL, PTFE, NBR, FKM, EPDM, Others
Surface Treatment Internal Ra0.4 bright, PTFE coated, F40(0.1T) coated, F40(0.2T) coated, Others
External Ra0.4 bright, Blasted, Brushed
Surface magnetic 8000GS, 9000GS, 10000GS
Connection standard HG/T20592-2009 PN6, HG/T20592-2009 PN10, IDF, ISO 2852, DIN 11850, Others

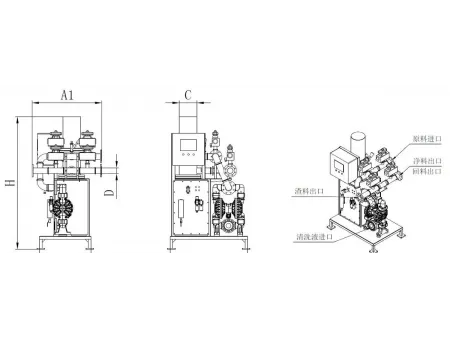

Dimensions (mm) A 700 800 800 880
A1 800 800 1040 1100
B 1000 1100 1200 1400
C Ø168 Ø273 Ø273 Ø325
D DN40 DN50 DN65 DN80
H 2000 2000 2000 2000
Number of magnetic bars 5 7 9 12
Processing capacity (m³/h) 9 15 20 25
1* Installed power (kW) 0.55 0.55 0.55 0.55
2* Air consumption (L/min) 1200 2000 2000 2500
3* Net weight (kg) 280 385 410 460
Diaphragm pump Electric diaphragm pump, Pneumatic diaphragm pump
Control cabinet IP grade IP54, IP66, Dust-EX, Gas-EX
Dimensions 800×600×250mm
Colour RAL7035
Port DCS access, Others

Notes
1.Installed power refers to the total power consumption of all components in the system. For example, the SWap-LAS-M-7 model has an installed power of 550W, while the actual operating power consumption is approximately 50W.
2.Air consumption is the instantaneous consumption at 0.6 MPa pressure. For the SWap-LAS-M-7 model, a single cleaning cycle consumes approximately 700L of compressed air.
3.Net weight is based on the actual condition at the time of shipment.

Features
  • Built with a high-pressure resistant design, capable of withstanding up to 10 kg of pressure, ensuring durability and reliability in demanding processing environments.
  • Magnetic rods are aligned in the same direction as the material flow, allowing for greater contact with the product. This enhances the adsorption of ferrous impurities while making the cleaning process more efficient.
  • Optimized material flow path ensures smooth transportation, reducing the risk of blockages and buildup within the system.
  • A multi-cylinder configuration can be implemented for increased processing capacity, allowing the system to be adapted to different production requirements.
