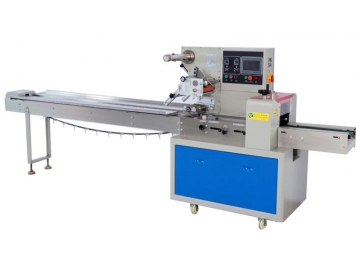

KCH-250B/250D Horizontal flow wrapper

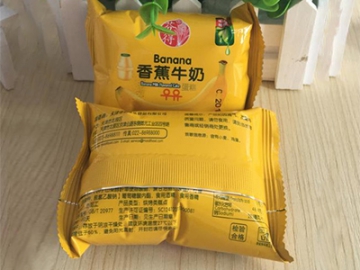

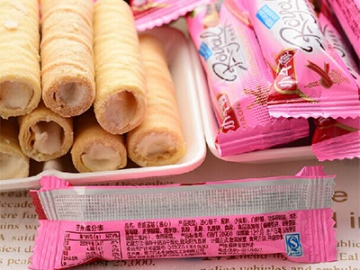

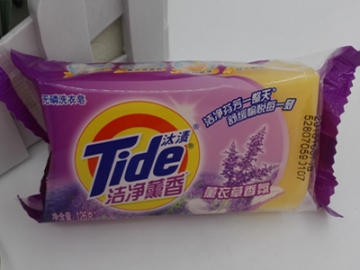

The KCH-250B/250D horizontal flow wrapper is a packing machine ideal for the individual wrapping of products. Some compatible products include candy bars, chocolate, brownies, buns, crackers, ice cream bars, popsicles, and even electronic and medical products.
304 stainless steel components are available for those involved in food and medicine production operations that have higher safety requirements. The wrapping equipment also provides high corrosion resistance, stable performance, and long service life.

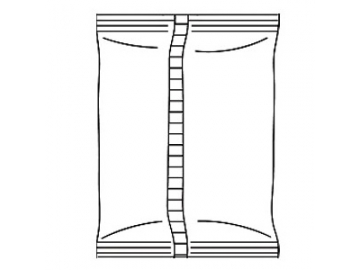

- Pillow bag

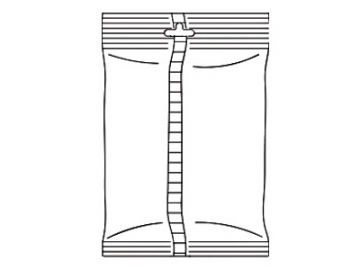

- Pillow bag with euro hole

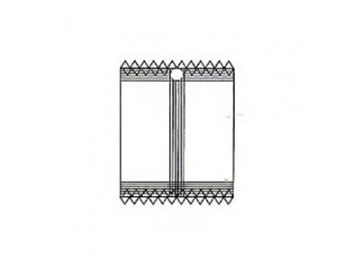

- Pillow bag with round hole

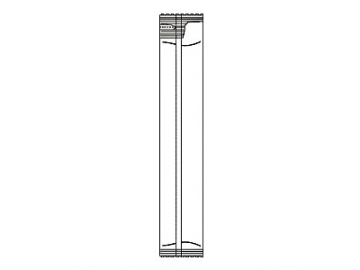

- Stick seal bag

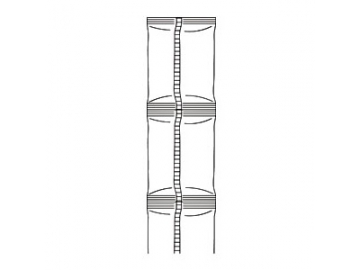

- Linking bag
| Model | KCH-250B/250D |
| Film width | Max.250mm |
| Bag length | 45-90mm |
| Bag width | 30~80mm |
| Product height | Max.35mm |
| Film roll diameter | Max.320mm |
| Packing speed | 40~230 pack/minute |
| Size | (L)3770*(W)670*(H)1450mm |
| Weight | 400Kg |
Details
The 7-inch touch screen on the wrapping machine features clear parameters that are easy to set.
The bag forming unit of the flow-pack wrapper can be freely adjusted, offering users various specifications.
The flow-pack wrapper is equipped with an ink roll coding machine and telescopic film placing device.
The packaging machine features a highly sensitive sensor that automatically tracks color standard positions, ensuring each position is accurate.

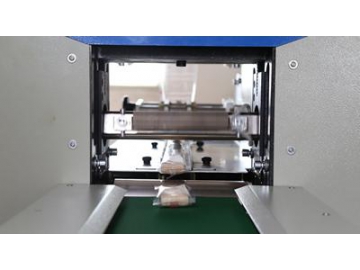

The flow-pack machine has the ability to locate and cut off with no film sticking to the blade. This saves packaging film usage, ensures a bag length error rate of less than 2mm, and reduces costs.
The wrapping machine uses a safe Panasonic PLC control system with a self-diagnosis function, meaning it will automatically stop operations in the event of any malfunctions.
