Spiral Duct Flanging Machine

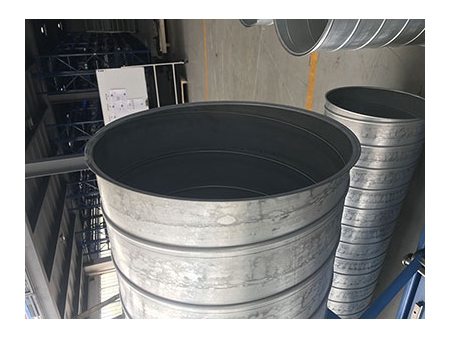

Our spiral duct edge flanging machine is a versatile and effective tool for adding flanged edges to both spiral and corrugated ducts. Ideal for HVAC systems, electrical setups, and construction projects, it enhances productivity across multiple sectors.
This ductwork equipment has the capacity to process ducts exceeding three meters in length, completing flanging operations rapidly, in just 15 to 60 seconds depending on the material. This duct processing system is designed for high output with minimal manpower, requiring only one operator who can start the process with a simple button push.
Designed for simplicity and cost efficiency, the spiral duct flanger speeds up duct production while reducing labor costs. It's an effective, reliable tool for any facility developed to improve ductwork manufacturing processes.
Parameter:| Model | SBFB-1600 |
| Diameter range | ⌀200-1600mm |
| Thickness of strip | 0.4-1.2mm (galvanized steel) |
| Flanging width | 7.-20mm |
| Speed | 1-30m/min |
| Motor power | 1.5kW |
| Machine weight | 810kg |
| Dimension | 3350×850×1200mm |
