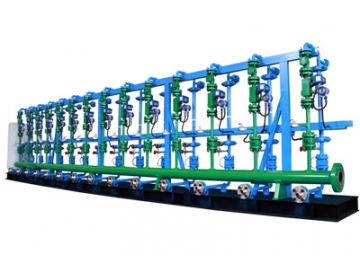

Water Distribution Device for Multi Oil Wells

Request a Quote

View All: http://zjjlzk-petro.com/2-1-1-water-distribution-device-for-multi-oil-wells.html

Multi-well water distribution device is engineered and manufactured on the basis of our in-depth knowledge and many years of combined experience in the field of oilfield water injection, aiming at providing high reliability and maximizing cost-effectiveness. Based on modular, skid-based and integrated design, the water distribution device is advanced in technique, reliable in safety, economic in operation, complete in function and reasonable in process, significantly facilitating oilfield management and safe operation.

Features

Small footprint, easy operation, high metering precision, high reliability, low maintenance and unmanned operation;
Standard modular design, interchangeable parts for every single well; Compact and elegant installation structure of pipelines and valves, which enables procedures of procurement, maintenance and repair easier;
The pressure and flow rate of each node will be displayed on-site and remotely, and the device is designed with functions of flow rate modulating and under-pressure & over-pressure alarm;
Intelligent flow rate measurement and control unit has an integrated structure that is made through forging process, resulting high modulating precision and excellent erosion resistance while achieving manual or automatic modulating of flow rate for every single well;
Y type strainer is outfitted to extend the service life of instruments and improve the operational stability;
This water distribution device is equipped with standard flow meters, all the flow meters at every single well can be calibrated by means of the master flow meter, thus eliminating the need for independent flow measurement calibration of each flow meter;
Control panel is placed at the same skid where the device is installed, allowing the parameter setting and date logging to be accomplished simultaneously, as well as achieving remote data transmission and remote flow rate modulating;
