90mm 60W Brush DC Gear Motor Manufacturer

90mm 60W Brush DC Gear Motor

Request a Quote

View All: http://zd-drivers.com/2-1-8-brush-dc-gear-motor.html

Motor Specifications

Mode	Voltage	Power	No-load Parameters		Load Parameters			Brush Life	Motor Weight
	Voltage	Power	Speed	Current	Speed	Torque	Current	Brush Life	Motor Weight
	V	W	r/min	A	r/min	mN.m	A	H	kg
Z5D60-12	12	60	3000	2.0Max.	2600	220	9.0	2000	2.2
Z5060-24	24	60	3100	1.0Max.	2800	205	3.8	2000	2.2
Z5060-90	90	60	3100	0.3Max	2900	198	1.0	2000	2.2

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead	Gear Ratio	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Type Motor/Gearhead	Speed r/min	373	311	224	186	155	112	93	77	56	46	37	31	28	23	18	15
Z5D60-24GU-28S	5GU()RC 5GU()RT	1.12	1.34	1.86	2.24	2.69	3.73	4.48	4.83	6.71	8.06	10.1	12.1	13.4	16.1	20.0	20.0
Z5D60-24GU-28S	5GU()RC 5GU()RT	11.4	13.7	19.0	22.8	27.4	38.0	45.7	49.3	68.4	82.2	103	123	137	164	200	200

Type	Gear Ratio	3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
Z5D60-24GU	Speed r/min	933	778	560	467	373	311	280	224	187	156	140	112	93	78	70	56	47	37	31	28	23	19	16	14
	5GU()KB	0.50	0.60	0.83	0.99	1.24	1.49	1.49	1.86	2.24	2.69	2.69	3.36	4.03	4.83	5.37	6.71	8.06	10.1	10.9	12.1	14.5	18.1	20.0	20.0
	5GU()KB	4.87	5.85	8.12	9.75	12.2	14.6	14.6	18.3	21.9	26.3	26.3	32.9	39.5	47.4	52.6	65.8	78.9	98.7	107	118	142	178	200	200

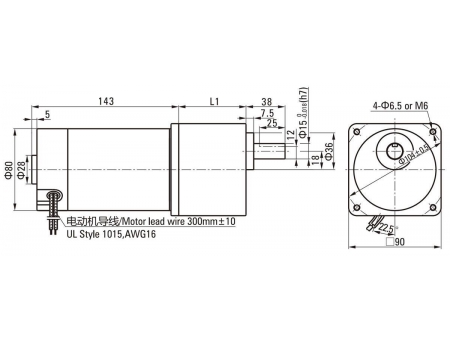

L1=42.5mm
