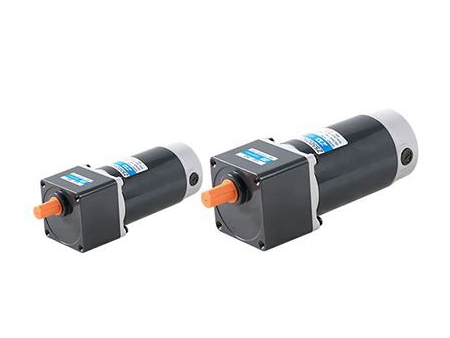

104mm 250W Brush DC Gear Motor Manufacturer

104mm 250W Brush DC Gear Motor

Request a Quote

View All: http://zd-drivers.com/2-1-12-brush-dc-gear-motor.html

Motor Specifications

Model	Voltage	Power	No-load Parameters		Load Parameters			Brush Life	Motor Weight
	Voltage	Power	Speed	Current	Speed	Torque	Current	Brush Life	Motor Weight
	V	W	r/min	A	r/min	mN.m	A	H	kg
Z6D250-24	24	250	3400	3.0Max	3000	796	16.0	2000	3.2
Z60250-90	90	250	3300	1.0Max.	3000	796	4.00	2000	3.2
Z6D250-220C	220	250	3300	0.8Max.	3000	796	2.00	2000	3.2

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead	Gear Ratio	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Type Motor/Gearhead	Speed r/min	400	333	240	200	166	120	100	83	60	50	40	33	30	25	20	16
Z6D250-24GU-30S	6GU()RC 6GU()RT	4.35	5.20	6.50	8.70	10.4	14.5	17.4	18.8	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0
Z6D250-24GU-30S	6GU()RC 6GU()RT	44.4	53.0	66.3	88.7	106	148	177	192	200	200	200	200	200	200	200	200

Type	Gear Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
Z6D250-24GN	Speed r/min	1000	833	600	500	400	333	240	200	166	120	100	83	60	50	40	33	30	25	20	16	15
	6GU()K	1.93	2.32	3.22	3.87	4.83	5.80	7.25	8.70	10.4	13.1	15.7	18.8	26.1	31.3	39.2	40.0	40.0	40.0	40.0	40.0	40.0
	6GU()K	19.0	22.7	31.6	37.9	47.4	56.9	71.1	85.3	102	128	154	184	256	307	384	400	400	400	400	400	400

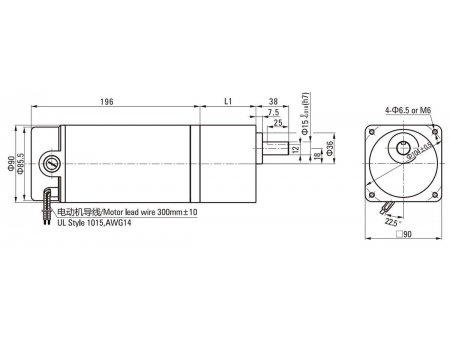

L1=72mm
