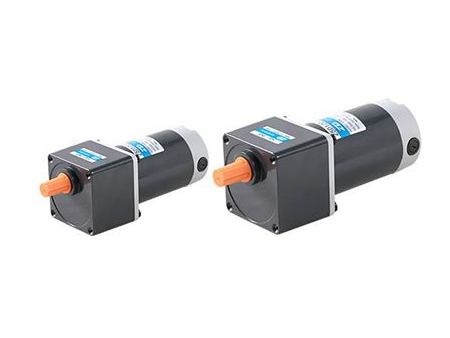

90mm 120W Brush DC Gear Motor

Request a Quote

View All: http://zd-drivers.com/2-1-10-brush-dc-gear-motor.html

Motor Specifications

Model	Voltage	Power	No-load Parameters		Load Parameters			Brush Life	Motor Weight
	Voltage	Power	Speed	Current	Speed	Torque	Current	Brush Life	Motor Weight
	V	W	r/min	A	r/min	mN.m	A	H	kg
Z5D120-12	12	120	3100	2.0Max.	2500	458	15.0	2000	2.2
Z50120-24	24	120	3200	1.0Max.	2600	441	7.00	2000	2.2
Z50120-90	90	120	3000	0.3Max	2600	441	2.00	2000	2.2

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead	Gear Ratio	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Type Motor/Gearhead	Speed r/min	346	288	208	173	144	104	86	72	52	43	34	28	26	21	17	14
Z5D120-24GU-26S	5GU()RC 5GU()RT	2.41	5.44	4.02	4.82	5.78	8.03	9.64	10.4	14.5	17.4	20.0	20.0	20.0	20.0	20.0	20.0
Z5D120-24GU-26S	5GU()RC 5GU()RT	24.6	55.5	41.0	49.2	59.0	81.9	98.3	106	148	177	200	200	200	200	200	200

Type	Gear Ratio	3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
Z5D120-24GU	Speed r/min	867	722	520	433	347	289	260	208	173	144	130	104	87	72	65	52	43	35	29	26	22	17	14	13
	5GU()KB	1.07	1.29	1.79	2.14	2.68	3.21	3.21	4.02	4.82	5.78	5.78	7.23	8.68	10.4	11.6	14.5	17.4	20.0	20.0	20.0	20.0	20.0	20.0	20.0
	5GU()KB	10.5	12.6	17.5	21.0	26.2	31.5	31.5	39.4	47.2	56.7	56.7	70.9	85.0	102	113	142	170	200	200	200	200	200	200	200

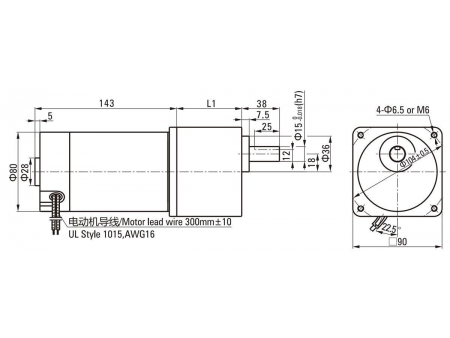

L1=42.5mm
