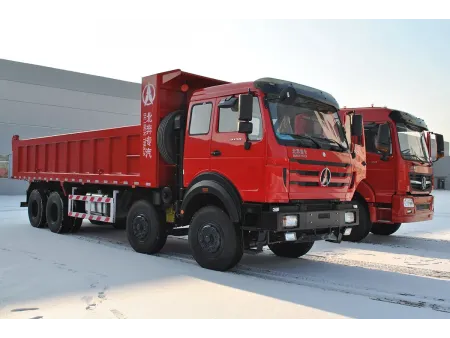

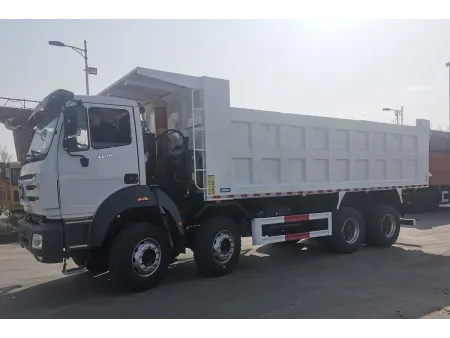

8×4 Dump Truck

Request a Quote

Website: http://heavytrucks-en.com/2-1-3-8-4-dump-truck.html

CONSTRUCTION TRUCKS

This 8×4 dump truck is equipped with a powertrain featuring a 420 HP engine, a 12-speed manual transmission, and dual reduction rear axles. It can be configured with Weichai WP10, WP12, or WP13 engines, meeting Euro 2 and Euro 3 emission standards. At 2100 rpm, the system is capable of delivering up to 550 HP, ensuring powerful performance for demanding applications.

Engine power 380 HP / 2200 rpm
Gross vehicle weight 31,000 kg
Cargo box volume 20–25 m³
Rear axle type 13-ton dual reduction drive axle

Dimensional Drawing

Applicable to 3138KZ

Applicable to 3155KZ

Specifications

Model	3138KZ	3142KZ	3155KZ
Driving Type	8×4
Engine	Type: WP10.380E32 Version: EURO II Displacement (I): 9,726 Max. Power (HP/rpm): 380/2200 Max. Torque (N.m/rpm): 1460/1400~1600 Cylinder: 6 in-line	Type: WP12.420E32 Version: EURO II Displacement (I): 11,596 Max. Power (HP/rpm): 420/2100 Max. Torque (N.m/rpm): 1750/1200~1500 Cylinder: 6 in-line	Type: WP13.550E30 Version: EURO III Displacement (I): 12,54 Max. Power (HP/rpm): 550/2100 Max. Torque (N.m/rpm): 2300/1200~1500 Cylinder: 6 in-line
Transmission	9JS180 / 12.65-1 Gears: 9 speed forward Synchromesh or Constant Mesh: Synchromesh Transfer Box: not available Power Take-Off (P.T.O.): yes	12JS200T / 15.53-1 Gears: 12 speed forward Synchromesh or Constant Mesh: Synchromesh Transfer Box: not available Power Take-Off (P.T.O.): yes	16JSDX240T / 15.53-1 Gears: 16 speed forward Synchromesh or Constant Mesh: Synchromesh Transfer Box: not available Power Take-Off (P.T.O.): yes
Steering System	8098 Recirculating ball steering gear, hydraulic booster
Clutch	Ø430mm single dry friction disc, diaphragm spring, pushing type
Fuel Tank	400L (iron)
Front Axle	7500kg 7500kg, non-drive steering
Middle & Rear Axle	13000kg 13000kg, double reduction driving axle, differential lock
Suspension	Front 12pcs×2 / Rear 13pcs hard parabolic spring
Brakes	Service: dual circuit air brakes Emergency/Parking: spring potential brake Auxiliary: EVB (optional ABS)
Electrical Equipment	Alternator: 70Amp Starter Motor: 5.5kW Batteries: 2×12V – 135AH
Performance Data	Gradeability@GVM: 30% Max. Geared Road Speed: 80km/h Final Drive Ratio: 5.263 (optional 4.769, 5.921)
Tyre	Size and Ply Rating: 12.00R20-18PR Steel Rim
Dumper Cargo Box	Size: 6500×2300×1500mm, front lifting system	Size: 8000×2300×1500mm, front lifting system	Size: 6500×2300×1500mm, front lifting system
Dimensions	Wheel Base (WB): 1500 3550 1450mm Overall Length (OL): 9800mm Overall Width (OW): 2500mm Overall Height (OH): 3670mm Front Overhang (FOH): 1435mm Rear Overhang (ROH): 1600mm	Wheel Base (WB): 1500 4450 1450mm Overall Length (OL): 11000mm Overall Width (OW): 2500mm Overall Height (OH): 3670mm Front Overhang (FOH): 1435mm Rear Overhang (ROH): 1600mm	Wheel Base (WB): 1500 3550 1450mm Overall Length (OL): 9800mm Overall Width (OW): 2500mm Overall Height (OH): 3670mm Front Overhang (FOH): 1515mm Rear Overhang (ROH): 1600mm
Total Vehicle Weight	17500kg

*The above data is subject to the actual product.

Applications

Construction and Civil Engineering

Earthmoving operations: Ideal for transporting excavated materials such as soil, sand, rock, and backfill, one of the most common and essential applications for dump trucks.
Aggregate transport: Efficiently moves sand, gravel, crushed stone, and other bulk construction materials to mixing plants or job sites.
Infrastructure projects: Supports major infrastructure developments such as roads, bridges, tunnels, dams, and airports by transporting various construction materials.
Construction waste removal: Transfers debris, rubble, and other construction waste from demolition or building sites to designated disposal facilities.

Mining and Quarrying

Ore hauling: Transports mined ore from open-pit or underground mines (using compact dump trucks for underground operations).
Overburden removal: Moves overburden material from the mining site to make way for ore extraction.
Waste Rock & yailings Transport: Hauls waste rock and tailings to dumping areas or tailings storage facilities.
