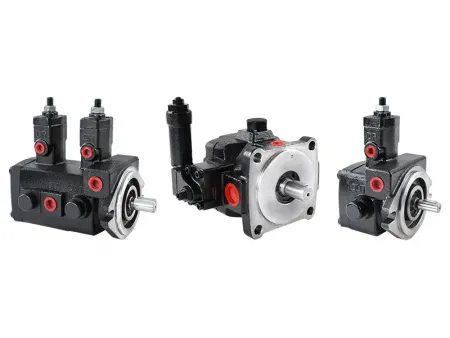

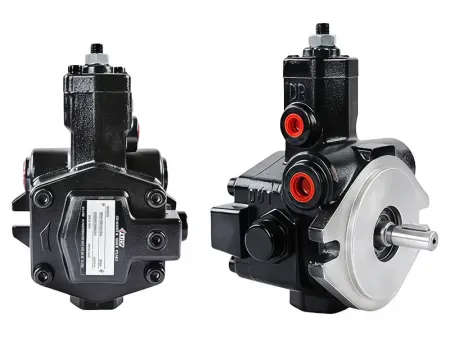

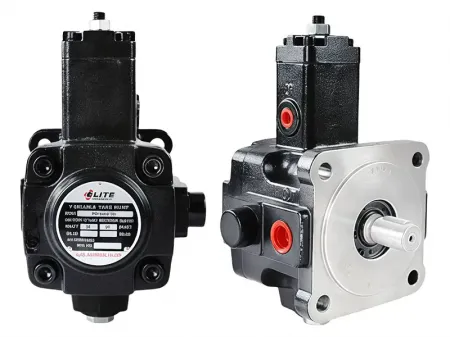

Variable Displacement Vane Pump

Request a Quote

Website: http://hydraulicparts-en.com/2-1-3-variable-displacement-vane-pump.html

This series of oil pumps offers low noise during operation, smooth running, and excellent wear resistance, making them suitable for use in machine tools and specialized machinery. They feature minimal temperature rise, low horsepower loss, and an integrated automatic pressure compensation design.

Technical Specifications

Model	Delivery capacity (at 1800rpm) (L/min)	Pressure adjustment range (bar)	Speed (rpm)
Model	Delivery capacity (at 1800rpm) (L/min)	Pressure adjustment range (bar)	Max.	Min.
VP-08	8	3~70	1800	800
VP-12	12	3~70	1800	800
VP-15	15	3~70	1800	800
VP-20	20	3~70	1800	800

Model	Delivery capacity (at 1800rpm) (L/min)	Pressure adjustment range (bar)	Speed (rpm)
Model	Delivery capacity (at 1800rpm) (L/min)	Pressure adjustment range (bar)	Max.	Min.
VP-23	23	3~70	1800	800
VP-26	26	3~70	1800	800
VP-30	30	3~70	1800	800
VP-40	40	3~70	1800	800

Model	Delivery capacity (at 1800rpm) (L/min)	Pressure adjustment range (bar)	Speed (rpm)
Model	Delivery capacity (at 1800rpm) (L/min)	Pressure adjustment range (bar)	Max.	Min.
SVPF-08	8	3~70	1800	800
SVPF-12	12	3~70	1800	800
SVPF-15	15	3~70	1800	800
SVPF-20	20	3~70	1800	800

Model	Delivery capacity (at 1800rpm) (L/min)	Pressure adjustment range (bar)	Speed (rpm)
Model	Delivery capacity (at 1800rpm) (L/min)	Pressure adjustment range (bar)	Max.	Min.
SVPF-23	23	3~70	1800	800
SVPF-26	26	3~70	1800	800
SVPF-30	30	3~70	1800	800
SVPF-40	40	3~70	1800	800

Model	Delivery capacity (at 1800rpm) (L/min)	Pressure adjustment range (bar)	Speed (rpm)
Model	Delivery capacity (at 1800rpm) (L/min)	Pressure adjustment range (bar)	Max.	Min.
VDP-15	15	3~80	1800	800
VDP-30	30	3~80	1800	800
VDP-40	40	3~80	1800	800

Model	Delivery capacity (at 1800rpm) (L/min)	Pressure adjustment range (bar)	Speed (rpm)
Model	Delivery capacity (at 1800rpm) (L/min)	Pressure adjustment range (bar)	Max.	Min.
NVP-23	23	3~70	1800	800
NVP-26	26	3~70	1800	800
NVP-30	30	3~70	1800	800
NVP-40	40	3~70	1800	800
