VP Series Double Variable Displacement Vane Pump
Request a Quote
Features
- Combines two variable displacement vane pumps into one unit, utilizing a common drive shaft.
- Driven by a single motor, reducing assembly space requirements.
- Can simultaneously supply different hydraulic circuits with their respective pressure and flow.
Technical Specifications
| Model | Delivery capacity (at 1800rpm) (L/min) | Operating pressure (bar) | Speed (rpm) | ||
| Front pump | Rear pump | Max. | Min. | ||
| | 8 | 8 | 3~8、 15~35、 30~55、 50~70 | 1800 | 800 |
| | 12 | 12 | 3~8、 15~35、 30~55、 50~70 | 1800 | 800 |
| | 15 | 15 | 3~8、 15~35、 30~55、 50~70 | 1800 | 800 |
| | 20 | 20 | 3~8、 15~35、 30~55、 50~70 | 1800 | 800 |
| | 23 | 23 | 3~8、 15~35、 30~55、 50~70 | 1800 | 800 |
| | 26 | 26 | 3~8、 15~35、 30~55、 50~70 | 1800 | 800 |
| | 30 | 30 | 3~8、 15~35、 30~55、 50~70 | 1800 | 800 |
| | 40 | 40 | 3~8、 15~35、 30~55、 50~70 | 1800 | 800 |

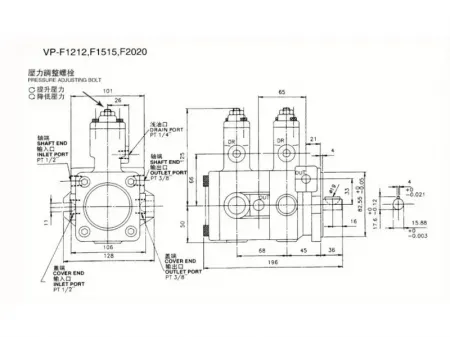

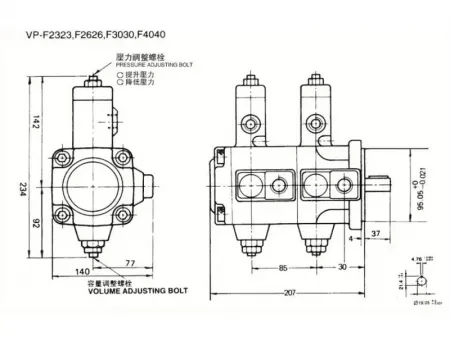

Dimensions
