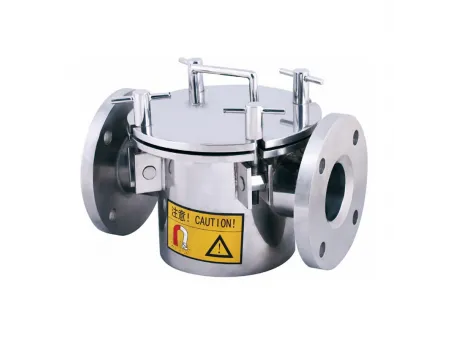

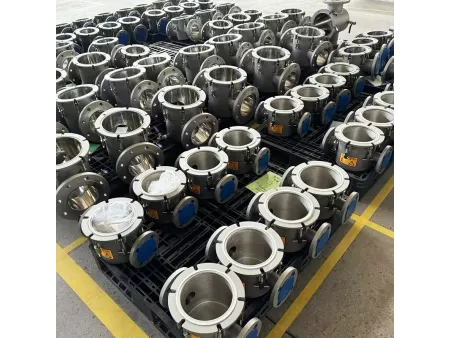

Magnetic Liquid Trap

Request a Quote

View All: http://magnets-en.com/2-1-4-magnetic-liquid-trap.html

Permanent Magnetic Separator

Liquid magnetic separator for removing ferrous contaminants from liquids of all viscosities

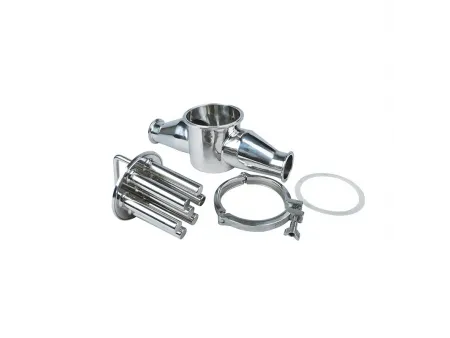

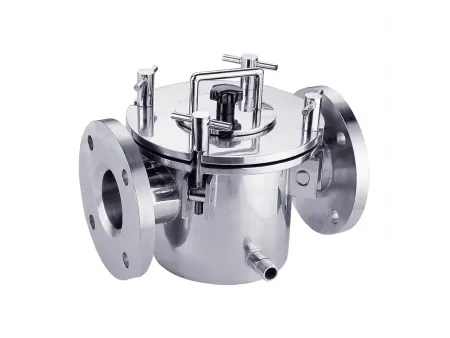

Options of magnetic liquid trap: Standard type, Easy cleaning type, Insulation type, Quick coupling type
Operating temperature: ≤350℃
Magnetic performance: 8000-12000GS
Welding standard: General/food grade
Material: 304/316L
Connection: DN100-DN300

In industries where even the smallest contaminants can affect product quality, effective ferrous impurity removal is essential. The magnetic liquid trap provides high-precision filtration, ensuring that iron particles and magnetic contaminants are efficiently removed from liquids and semi-liquids. This magnetic separation system helps safeguard downstream equipment from damage caused by ferrous particles, which can lead to costly downtime and product defects. Widely used in the lithium battery, chemical, food processing, and pharmaceutical industries, it offers reliable performance for companies like GEM, Ganfeng Lithium, and Huayou Cobalt, ensuring smooth and efficient operations.

Applications

Lithium Battery Industry:
Ternary precursors, lithium carbonate, lithium hydroxide, lithium iron phosphate, iron phosphate.
Food Industry:
Chocolate syrup, jams, syrups.

Specifications

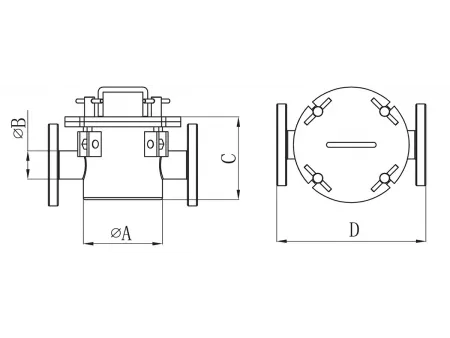

Model	Dimensions (mm)				Number of magnetic bars	Weight (kg)
Model	ØA	ØB	C	D	Number of magnetic bars	Weight (kg)
SWFL150/25	159	32	167	300	5	12
SWFL150/32	159	38	167	300	5	17
SWFL150/40	159	45	167	300	5	18
SWFL150/50	159	57	167	300	5	21
SWFL150/65	159	76	167	300	5	23
SWFL200/50	200	57	206	350	7	27
SWFL200/65	200	76	206	350	7	29
SWFL200/80	200	89	206	350	7	30
SWFL200/100	200	108	228	350	7	33
SWFL250/80	250	89	250	400	9	40
SWFL250/100	250	108	250	400	9	42
SWFL250/125	250	138	250	400	9	44
SWFL250/150	250	159	300	400	9	50
SWFL300/125	300	138	300	450	9	58
SWFL300/150	300	159	300	450	9	62
SWFL300/200	300	219	346	500	9	72

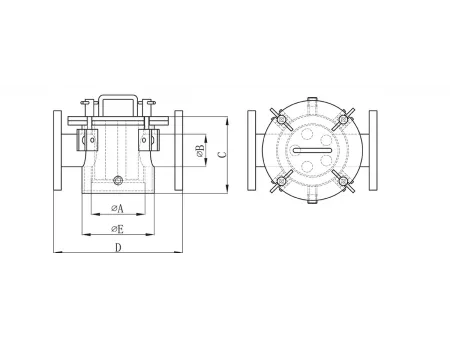

Model	Dimensions (mm)					Number of magnetic bars	Weight (kg)
Model	ØA	ØE	ØB	C	D	Number of magnetic bars	Weight (kg)
SWFLD125/25	125	168	32	185	300	5	21
SWFLD125/32	125	168	38	185	300	5	22
SWFLD125/40	125	168	45	185	300	5	23
SWFLD125/50	125	168	57	185	300	5	24
SWFLD125/65	125	168	76	185	300	5	25
SWFLD160/50	160	219	57	220	360	7	32.5
SWFLD160/65	160	219	76	220	360	7	34
SWFLD160/80	160	219	89	220	360	7	36
SWFLD160/100	160	219	108	220	360	7	37.5

Model	Dimensions (mm)							Number of magnetic bars

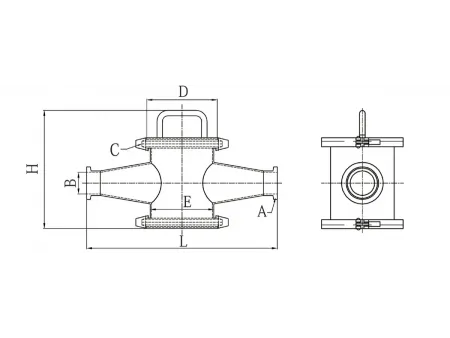

Model	A	B	C	D	E	L	H	Number of magnetic bars
SW-S15-25	1.5S	35.7	4.5S	130	114	330	240	5
SW-S20-25	2S	47.8	4.5S	130	114	330	240	5
SW-S25-25	2.5S	59.5	5.5S	155	140	420	260	7
SW-S30-25	3S	72.3	5.5S	155	140	420	260	7
SW-S35-25	3.5S	85.1	5.5S	155	140	420	260	7

Model	Dimensions (mm)							Number of magnetic bars

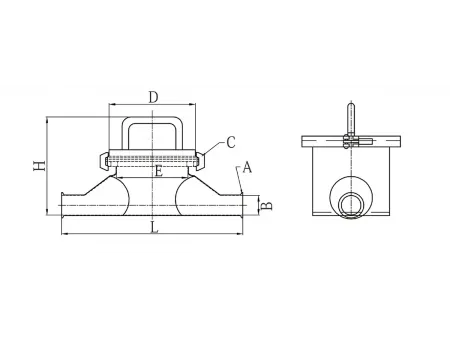

Model	A	B	C	D	E	L	H	Number of magnetic bars
SW-OS15-25	1.5S	35.7	4.5S	130	114.3	330	180	5
SW-OS20-25	2S	47.8	4.5S	130	114.3	330	180	5
SW-OS25-25	2.5S	59.5	5.5S	155	139.8	420	205	7
SW-OS30-25	3S	72.3	5.5S	155	139.8	420	205	7
SW-OS35-25	3.5S	85.1	5.5S	155	139.8	420	205	7

Model	Dimensions (mm)

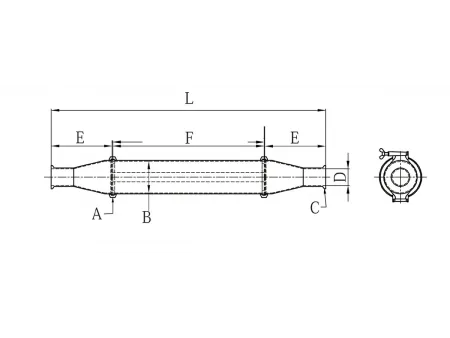

Model	A	ØB	C	ØD	E	F	L
SW-E10	2S	47.8	1S	23	60	226	350
SW-E10-1	2S	47.8	1S	23	55	226	340
SW-E15	2S	47.8	1.5S	35.7	60	226	350
SW-E20	2.5S	59.5	2S	47.8	110	226	450

Model	Dimensions (mm)

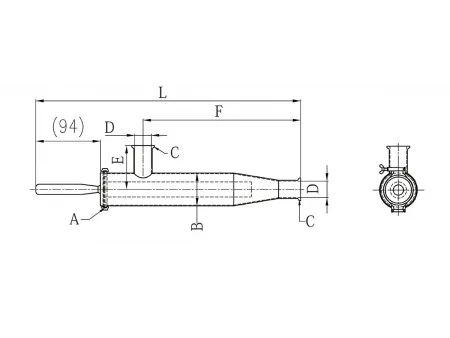

Model	A	ØB	C	ØD	E	F	L
SW-E10	2S	47.8	1S	23	55	200	(359)
SW-E15	2S	47.8	1.5S	35.7	70	200	(359)
SW-E20	2.5S	59.5	2S	47.8	82	250	(416)

Features

A variety of magnetic liquid traps have been developed to meet different operational conditions, offering versatile solutions for diverse applications.
The magnetic strength is adjustable: the standard version (N style) reaches up to 12,000 GS, while the easy-to-clean version (E style) provides 8,000 GS.
Standard working temperature is ≤80°C, but the magnetic separation system can be customized to operate at temperatures up to 350°C for specific requirements.

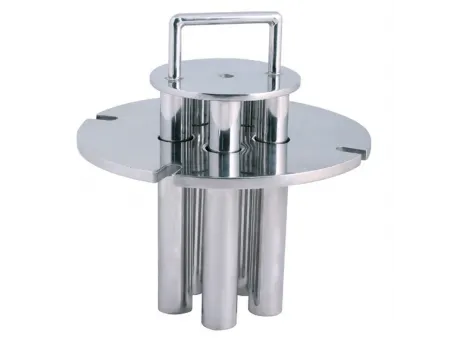

Magnetic components are designed for easy installation, removal, and cleaning, with options such as flanges, clamps, bolt plates, or quick-release fasteners for convenience.
Available materials for the separator include 304 or 316L stainless steel, ensuring long-lasting durability and corrosion resistance.
The magnetic liquid trap design optimizes iron removal efficiency while ensuring that the material flow remains uninterrupted, ensuring smooth processing.
Pressure requirements or other specialized needs can be customized to meet specific customer demands.
