MGTS Flame Retardant Fiber Optic Cable
Description
MGTS flame retardant fiber optic cable is self-supporting optical fiber cable. It is mainly installed in the way of outdoor aerial laying. This fiber optic cable is widely applied in outdoor optical fiber communication and transmission. Ingo can provide different fiber types whose fiber count ranges from 2 to 144. The bandwidth of this fiber optic cable can be 1000Mhz.Km while it is at the wavelength of 1300nm.
Standard

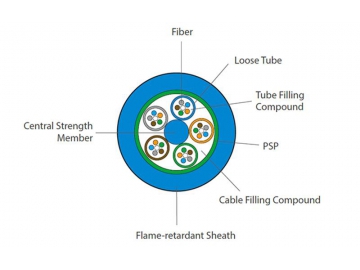

The structure of MGTS flame retardant fiber optic cable is to combine the fiber optic whose radius is 250μm inside the loose tube which is made of high modulus materials. The loose tube is filled with a waterproof compound. In the center of the cable core is a metal-strengthening core which is sometimes sheathed with PE for cable with particular fiber cores. The loose tube (and fillers) strands the central strength member to form a compact and round cable core. The waterproof fillers fill up the gap inside the cable core. The double-sided PSP is longitudinally wrapped and sheathed with flame retardant materials to form the cable.
| Cable type (increase by 2 fibers) | Fiber count | Tubes | Fillers | Cable diameter (mm) | Cable weight (kg/km) | Tensile strength long/short term (N) | Crush resistance long/short term (N/100mm) | Bending radius dynamic/static (mm) |
| MGTS 2-6 | 2-6 | 1 | 4 | 9.2 | 80 | 600/1000 | 300/1000 | 10D/20D |
| MGTS 8-12 | 8-12 | 2 | 3 | 9.2 | 80 | 600/1000 | 300/1000 | 10D/20D |
| MGTS 14-18 | 14-18 | 3 | 2 | 9.2 | 80 | 600/1000 | 300/1000 | 10D/20D |
| MGTS 20-24 | 20-24 | 4 | 1 | 9.2 | 80 | 600/1000 | 300/1000 | 10D/20D |
| MGTS 26-30 | 26-30 | 5 | 0 | 9.7 | 97 | 1000/3000 | 300/1000 | 10D/20D |
| MGTS 32-36 | 32-36 | 6 | 0 | 9.7 | 97 | 1000/3000 | 300/1000 | 10D/20D |
| MGTS 38-48 | 38-48 | 4 | 1 | 10.5 | 109 | 1000/3000 | 300/1000 | 10D/20D |
| MGTS 50-60 | 50-60 | 5 | 0 | 10.5 | 109 | 1000/3000 | 300/1000 | 10D/20D |
| MGTS 62-72 | 62-72 | 6 | 0 | 11.5 | 126 | 1000/3000 | 300/1000 | 10D/20D |
| MGTS 74-84 | 74-84 | 7 | 1 | 13.2 | 153 | 1000/3000 | 300/1000 | 10D/20D |
| MGTS 86-96 | 86-96 | 8 | 0 | 13.2 | 153 | 1000/3000 | 300/1000 | 10D/20D |
| MGTS 98-108 | 98-108 | 9 | 1 | 14.6 | 182 | 1000/3000 | 300/1000 | 10D/20D |
| MGTS 110-120 | 110-120 | 10 | 0 | 14.6 | 182 | 1000/3000 | 300/1000 | 10D/20D |
| MGTS 122-132 | 122-132 | 11 | 1 | 16.5 | 221 | 1000/3000 | 300/1000 | 10D/20D |
| MGTS 134-144 | 134-144 | 12 | 0 | 16.5 | 221 | 1000/3000 | 300/1000 | 10D/20D |
| storage/operating temperature: -40℃ to +70℃ | ||||||||
| G652 | G655 | 50/125UM | 62.5/125UM | ||
| attenuation (+20℃) | @850nm | ≤0.30db/km | ≤3.3db/km | ||
| @1300nm | ≤1.0db/km | ≤1.0db/km | |||
| @1310nm | ≤0.36db/km | ≤0.40db/km | |||
| @1550nm | ≤0.22db/km | ≤0.23db/km | |||
| bandwidth (A grade) | @850nm | ≥500MHz.km | ≥200MHz.km | ||
| @1300nm | ≥1000MHz.km | ≥600MHz.km | |||
| numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| cable cut-off wavelength (λcc ) | ≤1260nm | ≤1450nm | |||
| Application: self-supporting aerial laying | |||||
- The special material of the cable jacket has great flame retardant performance.
- The MGTS flame retardant fiber optic cable has great mechanical behavior and temperature characteristics.
- The material of the loose tube has great hydrolysis resistance and higher strength.
- A kind of special grease fills up the loose tube to provide the fiber optic with critical protection.
- The MGTS flame retardant fiber optic cable has great compressive resistance and softness.
- The especially designed and close-knit cable structure of MGTS flame retardant fiber optic cable can prevent the casing from retracting effectively.
We adopt the following measures to ensure the waterproof performance of the optical cables
- Using the single steel wire as central strength member.
- Filling up the loose tube with special waterproof compound.
- 100% cable core filling
- Using double-sided PSP to improve the moisture resistance of the optical cables.
