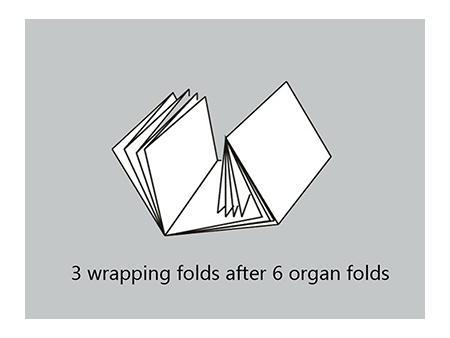

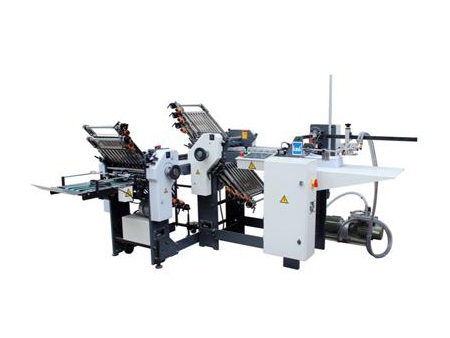

KMD’s 360T buckle folder (6 buckles and 4 buckles): This equipment carries out a 6 time parallel folding through 6 buckles, and the tail buckles can be installed in a parallel or vertical manner to achieve 4 times horizontal parallel folds or 4 times vertical parallel folding. The folder can handle half folding, double parallel folding, roll folding and more.

Parameters
  • Max feeding sheet size (W*L): 470*750mm
  • Min feeding sheet size (W*L): 50*100mm
  • Sheet range: 40-157g
  • Max folding roller speed: 180m/min
  • Max. height of paper heap: 500mm
  • Machine power: 3.75kw
  • Machine netweight: 800kg
  • Overall dimension (L*W*H): 4000*1100*1415mm
