6×4 Concrete Mixer

Request a Quote

Website: http://heavytrucks-en.com/2-2-1-6-4-concrete-mixer.html

CONSTRUCTION TRUCKS

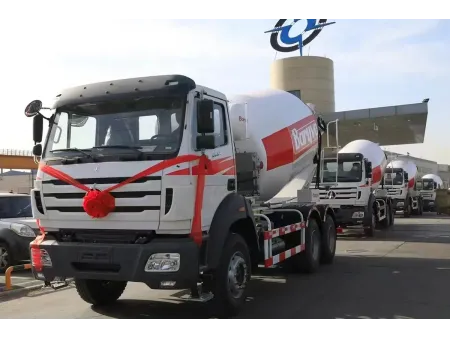

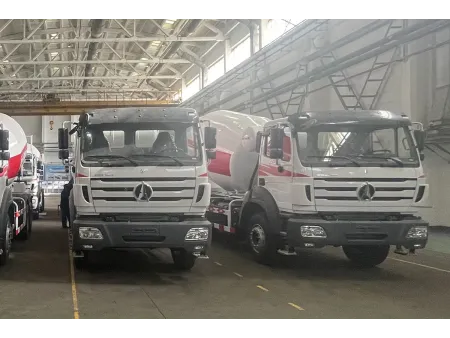

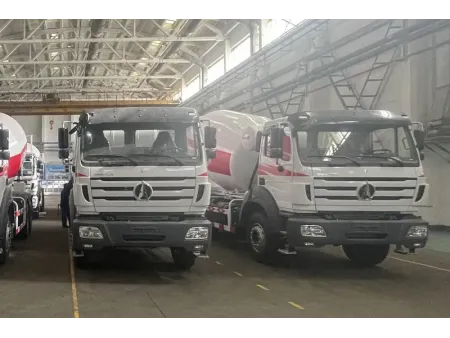

This 6×4 concrete mixer truck is equipped with a 340 HP engine, a 9-speed transmission, a dual-reduction rear axle, and a 10 m³ mixing drum. Powered by a Weichai engine with a maximum output of 430 HP at 1900 rpm, it delivers strong performance for various road conditions and gradients.

Applications

This 6×4 transit mixer truck is suitable for nearly all construction scenarios that require on-site pouring of ready-mixed concrete. It is particularly well-suited for projects located in urban areas, along major transportation routes, or in any setting where a consistent, high-quality, and efficient concrete supply is essential.

Engine power 340 HP / 2200 rpm,
430 HP / 1900 rpm
Total vehicle weight 15,500 kg
Drum capacity 8-10 m³
Emission rating Euro II, Euro III

Dimensional Drawing

Specifications

Model	2634B	2643B
Driving Type	6×4
Cab	Cab Exterior Metal bumper Three-step ladder Exterior sun visor Sun roof (manual) Rear view mirror (manual adjustment) Cab Interior Air-sprung suspension driver's seat Cooling and heating air conditioner Steering wheel (with adjustable height and angle) Door lock (manual) Radio (with MP3 player) Digital instruments
Engine	Type: WP10.340E32 Version: EURO II Displacement (I): 9,726 Max. Power (HP/rpm): 340/2200 Max. Torque (N.m/rpm): 1250/1400~1600 Cylinder: 6 in-line Engine-Driven Power Take-Off (P.T.O.): yes	Type: WP12.430N Version: EURO III Displacement (I): 11,596 Max. Power (HP/rpm): 430/1900 Max. Torque (N.m/rpm): 2050/1000~1400 Cylinder: 6 in-line Engine-Driven Power Take-Off (P.T.O.): yes
Transmission	12JS160T / 15.53-1 Gears: 12 speed forward Synchromesh or Constant Mesh: Synchromesh Transfer Box: not available Power Take-Off (P.T.O.): not available	16JSDX220T / 16.693-1 Gears: 16 speed forward Synchromesh or Constant Mesh: Synchromesh Transfer Box: not available Power Take-Off (P.T.O.): not available
Steering System	8098 Recirculating ball steering gear, hydraulic booster
Clutch	Ø430mm single dry friction disc, diaphragm spring, pushing type
Fuel Tank	400L (iron)
Front Axle	7500kg, non-drive steering
Middle & Rear Axle	13000kg 13000kg, double reduction driving axle, differential lock
Suspension	Front 13pcs / Rear 13pcs hard parabolic spring
Brakes	Service: dual circuit air brakes Emergency/Parking: spring potential brake Auxiliary: EVB (optional ABS)
Electrical Equipment	Alternator: 70Amp Starter Motor: 5.5kW Batteries: 2×12V – 135AH
Performance Data	Gradeability@GVM: 30% Max. Geared Road Speed: 80km/h Final Drive Ratio: 5.263 (optional 4.769, 5.921)	Gradeability@GVM: 30% Max. Geared Road Speed: 80km/h Final Drive Ratio: 4.769 (optional 5.263, 5.921)
Tyre	Size and Ply Rating: 12.00R20-18PR Steel Rim
Upper Body	Effective drum volume of 8-10m³
Dimensions	Wheel Base (WB): 3800 1450mm Overall Length (OL): 8500mm Overall Width (OW): 2500mm Overall Height (OH): 3670mm Front Overhang (FOH): 1435mm Rear Overhang (ROH): 1600mm	Wheel Base (WB): 3800 1450mm Overall Length (OL): 8500mm Overall Width (OW): 2500mm Overall Height (OH): 3670mm Front Overhang (FOH): 1515mm Rear Overhang (ROH): 1600mm
Total Vehicle Weight	15500kg

*The above data is subject to the actual product.
