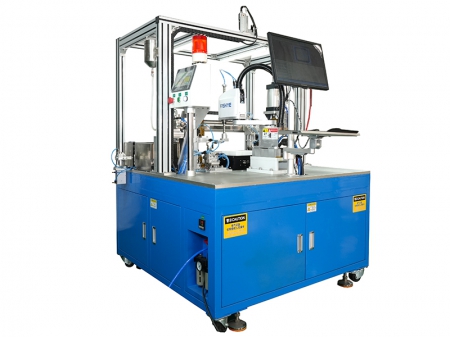

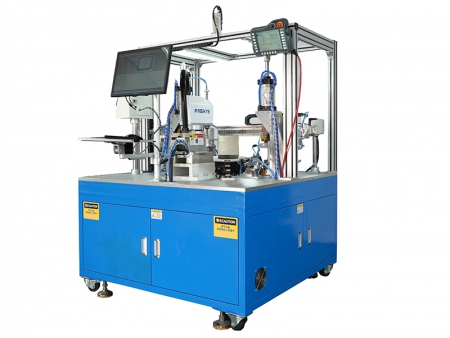

Automatic Acetate Film & Metal Tipping Machine
Request a Quote
Automatic acetate film & metal aglet tipping machine supports tipping operations for cords with lengths ranging from 1,000 to 5,000 mm. It is suitable for both acetate film and metal aglet tipping. With a production capacity of up to 600 pieces per hour, the machine is equipped with servo and stepper motor systems to ensure stable and efficient performance, making it ideal for large-scale production of shoelaces and various cord products.
Parameters
| Metal tip diameter | 3.8 / 4.2 / 5.0 mm |
| Rope length | 1,000–5,000 mm |
| Power consumption | 2 kWh |
| Efficiency | Approx. 600 pcs/h (depending on size and material; longer products reduce speed) |
| Drive system | Motor & pneumatic |
| Air pressure | 0.6 MPa |
| Machine size | 1300 × 1300 × 1800 mm |
| Machine weight | 1000 kg |
| Motor system | Servo motor stepper motor |
| Working environment | Normal temperature (wind-protected environment) |
| Machine power | 2 kW |
| Motor power | 1.5 kW |
| Voltage | 220V |
