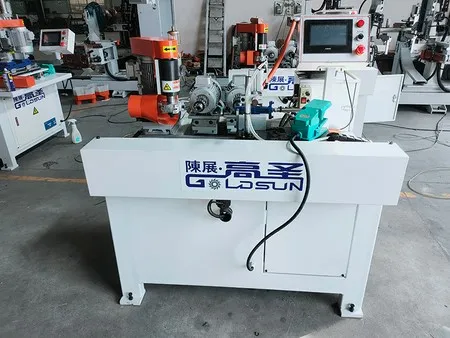

Automatic woodworking machine for chamfering, drilling and installing threaded inserts into wooden table and chair legs

This woodworking equipment is ideal for chamfering, drilling, and threaded insert installation on furniture components for tables and chair legs. Its automated process enhances multiple tasks into a single operation, significantly increasing production efficiency. With a user-friendly interface and a well-engineered design, these wood processing machines allow operators to perform complex tasks with ease, reducing manual effort while ensuring precise results.

Features
  • Chamfering, drilling, and threading completed in one operation, enhancing overall productivity.
  • Efficient design suitable for furniture production, particularly for components such as wooden legs.
  • Simple to operate, requiring minimal training while maintaining accuracy across repetitive tasks.
Specifications
Chamfering motor 2.2kW×1
Drilling motor 0.75kW×1
Threaded insert installation motor 0.75kW×1
Servo motor for table moving 400W×1
Loading & unloading method Manual
Threaded insert M6×17-22 or M8×17-22
