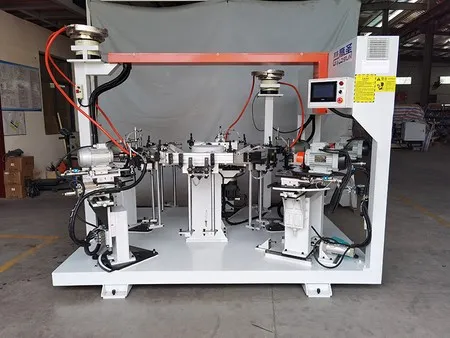

Woodworking machine for drilling and installing threaded inserts into wooden chair backs

Manufacturing durable chair backs begins with efficient drilling and threaded insert installation. The rotary table system in this machine combines both operations into a seamless workflow, eliminating the need for repositioning molds and reducing manual errors. Its design ensures consistent quality across each unit, making it ideal for high-volume furniture production.

Features
  • Combines drilling and threading in one process, effectively lowering labor costs.
  • Reduces the need for manual handling between operations, improving safety and workflow efficiency.
  • The rotary table system allows for higher throughput, processing 5-6 units per minute, greatly increasing production capacity.
Specifications
Servo motor for rotary platform 750W×1 (equipped with rotating platform)
Drilling motor 1.5kW×2
Threaded insert installation motor 750kW×4
Threaded insert 6mm or 8mm×17-20
Nut M6×15-17 (hole spacing of drilling head 17×17×17)
Production speed Approximately 5-6pcs/min
Min. center distance 300mm
Angle of inclination Up to 33°
