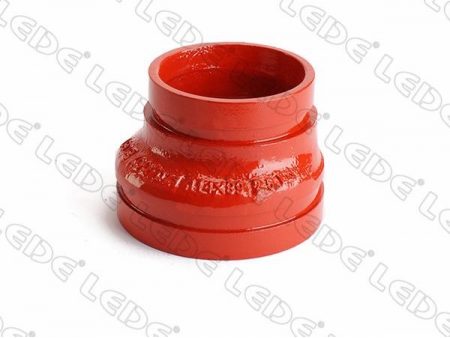

Grooved Pipe Eccentric Reducer

Grooved Pipe Eccentric Reducer
Grooved Pipe Eccentric Reducer
Grooved Pipe Eccentric Reducer
Grooved Pipe Eccentric Reducer
Grooved Pipe Eccentric Reducer
Grooved Pipe Eccentric Reducer
Grooved Pipe Eccentric Reducer
Request a Quote

Product Introduction:
Ductile iron (ASTM A536)
Pressure: 300 PSI water working pressure
Testing: in accordance with ANSI / AWWA C110 / A21.10 standards where applicable.
Approvals: Underwriters Laboratories listed and Factory Mutual approved.
Standards: ANSI / AWWA C110 / A21.10 where applicable.
Coating: Seal coated (asphaltic material) inside and out, NSF61 approved
Coating options: epoxy, paint, dacromet, hot-dip galvanized.
UL Listed, FM approval

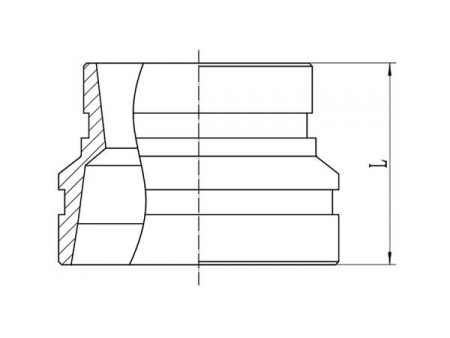

Dimension Drawing
Technical Data
Grooved Eccdentric Reducer XGQT072
Nominal size mm/in Pipe O.D mm/in Dimensions L(mm) Working Pressure
psi
100×80 114.3×88.9 80 300
4×3 4.5×3.5
125×100 139.7×114.3 102
5×4 5.5×4.5
150×100 165.1×114.3 102
6×4 6.5×4.5
150×125 165.1×139.7 102
6×5 6.5×5.5
200×100 219.1×114.3 127
8×4 8.625×4.5
200×150 219.1×165.1 127
8×6 8.625×6.5
250×150 273×165.1 152
10×6 10.75×6.5
250×200 273×219.1 152
10×8 10.75×8.625
Threaded Eccentric Reducer XGQT071
Nominal size mm/in Pipe O.D mm/in Dimensions L(mm) Working Pressure (psi)
100×65 114.3×76.1 80 230
4x21/2 4.5×3
150×65 165.1×76.1 102
6x21/2 6.5×3
200×65 219.1×76.1 127
8x21/2 8.625×3

LEDE company design and manufacture grooved piping system jointing fittings, is a leading China grooved pipe eccentric reducer manufacturer and supplier, provide pipe jointing and flow control products of fire protection system and water work system. There are different sizes of eccentric reducer fittings for grooved piping system, made in accordance with UL, CE, ISO certificates, etc. Engineered with complete automation equipment and manufacturing expertise, LEDE company provides quality ductile iron pipe reducer as well as custom firefighting and water supply solutions based on the client needs.
