HFFS packaging machine for small pouches and 3/4-side sealed sachets
  • Bag width

    50-110mm, 70-150mm, 85-180mm

  • Bag length

    50-130mm, 100-200mm, 100-225mm

  • Packing speed

    45-80 bags/min, 40-80 bags/min, 40-80 bags/min

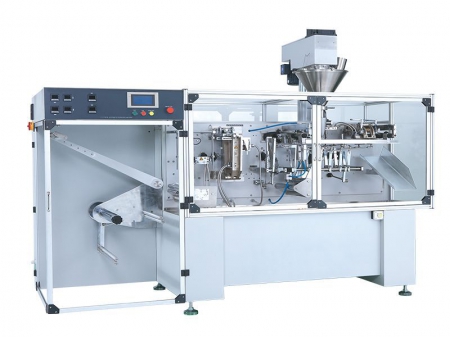

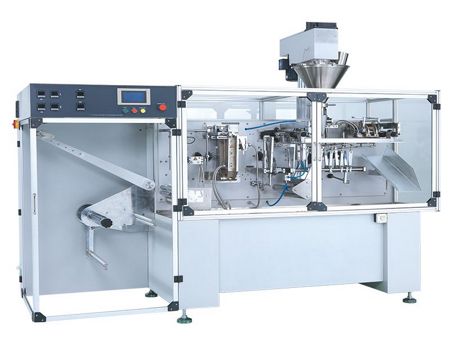

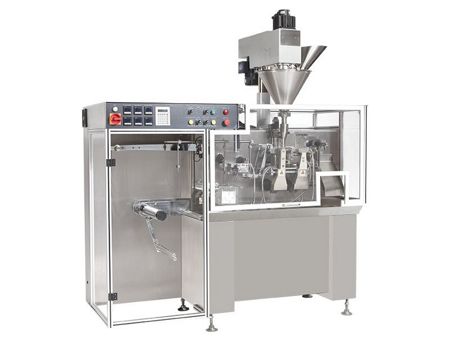

The DC-228 series horizontal small pouch packaging machine is the ideal choice for efficiently and quickly packaging small products. At up to 40-80 pouches per minute, it provides a fast and versatile choice for filling needs with its wide array of filling methods such as screw, measuring cup, magnetic pump and piston. It's capable of using multiple different kinds of materials, while also meets a wide range of international sealing standards.

This horizontal small pouch packaging machine features easy learning and efficient controls, allowing for quick and convenient specification adjustments. Thanks to its intuitive packaging process, operators can choose between two different sealing forms (3-side and 4-side). The results are products with excellent pattern and visually-appealing designs, strong seals and longer shelf life.


Specifications
Model DC-228-110 DC-228-150 DC-228-180
Bag width 50-110mm 70-150mm 85-180mm
Bag length 50-130mm 100-200mm 100-225mm
Filling volume 2.5-60g (ml) 5-280g (ml) 5-400g (ml)
Packing speed (depending on products and packaging materials) 45-80 bags/min 40-80 bags/min 40-80 bags/min
Applicable products Liquids, viscous liquids, powders, granules
Packaging material PET/AL/PE, NY/PE, PET/VMPET/PE, PET/PE, NY/VMPET/PE, OPP/AL/PE, OPP/VMPET/PE, etc.
Features
  • This PLC-controlled sealing machine offers remarkable accuracy in both bag size and measurement.
  • It's designed to maximize uptime and productivity, making it the perfect choice for 24/7 continuous use.
