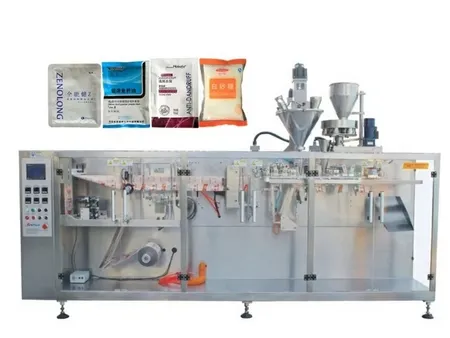

DXDF160
Horizontal packaging machine for different products
- 40 to 55 Bags Per Minute
- 80 to 200 mm Bag Length
- 60 to 160 mm Pouch Width
Horizontal Form Fill & Seal Machine
Request a Quote
Pharmaceutical Machinery
Packaging EquipmentThe horizontal form fill & seal machine is designed to efficiently package a wide range of products. It operates by horizontally feeding the product into the packaging material, followed by forming, filling, and sealing processes in a seamless sequence. This packaging machine is versatile and suitable for industries such as food, pharmaceuticals, and cosmetics, ensuring reliable and efficient packaging solutions.
Applications
- Food industry: Extensively used for packaging solid food items like biscuits and chocolates, as well as snacks and frozen foods
- Consumer goods: Suitable for packaging items like soap and small stationery products
- Industrial applications: Used for packaging small components and parts in the industrial sector
Key features
- Equipped with advanced control systems, it supports automated feeding, packaging, and inspection. High-end models can integrate with other production line equipment, enabling full production automation and smart operations.
- Its modular design allows for the replacement of specific components, such as formers or filling units, to accommodate different products and packaging materials. This reduces equipment upgrade costs during product updates or packaging changes.
Specifications
| Min. Bag Size | 60×80mm |
| Max. Bag Size | 160×200mm |
| Max. Packaging Range | 400ml |
| Packaging Speed | 40-55 bags/min |
| Machine Dimensions (L×W×H) | 2990×970×1500mm |
| Machine Weight | 1500kg |
| Ambient Temperature | -10 to ＋55℃ |
| Relative Humidity | Below 85% (non condensation) |
| Power Supply | AC 380V 50Hz |
| Input Power | 4.0kW |
| Air Pressure | 0.5MPa |
| Compressed Air | 0.6m³/min |
