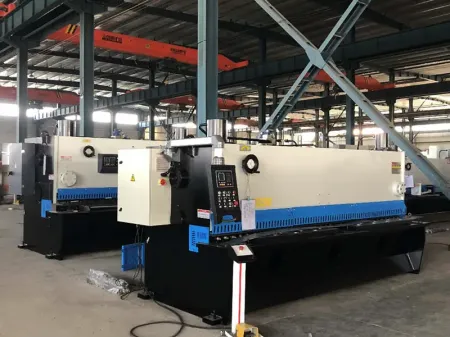

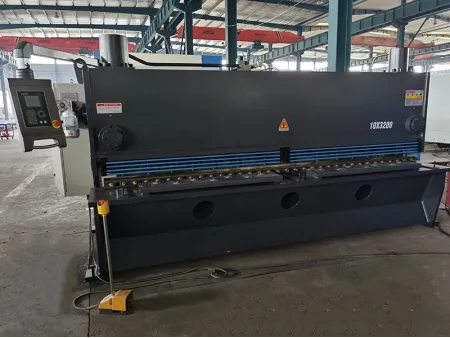

Sheet metal shearing machine suitable for cutting thick metals with minimal distortion

Sheet metal shearing machine suitable for cutting thick metals with minimal distortion

Key Specs

  • Cutting thickness: 6mm-20mm
  • Cutting length: 2500mm-6000mm

This hydraulic guillotine shear is essential in metalworking and fabrication, leveraging a hydraulic system for efficient cutting of metal workpieces. It is particularly effective for thicker or harder materials, utilizing a hydraulic cylinder to move the blade vertically and complete the cutting process.

  • Features
  • Specifications
  • Configurations
Applications

This hydraulic guillotine shear is ideal for shearing metal sheets, rails, steel frames in construction, electrical cabinet shells, and precision electronic products, among other uses.

Features
  • Stable Guillotine Structure: Optimized for enhanced stability and performance.
  • Adjustable Blade Gap: Quickly adapts to different material thicknesses, improving operational flexibility.
  • Reduced Shear Angle: Minimizes distortion and enhances cut quality.
  • Precision Backgauge: Easily fine-tuned for accurate measurements and control.
  • Adjustable Stroke: Optimizes processing efficiency for varied production demands.
Specifications
Model Cutting thickness (mm) Cutting length (mm) Stroke (n/min) Backgauge (mm) Cutting angle (°) Throat depth (mm) Main motor (kW)
QC11k-6x2500 6 2500 14 600 0.5°-1.5° 120 7.5
QC11K-6x3200 6 3200 12 600 0.5°-1.5° 120 7.5
QC11K-6x4000 6 4000 10 600 0.5°-1.5° 120 7.5
QC11K-6x5000 6 5000 8 600 0.5°-1.5° 120 7.5
QC11K-6x6000 6 6000 8 600 0.5°-1.5° 120 7.5
QC11K-8x2500 8 2500 14 600 0.5°-1.5° 120 7.5
QC11K-8x3200 8 3200 12 600 0.5°-1.5° 120 7.5
QC11K-8x4000 8 4000 10 600 0.5°-1.5° 120 7.5
QC11K-8x5000 8 5000 7 600 0.5°-2° 120 15
QC11K-8x6000 8 6000 7 600 0.5°-2° 120 15
QC11K-10x2500 10 2500 10 600 0.5°-2.5° 120 15
QC11K-10x3200 10 3200 8 600 0.5°-2.5° 120 15
QC11K-10x4000 10 4000 6 600 0.5°-2.5° 120 15
QC11K-10x5000 10 5000 5 800 0.5°-2.5° 120 15
QC11K-12x2500 12 2500 10 600 0.5°-2.5° 120 15
QC11K-12x3200 12 3200 8 600 0.5°-2.5° 120 15
QC11K-12x4000 12 4000 6 600 0.5°-2.5° 120 15
QC11K-12x5000 12 5000 5 600 0.5°-2.5° 120 18.5
QC11K-12x6000 12 6000 4 800 0.5°-2.5° 120 18.5
QC11K-16x2500 16 2500 8 600 0.5°-2.5° 120 15
QC11K-16x3200 16 3200 7 600 0.5°-2.5° 120 15
QC11K-16x4000 16 4000 6 600 0.5°-2.5° 120 15
QC11K-16x5000 16 5000 5 600 0.5°-3° 120 22
QC11K-16x6000 16 6000 4 800 0.5°-3° 120 37
QC11K-20x2500 20 2500 6 600 0.5°-3° 120 22
QC11K-20x3200 20 3200 5 600 0.5°-3° 120 30
QC11K-20x4000 20 4000 4 600 0.5°-3° 120 37
QC11K-20x5000 20 5000 4 600 0.5°-3° 120 37
QC11K-20x6000 20 6000 4 1000 0.5°-3° 120 55
Configurations

Standard Configurations

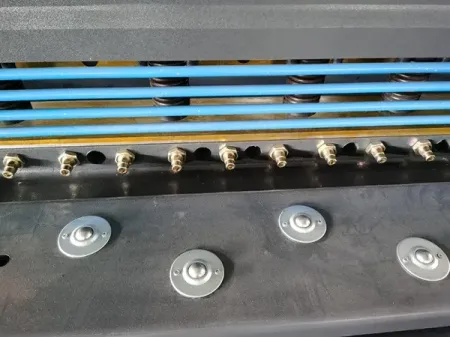

  • Worktable with ball transfers and guard bars

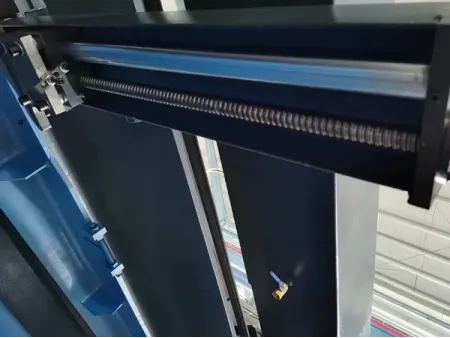

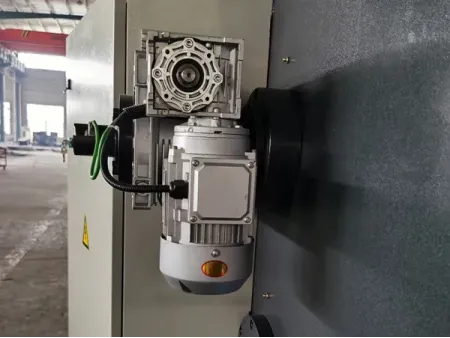

  • Backgauge operated by an AC servo motor and T-type screw

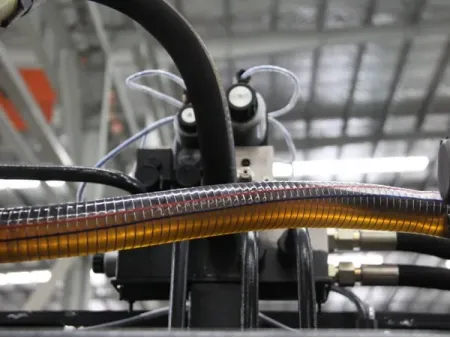

  • Rexroth integrated hydraulic manifold
  • Adjustable blade gap

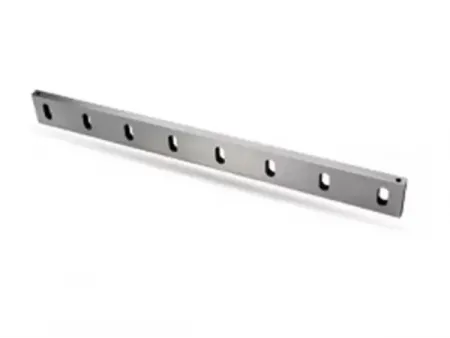

  • Upper and lower blades feature four cutting sides

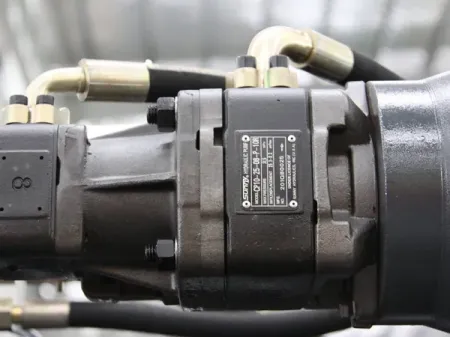

  • American Sunny hydraulic pump

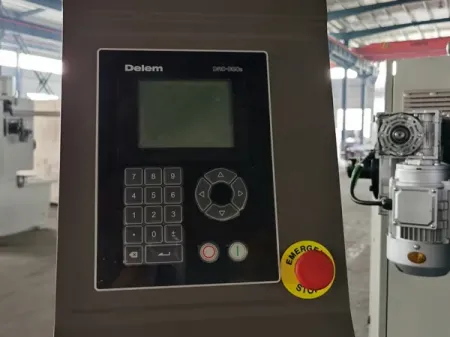

  • Delem DAC360T Control System provides accurate backgauge positioning with CNC functionality

Optional Configurations

Pneumatic rear support
Supports the handling of sheets in machines up to the size of 8x4000.

Extended Front Support
Standard support length is 900mm, customizable to accommodate larger sheets.

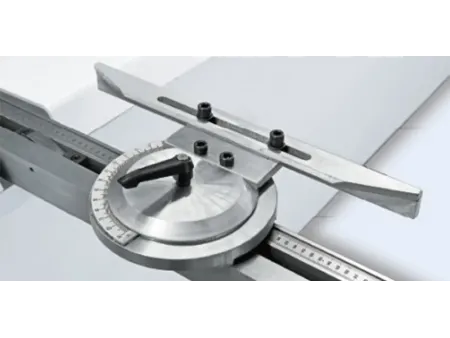

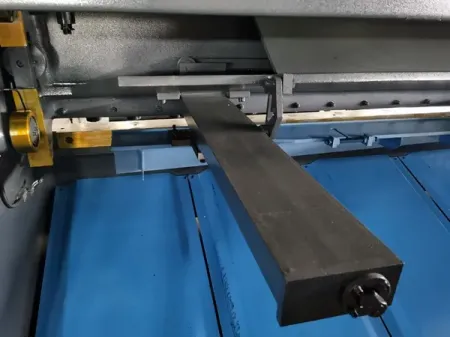

Angle positioning device
Facilitates precise angle cuts and can be adjusted along the support arm for optimal positioning.

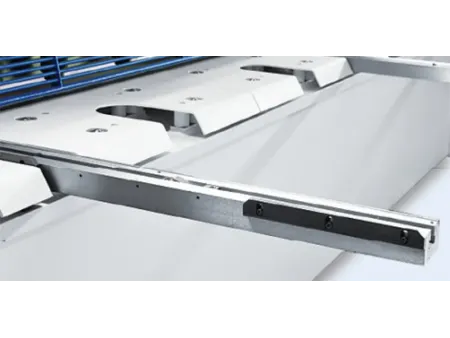

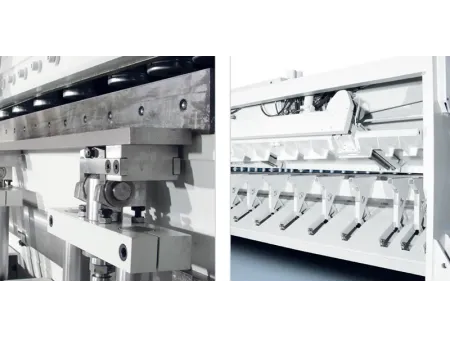

Anti-twist device
Prevents deformation of narrow-cut materials during operation.

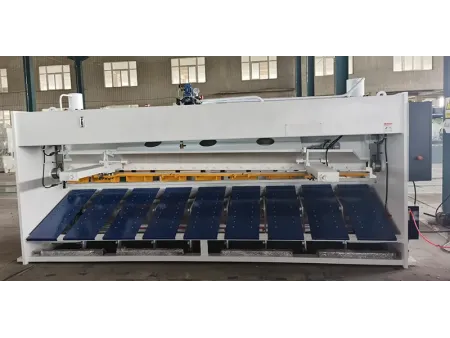

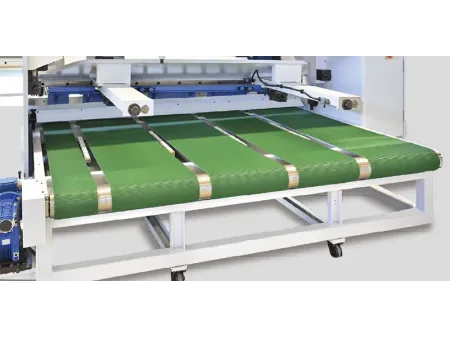

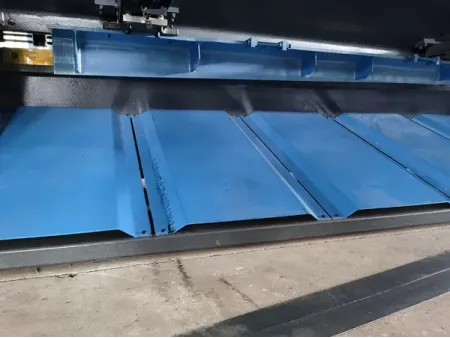

Rear discharge system

  • Sheets are output beneath the machine, creating a safer work environment for operators.
  • Polyurethane conveyor belt reduces surface scratches and operational noise on metal plates.
  • Features a positioning-type back gauge to aid in the accurate placement of sheet materials during shearing processes.
  • Equipped with casters for easy relocation and convenient maintenance access.
  • Designed for machines with capacities up to 8x4000.

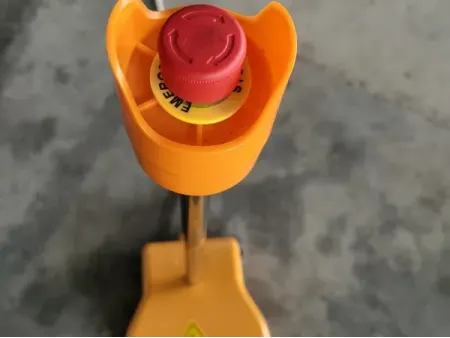

Other Components
