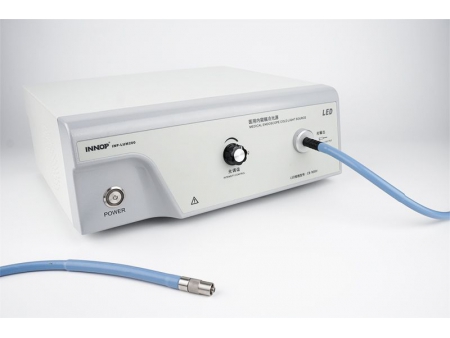

Medical LED Cold Light Source, INP-LUM200

Request a Quote

View All: http://endoscope-cameras.com/2-1-medical-led-cold-light-source.html

for Endoscope Camera System

This cold light source has a 6000K light temperature, with the light beamed being very natural. It gives out pure and vivid light with excellent clarity, which helps physicians carry out surgeries smoothly. It can be connected to our INP-200 endoscope camera.

Features

This cold light source is equipped with outstanding imported 80W light, with the light temperature reaching 6000K. The brightness can be adjusted through potentiometer;

The lifespan reaches 5000 hours. Backup bulbs are prepared to ensure the light will keep shining;

This light source has a 10 mm port to be connected to other lights for even better light performance;

Two protection measures have been adopted for the power and sleep button;

The energy cost is relatively small and the camera body will generate little heat during operation (<41°C);

The cold light source only makes a noise lower than 55dB;

This medical imaging camera is driven by an AC220V power supply and can work in places with the temperature ranging from -10°C to 50°C. It is also equipped with power surge protector with 500V clamping voltage and can avoid harms caused by static electricity, with the protection of contact electricity discharge reaching 8 kV and the air discharge reaching 15 kV;

Able to be connected with different endoscope camera in different departments while avoid causing interference to high-frequency electric knife;

Specifications

Light type: LED

LED power: 80W

Luminous flux: 180lm

Brightness: ≥5000LX

Spectral range: 400~700nm

Voltage: AC220V 50HZ

Input power: ≤150VA

Operation conditions: ambient temperature 5℃~ 40℃, relative humidity 30%~80%, atmospheric pressure 760hpa~1060hpa

Storage conditions: ambient temperature -20℃~ 55℃, relative humidity ≤80%, atmospheric pressure 760hpa~1060hpa

Light output spot diameter: Ø10mm, single spot

Cooling method: air cooling

Fuse: F2A250V

Rated voltage: AC220V 50HZ

Noise: ≤60dB(A)

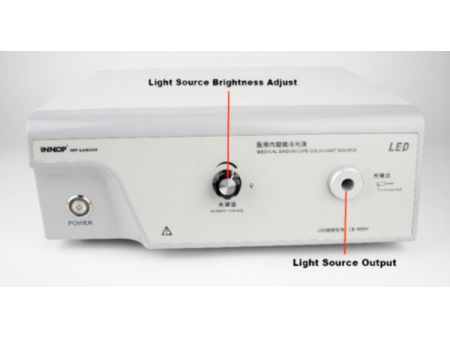

Light intensity control: potentiometer tuning control

Standards: GB9706, YY0505, GB/T14710, CE, ROHS

Color temperature: 3000K~7000K, default 6000K

CRI: ≥90, default 93

IR blocking: ≤6mW/Im, default 3.6mW/Im

Red/green radiation ratio: allowable tolerance ±20%, default 58%

Net weight: 4.6kg

Dimensions: 380mm×300mm×115mm
