for Endoscope Camera System

This cold light source is equipped with outstanding imported 80W light, with the light temperature reaching 5700K;

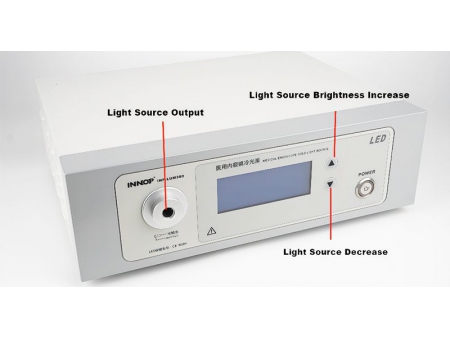

It is equipped with a LED screen, through which light brightness can be adjusted;
The lifespan reaches 5000 hours, which are ensured by several protection measures to keep the light shining;
This light source has a 10 mm port to be connected to other lights for even better light performance;
Two protection measures have been adopted for the power and sleep button;
The energy cost is relatively small and the camera body will generate little heat during operation (<41°C);
The cold light source only makes a noise lower than 55dB;
This medical imaging camera is driven by an AC220V power supply and can work in places with the temperature ranging from 5°C to 40°C. It is also equipped with power surge protector with 500V clamping voltage and can avoid harms caused by static electricity, with the protection of contact electricity discharge reaching 8 kV and the air discharge reaching 15 kV;
Able to be connected with different endoscope camera in different departments while avoid causing interference to high-frequency electric knife;

Light type: LED
LED power: 80W
Luminous flux: 180lm
Brightness: ≥5000LX
Spectral range: 400~700nm
Voltage: AC220V 50HZ
Input power: ≤150VA
Operation conditions: ambient temperature 5℃~ 40℃, relative humidity 30%~80%, atmospheric pressure 760hpa~1060hpa
Storage conditions: ambient temperature -20℃~ 55℃, relative humidity ≤80%, atmospheric pressure 760hpa~1060hpa
Light output spot diameter: Ø10mm, single spot
Cooling method: air cooling
Fuse: F2A250V
Rated voltage: AC220V 50HZ
Noise: ≤60dB(A)
Light intensity control: LCD display button control, 0~100 adjustable
Standards: GB9706, YY0505, GB/T14710, CE, ROHS
Color temperature: 3000K~7000K, default 5700K
CRI: ≥90, default 91
IR blocking: ≤6mW/Im, default 3.6mW/Im
Red/green radiation ratio: allowable tolerance ±20%, default 54%
Blue/green radiation ratio: allowable tolerance ±20%, default 64%
Net weight: 4.6kg
Dimensions: 380mm×300mm×115mm
