Request a Quote
Applications

The typical application of nonwoven coating / laminating will be textile-like diaper backsheet, table cloth, nonwoven bag, medical gown, medical drapes, hospital products etc.

Technical Data
  • Product width: from 1200mm to 3500mm, or upon request
  • Coating resin: LDPE, LLDPE, EVA, etc.
  • Substrate: nonwoven fabric
  • Diameter of unwinding: 1200mm max.
  • Diameter of winding: 1000mm max.
  • Max. Line Speed: 200m/min

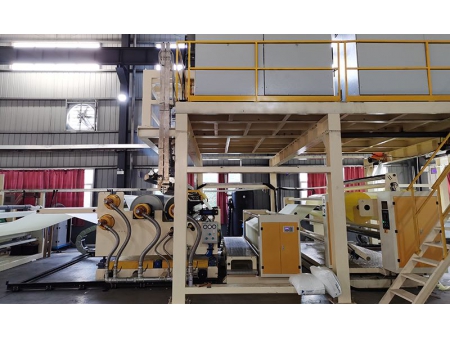

Nonwoven extrusion coating laminating line is equipped with high-performance extruder, chrome-plated chill roll, and fully-auto unwinder and winder. The extruder coats PE polymer materials onto a substrate of nonwoven fabric and makes nonwoven composite without using any glue.

The line can also be equipped with 2 or 3 extruders, to make sandwich laminating or double-sided coating. The final product thus have all the properties from both nonwoven fabric and PE polymer, for example, textile feeling, water proof etc.

Non-woven laminated fabric is also called PE lamination composited non-woven fabric, which is a new type of fabric. The so-called laminating non-woven fabric is a non-woven fabric coated with a layer of LDPE film, which is generally a product formed by coating a non-woven fabric with PE resins heated at a high temperature into a hot-melt state and cooling it. Or a layer of PE material is added to the PP non-woven fabric; it can also be interpreted as a color PE film, which is bonded to the non-woven fabric to achieve rich colors. PE laminated composite non-woven fabrics have a better hand feel than composite non-woven fabrics, and the texture to the touch is more realistic.
