Hydraulic Impact Hammer

Small Size (Max. Ram Weight 10000KG)

YC-3/YC-4/YC-5/YC-8/YC-9/Y-10

Piling hammer

Our small size hydraulic impact hammers are perfect for limited spaces or headroom, with hammer weights ranging from 3000 kg to 10000 kg, delivering strong impact energy for piling. Customization is available to meet your specific requirements. This equipment uses the Trelleborg sealing solutions for superior cylinder sealing, ensuring stable performance.

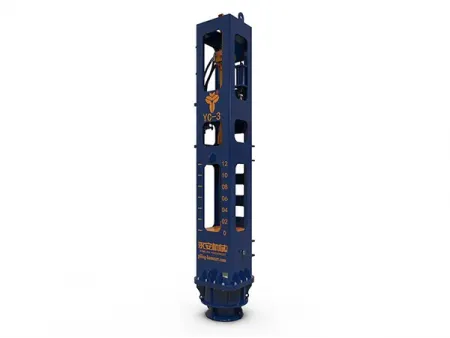

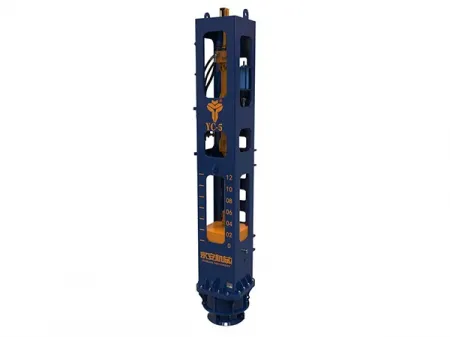

Model	YC-3
Unit	Metric
Impact Energy	36 kNm
Working Stroke	1200 mm
Impact Frequency	80/35 bpm
Ram Weight	3000 kg
Dimensions (L×W×H)	4845×960×1075 mm
Weight	5800 kg
Recommended Power Pack	200P

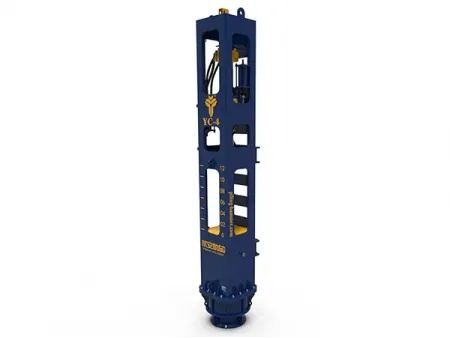

Model	YC-4
Unit	Metric
Impact Energy	48 kNm
Working Stroke	1200 mm
Impact Frequency	100/40 bpm
Ram Weight	4000 kg
Dimensions (L×W×H)	4285×900×1060 mm
Weight	8500 kg
Recommended Power Pack	200P

Model	YC-5
Unit	Metric
Impact Energy	60 kNm
Working Stroke	1200 mm
Impact Frequency	80/35 bpm
Ram Weight	5000 kg
Dimensions (L×W×H)	5425×960×1075 mm
Weight	8500 kg
Recommended Power Pack	200P

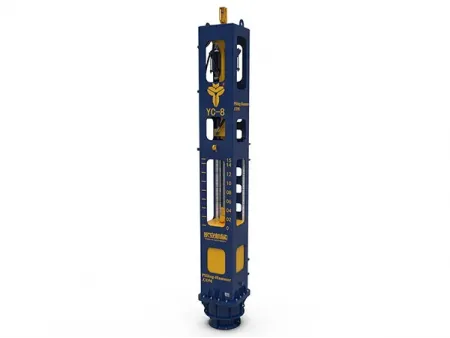

Model	YC-8
Unit	Metric
Impact Energy	120 kNm
Working Stroke	1500 mm
Impact Frequency	70/30 bpm
Ram Weight	8000 kg
Dimensions (L×W×H)	6800×1075×1185 mm
Weight	12500 kg
Recommended Power Pack	300P

Model	YC-9
Unit	Metric
Impact Energy	135 kNm
Working Stroke	1500 mm
Impact Frequency	100/30 bpm
Ram Weight	9000 kg
Dimensions (L×W×H)	6350×976×1190 mm
Weight	13200 kg
Recommended Power Pack	300P

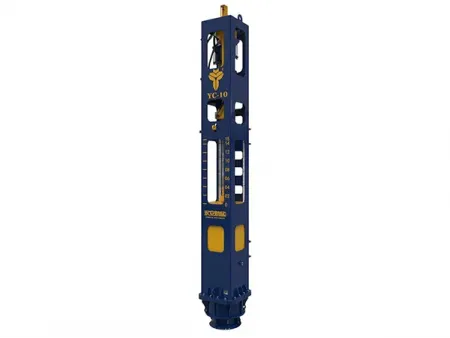

Model	Y-10
Unit	Metric
Impact Energy	150 kNm
Working Stroke	1500 mm
Impact Frequency	100/30 bpm
Ram Weight	10000 kg
Dimensions (L×W×H)	6580×976×1190 mm
Weight	14600 kg
Recommended Power Pack	300P

Mounting Options

Operated with cranes: impact hammers are suspended by with cranes for piling.
Installed on a guide frame for precise operation.
Mounted on the lead system of an excavator for flexible and efficient piling.

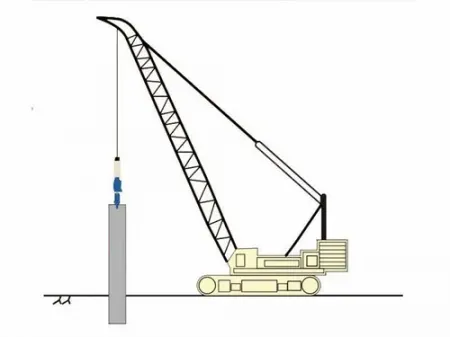

Crawler Crane

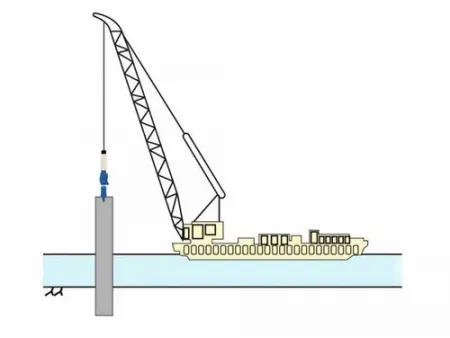

Floating Crane

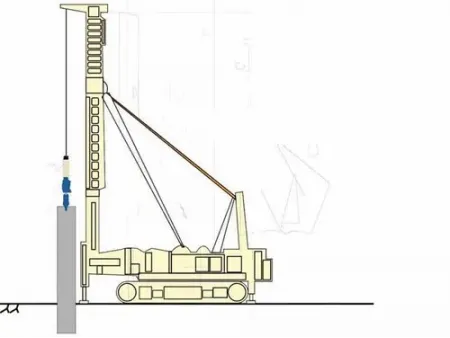

Crawler Rig Lead Supported

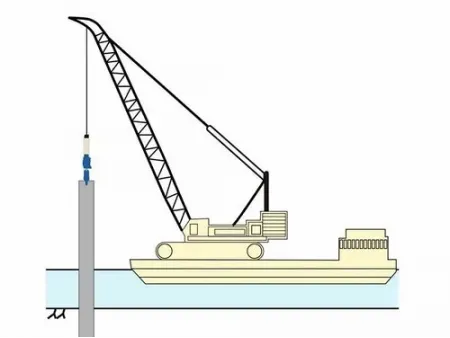

Crane-Fitted Barge

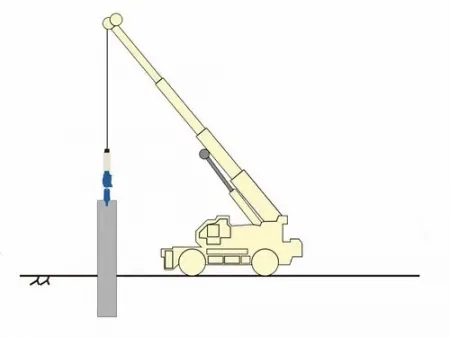

Rough Terrain Crane

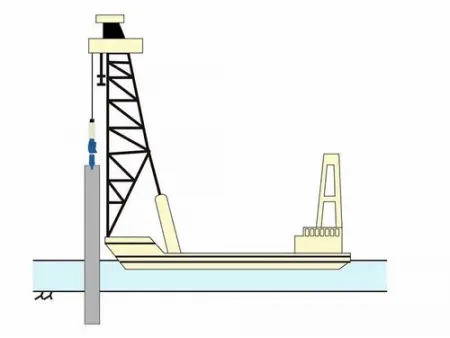

Piling Barge

Applications

Civil Infrastructure Construction
Sea Bridge Construction

Suitable Pile Types

Steel Tubular Piles
Sheet Piles
Concrete piles

Parts & Projects

Qualified Ram

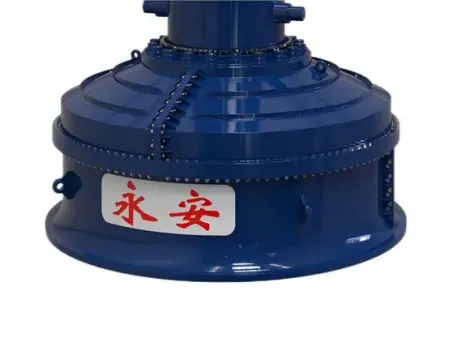

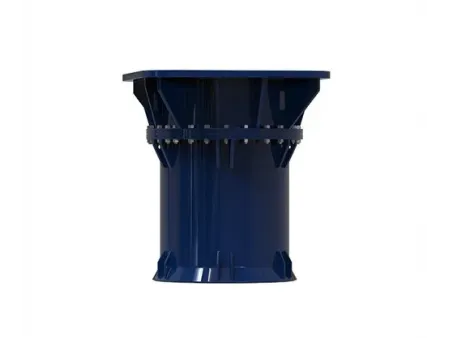

Customized Pile Cap
Customized Pile Cap
Customized Pile Cap
Electric Remote Control System
Durable Buffer Parts
Double-Layer Hydraulic Cylinder Design
Various Installament Methods
Various Installament Methods
Various Installament Methods
Seawater Cooling System
Efficient Energy Teansfer & Plie Driving Efficiency

Related Case Studies

Construction Projects using YC-5 Hydraulic Impact Hammer

Hongzhou Bridge Construction in Nanchang City

Project time: September, 2022
Pile type: tubular piles
Diameter: 830 mm
Thickness: 12 mm
Pile length: 36 m (driving depth: 6 m)
Application: trestle bridge piles
Soil type: mud and clay
Pile driving time: 5-10 min

Qingdao Jiaodong International Airport Construction

Pile type: tubular piles
Diameter: 529 mm
Pile length: 25 m
Application: port cofferdam
Soil type: silt clay

Construction in Zhongjiang County, Deyang, Sichuan

Pile type: cast-in-place concrete piles

Construdtion in Hengqin, Zhuhai

Pile type: concrete piles (diameter: 400 mm)
Driving depth: 18 m
Soil type: mud and silt clay

Construction Projects using YC-8 Hydraulic Impact Hammer

Polytech Construction in Macau

Pile type: Larssen steel sheet piles
Thickness: 60 mm
Driving depth: 26 m
Soil type: sand and cobblestones

Expressway Construction in Yunyang District

Pile type: tubular piles
Diameter: 800 mm
Pile length: 30 m (driving depth: 15-25 m)
Application: trestle bridge platform
Soil type: mudstone
