Automatic 8 Wire Two-Sided Terminal Crimping Machine
Efficient wire harness production relies on efficient wire processing machinery capable of managing multiple tasks simultaneously. Our two-sided terminal crimping equipment processes up to 8 wires in one operation, handling cutting, stripping, insulation application, crimping, and tinning with precision. Its automation minimizes manual intervention, ensuring consistent results for high-demand industries.
- Approx. 8,000 wires per hour
| General | Model | |
|---|---|---|
| Dimensions (L×W×H) | 2000×1000×1550mm | |
| Weight | Approx. 520kg | |
| Power Supply | AC220V 50Hz | |
| Power | 4kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Crimping Force | 2T | |
| Functions | Crimping Capacity | Approx. 8000 wires/hr (depending on the wire length) |

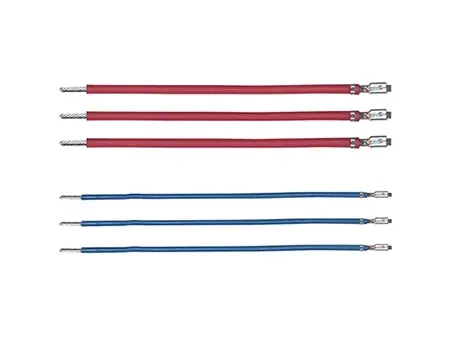

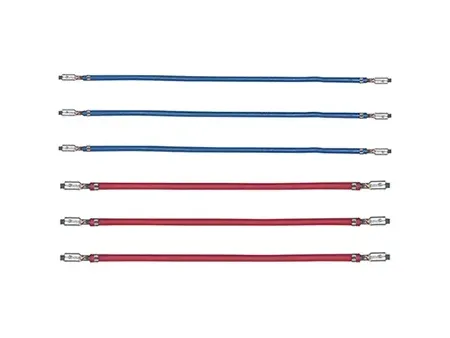

| Wire Processing | Wire cutting, One-sided full stripping, Two-sided full stripping, Two-sided half stripping, One-sided crimping, Two-sided crimping | |
| Control System | PLC control, servo motor | |
| Die Change | OTP crimping applicator for 8 wires, easy and quick die changing | |
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | |
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | |
| Operation Control | Wire feeding, cutting, stripping and movement are controlled via touch screen, with full servo control | |
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure |
| Application Range | Cutting Length | 35-1000mm (customizable) |
| Stripping Length | Front: 1-7mm Rear: 1-9mm | |
| Wire & Cable Type | Electric wire, solid core cable (high temperature cable, Teflon insulated cable, silicone insulated cable, halogen-free cable) (AWG30#-AWG18#) | |
| Max. Number of Pin | 8pin |
-
High-precision terminal crimping and wire stripping achieved through a dual-screw linear movement system, utilizing Taiwan PBI screws for enhanced reliability.
-
Robotic clamping ensures stable wire lengths and precise alignment during processing, maintaining consistency throughout production.
-
Real-time error detection system with alerts displayed on a user-friendly touch screen, simplifying troubleshooting and improving operational efficiency.
