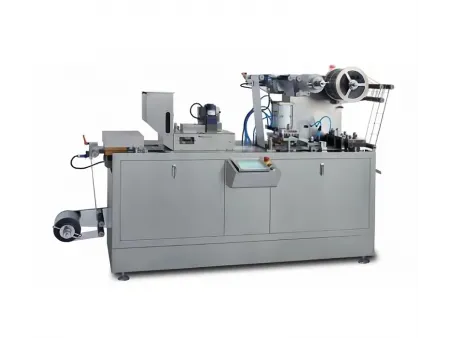

LQ-DPB

Blister forming and heat sealing system for packaging pharmaceutical, food and health care products

  • Our blister packaging machine is an advanced system designed for efficient blister forming and heat sealing. Ideal for packaging pharmaceuticals, food, and health care products, this machine meets the specific needs of hospital dosage rooms, laboratories, health care product manufacturers, and medium to small pharmacy factories. It is compact, easy to operate, and versatile, capable of handling both ALU-ALU and ALU-PVC packaging. Whether packaging medicine, food, or electronic parts, this machine offers adaptability and precision.

    Components
    • Machine with safe cover (Optional)
    • Workshop
    • Traction

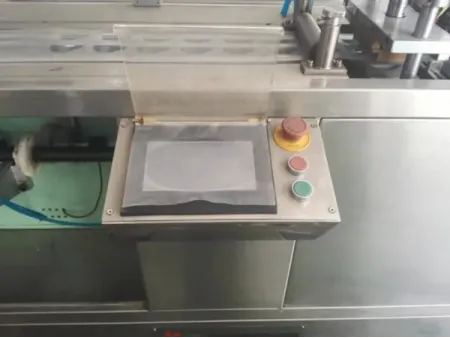

    • Control panel

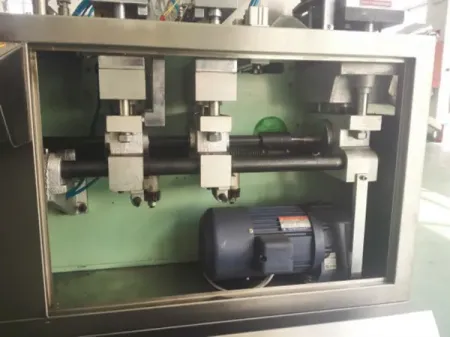

    • Main motor

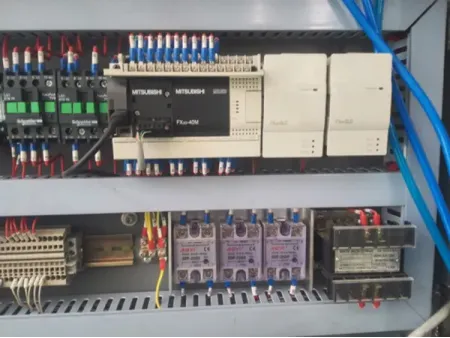

    • Circuit
    • Parts

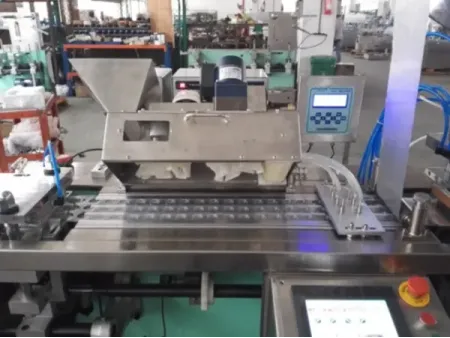

    • Universal feeder

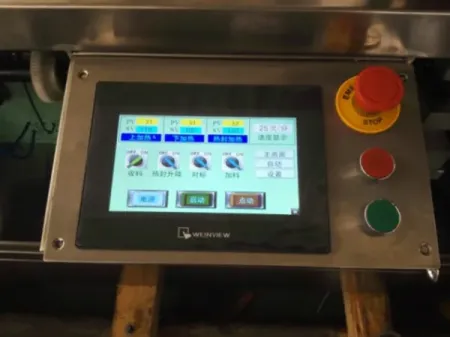

    • Human machine interface

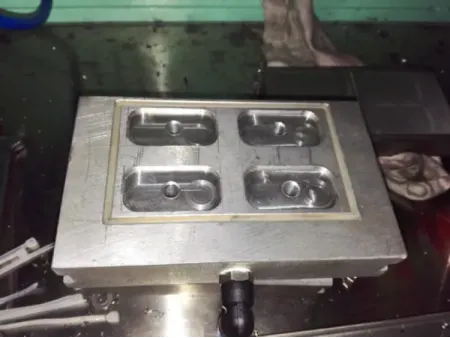

    • Down forming and sealing molding
    • Up forming molding

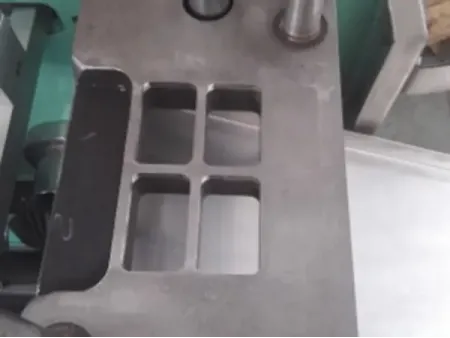

    • Punching molding
    Specifications
    Model LQ-DPB100 LQ-DPB140 LQ-DPB-250
    Punching Frequency 8-35 times/min 8-35 times/min 6-60 times/min
    Capacity 2100 blisters/h 4200 blisters/h 9600-12000 blisters/h
    (Standard 80×57mm) (Standard 80×57mm) (Standard 80×57mm)
    Max. Forming Area & Depth 105×60×20mm 130×110×20mm 250×110×10mm-250×200×50mm
    Stroke Range 20-70mm 20-120mm 20-120mm
    Standard Blister 80×57mm, 80×35mm, 95×65mm, 105×42mm, 105×55mm (can be designed as user's requirements) 80×57mm (can be designed as user's requirements)
    Air Supply 0.5Mpa-0.7Mpa 0.15m³/min 0.6-0.8Mpa 0.15m³/min
    Total Power 380V or 220V/50Hz/1.8kW 380V or 220V/50Hz/3.2kW 380V or 220V/50Hz/6kW
    Main Motor Power 0.55kW 0.75kW 1.5kW
    PVC Hard Pieces (0.15-0.5)×115mm (0.15-0.5)×140mm (0.15-0.5)×260mm
    PTP Aluminum Foil (0.02-0.035)×115mm (0.02-0.035)×140mm (0.02-0.35)×260mm
    Dialysis Paper (50-100)g/m2×115mm (50-100)g/m2×140mm (50-100)g/m2×260mm
    Mould Cooling Tap water or recycled water
    Overall Dimensions (L×W×H) 1600×500×1200mm 2300×560×1410mm 3000×720×1600mm
    Weight 600kg 1000kg 1700kg
    Features
    • The blister packaging machine’s base is made from cast metal, processed using specialized machine-tool and subjected to thermal treatments to prevent any distortion.
    • Each box section is processed with professional equipment to ensure high precision and excellent interchangeability.
    • Forming, sealing, and slitting parts can be freely adjusted on the track with both triangle and flat strings for flexible configurations.
    • Incorporates a parallel-axes bevel gear wheel in the reducer to maintain tight and smooth operations in the chain or strap mechanism.
    • The mold positioning system uses male pins for quick and easy changes, allowing for packaging of various sizes and shapes on the same machine. It can also accommodate liquid packaging with an additional liquid filling device.
    • Features an advanced sealing mechanism that uses a combination of multi-step air cylinders and double heat sealing. This ensures reliable sealing with a reticulate pattern that enhances the integrity and appearance of the blister packaging.
