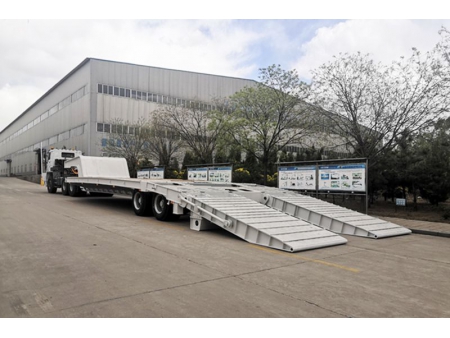

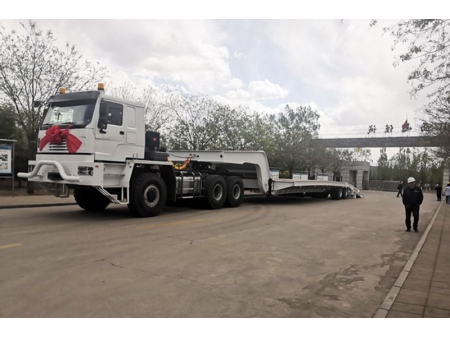

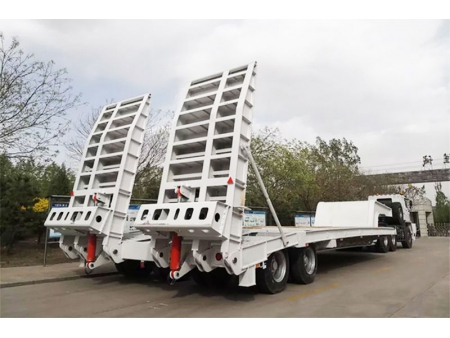

Mining Lowboy Trailer
Request a Quote
Low bed truck trailer for transporting heavy loads
JC-Hydraulic mining lowboy trailers have two types, fuel-powered and electricity-powered. The fuel-powered mining lowboy trailer can bear 60-120 tons of loads and is mainly used as a welding platform for large structure components or as a component transport vehicle. The electric mining lowboy trailer can bear 5-30 tons of loads and is mainly used to transport large assemblies within workshops for the convenience of equipment disassembly, repairing and assembly throughout all processes.
Features
Lowboy trailer of 60 tons
- Maximum Loading Weight: 60,000kg;
- Overall Weight: 78,000kg;
- Bed Size: 12,000 (L) *5,000 (W) * 780 (H) mm;
- Overall Dimensions: 13,600 (L) *5,000 (W) * 1,800 (H) mm
Lowboy trailer of 120 tons
- Maximum Loading Weight: 120,000kg;
- Overall Weight: 145,000kg;
- Bed Size: 12,000 (L) *5,000 (W) * 780 (H) mm;
- Overall Dimensions: 13,600 (L) *5,000 (W) * 1,800 (H) mm
Electric lowboy trailer of 30 tons:
- Maximum Loading Weight: 30,000kg;
- Overall Weight: 35,500kg;
- Steering Angle: ≤45°;
- Minimum Turning Radius: 8,000mm;
- Battery: D480Ah/48VDC;
- Remote Control Range: 60,000mm;
- Bed Size: 4,000 (L) *2,200 (W);
- Overall Dimensions: 4,000 (L) *2,200 (W) * 650 (H) mm
