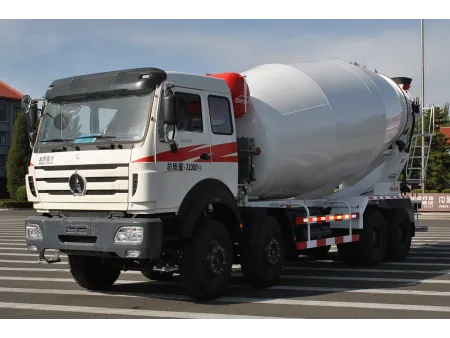

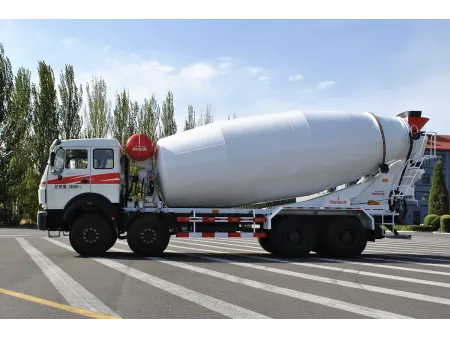

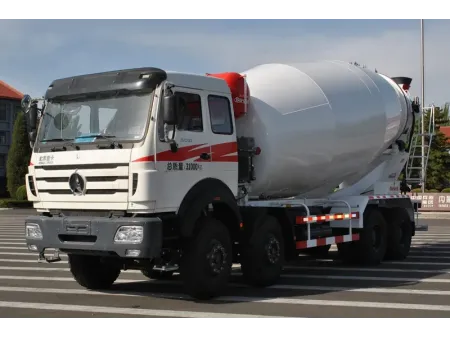

8×4 Concrete Mixer

Request a Quote

Website: http://heavytrucks-en.com/2-2-2-8-4-concrete-mixer.html

CONSTRUCTION TRUCKS

The 8×4 concrete mixer truck is built for demanding construction environments, featuring a 380 HP engine, 9-speed transmission, dual-stage reduction rear axles, and a large 12m³ drum. With its powerful drivetrain and high-capacity mixing drum, this construction truck is engineered to navigate rugged infrastructure routes, steep mining slopes, and muddy rural roads. It ensures reliable performance across diverse conditions and terrain.

Engine power 380 HP / 2200 rpm,
460 HP / 1900 rpm
Total vehicle weight 15,500 kg
Drum capacity 12–16 m³
Emission rating Euro II, Euro III

Dimensional Drawing

Specifications

Model	3138BZ	3146BZ
Driving Type	8×4
Cab	Cab Exterior Metal bumper Three-step ladder Exterior sun visor Sun roof (manual) Rear view mirror (manual adjustment) Cab Interior Air-sprung suspension driver's seat Cooling and heating air conditioner Steering wheel (with adjustable height and angle) Door lock (manual) Radio (with MP3 player) Digital instruments
Engine	Type: WP10.380E32 Version: EURO II Displacement (I): 9,726 Max. Power (HP/rpm): 380/2200 Max. Torque (N.m/rpm): 1460/1400~1600 Cylinder: 6 in-line Engine-Driven Power Take-Off (P.T.O.): yes	Type: WP12.460N Version: EURO III Displacement (I): 11,596 Max. Power (HP/rpm): 460/1900 Max. Torque (N.m/rpm): 2100/1000~1400 Cylinder: 6 in-line Engine-Driven Power Take-Off (P.T.O.): yes
Transmission	12JS200T / 15.53-1 Gears: 12 speed forward Synchromesh or Constant Mesh: Synchromesh Transfer Box: not available Power Take-Off (P.T.O.): not available	16JSDX220T / 16.693-1 Gears: 16 speed forward Synchromesh or Constant Mesh: Synchromesh Transfer Box: not available Power Take-Off (P.T.O.): not available
Steering System	8098 Recirculating ball steering gear, hydraulic booster
Clutch	Ø430mm single dry friction disc, diaphragm spring, pushing type
Fuel Tank	400L (iron)
Front Axle	7500kg 7500kg, non-drive steering
Middle & Rear Axle	13000kg 13000kg, double reduction driving axle, differential lock
Suspension	Front 12pcs×2 / Rear 13pcs hard parabolic spring
Brakes	Service: dual circuit air brakes Emergency/Parking: spring potential brake Auxiliary: EVB (optional ABS)
Electrical Equipment	Alternator: 70Amp Starter Motor: 5.5kW Batteries: 2×12V – 135AH
Performance Data	Gradeability@GVM: 30% Max. Geared Road Speed: 80km/h Final Drive Ratio: 5.263 (optional 4.769, 5.921)
Tyre	Size and Ply Rating: 12.00R20-18PR Steel Rim
Upper Body	Effective drum volume of 12-16m³
Dimensions	Wheel Base (WB): 1500 3550 1450mm Overall Length (OL): 9800mm Overall Width (OW): 2500mm Overall Height (OH): 3670mm Front Overhang (FOH): 1435mm Rear Overhang (ROH): 1600mm
Total Vehicle Weight	15500kg

*The above data is subject to the actual product.

Applications

This mixer truck is suitable for a wide range of on-site concrete pouring applications, particularly in urban construction, projects near major transportation routes, and any sites requiring high-quality, high-efficiency concrete delivery.
