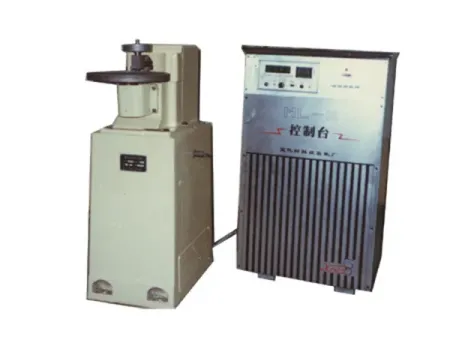

Abrasive Wear Testing Machine
ML-100
Abrasion tester for determining the abrasion resistance of metals by rubbing the specimen against abrasive sand paper
The abrasive wear testing machine is designed to determine the wear resistance of metallic materials by rubbing specimens against abrasive sandpaper. It accurately simulates real service conditions to provide reliable evaluation of material durability.
The metal abrasion tester allows adjustment of key parameters such as load, speed, and test duration, making it adaptable for different materials and operating conditions. This ensures comprehensive testing across a wide range of wear scenarios.
| Test force | 2-100N (1N per unit, 2N for clamping specimen) |
| Rotation speed | 60/120 r/min |
| Specimen feed | 1/2/3/4mm |
| Specimen diameter | 2/3/4mm |
| Counting control range | 0-9999999 (automatic stop at preset number of rotations) |
| Specimen stroke | Scale 10 to 110mm |
| Abrasive sand paper diameter | 260mm |
Suitable for measuring the abrasion resistance of metals in environments where solid particles such as ore, sand, or slurry cause wear. Test results provide valuable data on the durability of various metals and support abrasive wear mechanism research, making it an essential tool for industries involved in mining, construction, and materials development.
