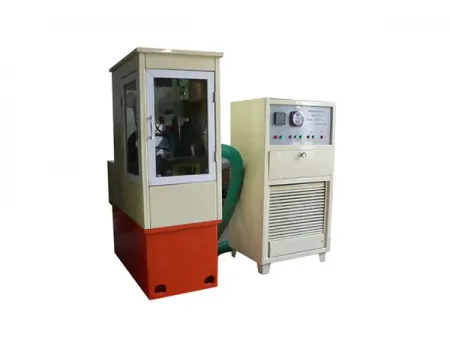

Abrasive Wear Testing Machine
MLD-10
Dynamic load abrasive wear tester for evaluating the wear resistance of metal materials under impact load or non-impact load condition
The dynamic load abrasive wear tester is designed for evaluating the wear resistance of metals under both impact and non-impact load conditions. With multifunctional capabilities, it can simulate a wide range of working environments. Through controlled testing, it provides quantitative measurement of wear caused by different loads and interaction types, supporting in-depth studies of wear mechanisms.
| Hammer weight | 10kg |
| Impact energy | 0-5 joules |
| Free fall height of hammer | 0-50mm |
| Number of impacts | 50/100/150/200 impacts/min |
| Abrasive flow | 0-50 kg/hour |
| Upper specimen | Round specimen: Ø11.28×40mm |
| Square specimen: 10×10×40mm | |
| Round rolling specimen: Ø30×10mm, Ø10×30mm | |
| Lower specimen | Ø50mm |
Suitable for testing the abrasion resistance of metals against both dry and wet abrasives, under conditions with or without impact load, with or without contact, and in lubricated or rolling friction states. It is widely applied in industries such as mining, steel smelting, and construction machinery, where accurate assessment of material wear performance is essential.
