8KW Dual-Axis Wobble Laser Welding Head (with Air-Knife)
LWD08A0
Fiber laser welding head for processing various metals with power ratings of up to 8kW
LWD08A0
Fiber laser welding head for processing various metals with power ratings of up to 8kW
This medium-to-high-power double swing welding head is engineered for demanding industrial applications. Its full-body water-cooling system and proprietary thermal insulation layer provide efficient heat dissipation, ensuring stable, long-duration operation even under heavy loads. The integrated collision protection design enables quick recovery after accidental impacts, reducing downtime and keeping production efficient.
| Model | LWD08A0 |
| Rated Power | 8kW |
| Wavelength | 1080nm±10nm |
| Collimation Length | 75mm/100mm/125mm/150mm |
| Focal Length | 200mm/250mm/300mm |
| Wobble Speed | 4000mm/s |
| Scanning Range | X: 0~5mm / Y: 0~5mm |
| Trajectory Frequency | 1500Hz |
| Weight | 9.2kg |
The double swing fiber laser welding head is designed for up to 8kW mid-to-high power welding tasks. It is suitable for processing various metals such as stainless steel, carbon steel, copper, and aluminum alloys, delivering consistent results for both precision and heavy-duty fabrication.

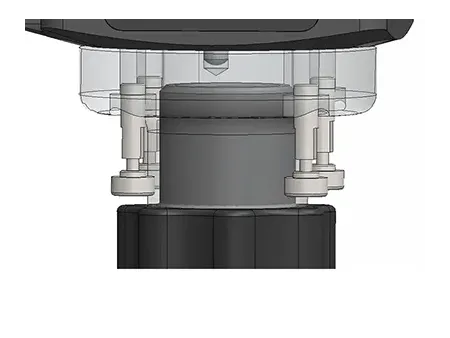

Equipped with coaxial / air-knife blowing assembly, the head withstands accidental impacts without damage, allowing rapid recovery and uninterrupted welding operation

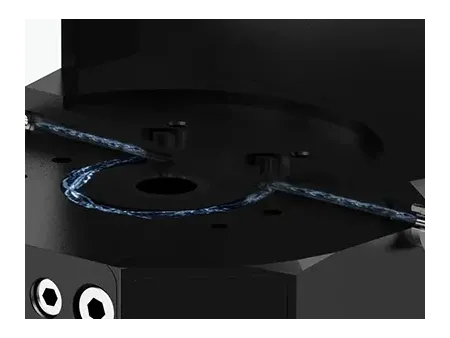

Full-body water-cooling system ensures effective heat dissipation, enabling long-term stable performance under high-power welding conditions
Innovative thermal barrier minimizes the effect of reflected heat, maintaining optimal operating temperatures and extending service life
