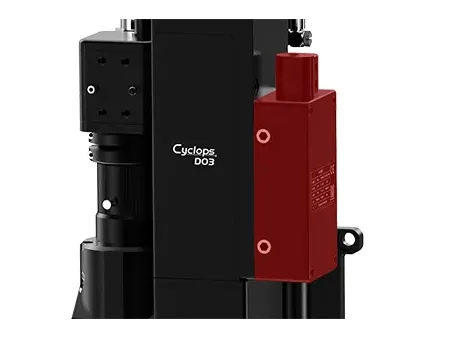

3KW Dual-Axis Wobble Laser Welding Head (with Wire Feeder)
LWD03C0
Fiber laser welding head for processing various metals with power ratings of up to 3kW
LWD03C0
Fiber laser welding head for processing various metals with power ratings of up to 3kW
This low-power double swing fiber welding head integrates a wire feeder, enabling smooth and stable wire delivery during welding. The unique thermal insulation layer ensures effective cooling for long-term stability, while the innovative air knife nozzle prevents spatter buildup and clogging. Together, these features enhance welding efficiency, reduce downtime, and lower maintenance costs.
| Model | LWD03C0 |
| Rated Power | ≤3kW |
| Wavelength | 1080nm±10nm |
| Collimation Length | 100mm |
| Focal Length | 200mm/250mm/300mm |
| Scanning Range | X: 0~5mm / Y: 0~5mm |
| Wobble Speed | 3500mm/s |
| Auxiliary Gas Pressure | ≤1MPa |
| Weight | 2.4kg~3.6kg |
Designed for 3kW low-power welding, the dual-swing wobble head with wire feeder is suitable for processing stainless steel, carbon steel, copper, and aluminum alloys.
Built-in wire feeding module ensures smooth delivery and quick response
Innovative air knife nozzle prevents wire sticking and clogging
Coaxial / air knife blowing assembly safeguards against damage, enabling non-destructive collisions and rapid recovery
Full-body water-cooling system ensures long-term stable performance
Innovative insulation layer minimizes temperature rise and resists reflected heat
| Collimating protective lens | PMD21.5T2SH |
| Focusing protective lens | PMD30T5SH |
| Welding protective lens | PMD30T5SH |
| Collimating lens | DF75D30DS，DF100D30DS |
| Focusing lens | DF125D30DS，SF150D30DS，SF200D30DS，SF250D30DS，SF300D30DS |
| Seal ring | 32×26×3 |
