Laser welding is known for its precision and efficiency in joining different metals. It's ideal for applications that require high accuracy and speed, making it suitable for various components and intricate designs. The multi-axis laser welding machines we manufacture utilize oscillation welding, providing fast speeds, high precision, and excellent beam quality. It is perfect for precision spot welding of various parts and allows for customizable patterns such as straight lines, rectangles, circles, figure eights, and spirals, with a maximum oscillation amplitude of 5mm.
Multi-Axis Laser Welding Machine
Widely used in industries such as mobile phones, communications, steel, microelectronics, high-end digital devices, and medical equipment. It can weld a variety of metals, including carbon steel, alloy steel, and stainless steel. It also excels at welding dissimilar metals like stainless steel to low-carbon steel, 416 stainless steel to 310 stainless steel, 347 stainless steel to HASTELLOY nickel alloy, nickel electrodes to cold-forged steel, copper to nickel, nickel to titanium, copper to titanium, titanium to molybdenum, brass to copper, and low-carbon steel to steel.
![](public/propic/4242/b_3-1-nanosecond-laser-welding-machine_08.webp)
![](public/propic/4242/b_3-1-nanosecond-laser-welding-machine_09.webp)
![](public/propic/4242/b_3-1-nanosecond-laser-welding-machine_10.webp)
![](public/propic/4242/b_3-1-nanosecond-laser-welding-machine_11.webp)
![](public/propic/4242/b_3-1-nanosecond-laser-welding-machine_12.webp)
![](public/propic/4242/b_3-2-multi-axis-laser-welding-machine_08.webp)
![](public/propic/4242/b_3-2-multi-axis-laser-welding-machine_09.webp)
![](public/propic/4242/b_3-2-multi-axis-laser-welding-machine_10.webp)
![](public/propic/4242/b_3-2-multi-axis-laser-welding-machine_11.webp)
![](public/propic/4242/b_3-2-multi-axis-laser-welding-machine_12.webp)
![](public/propic/4242/b_mpro_03b.webp)

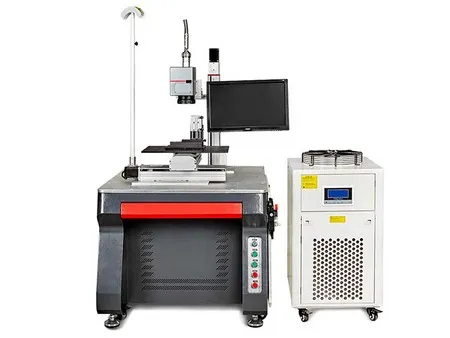

- Includes a laser source, oscillation welding head, industrial control system, cooling system, laser control system, and high-precision modular cabinet.
- Comes with specialized laser welding software based on the Windows platform.
- Welding points or patterns can be directly input and edited within the software or imported from other software for processing.
- The laser welder is designed for stable performance, easy operation, and simple maintenance.
Model | | | |
Laser power | 1000W | 2000W | 3000W |
Laser wavelength | 1064nm | ||
Repeat accuracy | ±0.03mm | ||
Working area | 600*400mm/600*600mm (optional) | ||
Power supply | 200-240VAC,50/60Hz | ||
Machine power | ≤0.6kW | ≤0.6kW | ≤0.8kW |
Cooling method | Water cooling |
![](public/propic/4242/b_3-2-multi-axis-laser-welding-machine_02b.webp)

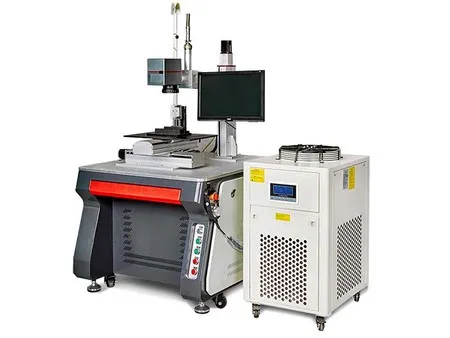

Delivers consistent and stable output, perfect for spot welding, butt welding, overlay welding, and seal welding. It ensures narrow weld widths, minimal heat-affected zones, and high-density, smooth, and visually appealing welds.
![](public/propic/4242/b_3-2-multi-axis-laser-welding-machine_03b.webp)

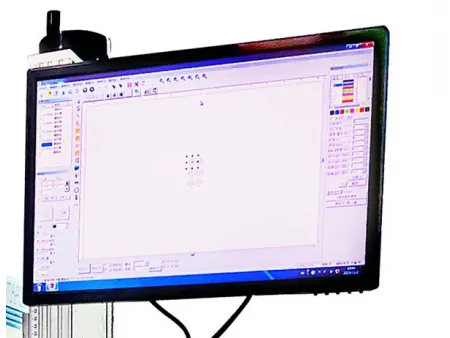

Features an intuitive touch screen interface that is user-friendly. The user friendly display and parameters make it easy to operate and adjust.
![](public/propic/4242/b_3-2-multi-axis-laser-welding-machine_04b.webp)

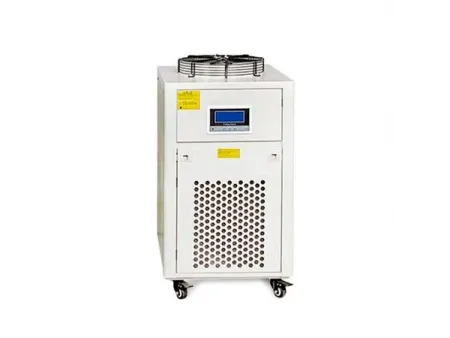

The split-type water chiller automatically cools to the system's set temperature, providing excellent cooling and heat dissipation. This ensures the equipment runs safely and reliably.
