Request a Quote

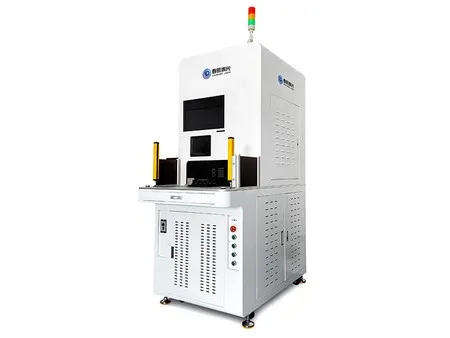

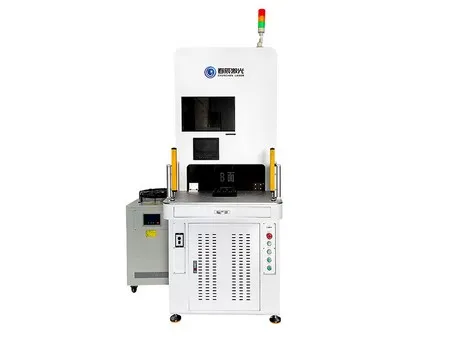

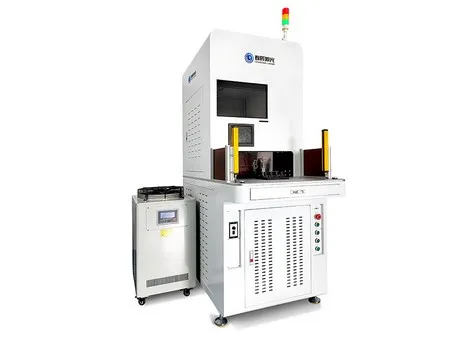

The multi-axis double-station laser welding machine offers a fast and precise solution for joining two different metals. Using oscillation welding, it delivers high-quality beam control, making it perfect for precise spot welding of various components. The double station laser welder allows for customizable welding patterns such as straight lines, rectangles, circles, figure eights, and spirals, with a maximum oscillation amplitude of 5mm.

Standard welding area: 500*400mm
Welding speed: ≤200mm/s
Applications

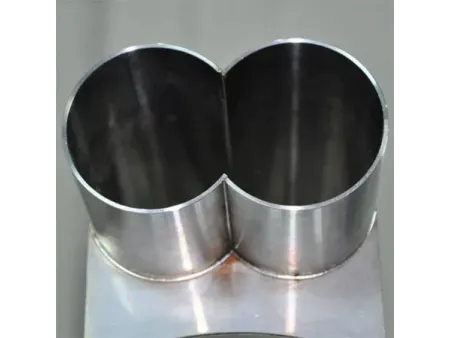

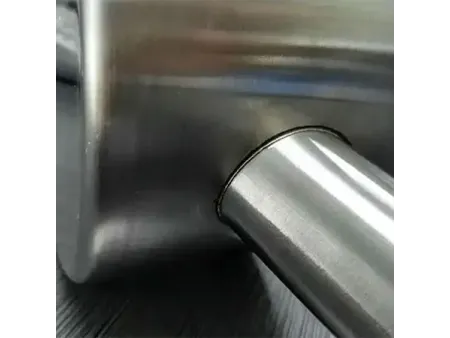

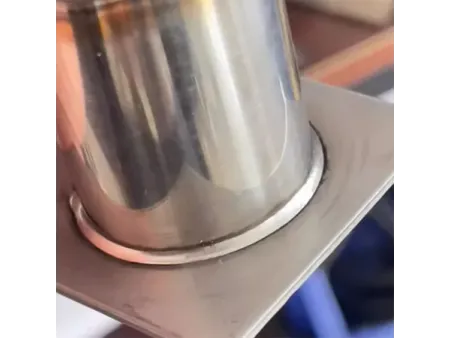

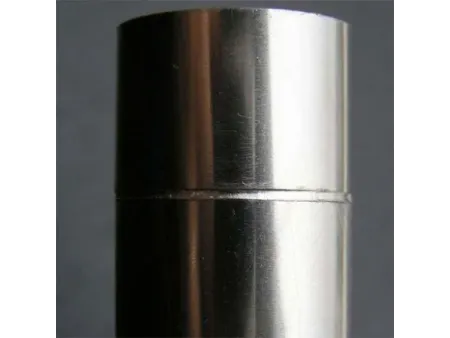

Multi-axis laser welders are suitable for a wide range of industries, including mobile phones, communications, steel, microelectronics, high-end digital components, and medical devices. It can weld various materials, such as carbon steel, alloy steel, and stainless steel. Additionally, it excels at welding different types of metals together, such as stainless steel to low-carbon steel, 416 stainless steel to 310 stainless steel, 347 stainless steel to HASTELLOY nickel alloy, nickel electrodes to cold-forged steel, copper to nickel, nickel to titanium, copper to titanium, titanium to molybdenum, brass to copper, and low-carbon steel to steel.

Features
  • Equipped with a laser source, oscillating welding head, industrial control system, cooling system, laser control system, and a high-precision modular cabinet
  • Specialized laser welding software based on the Windows platform allows users to input and edit welding points or patterns directly within the software or import designs from other software
  • The dual workstations enhance productivity by allowing simultaneous processing of different tasks, ideal for high-volume production environments
  • Ensures accurate and high-quality welding for intricate components and challenging tasks, providing stable performance and easy operation
Specifications
Model CC-HJ1500W
Laser wavelength 1064nm
Laser power 1000W, 1500W, 2000W
Standard welding area 500*400mm
Min. spot size 0.1mm
Min. character English: 0.15*0.15mm
Repeat accuracy 0.005mm
Welding speed ≤200mm/s
Power supply AC220V±10%,50Hz
Total power 3000W
Cooling method Water cooling
Working conditions Temperature: 1-35℃
Humidity: 5%-80% (non-condensing)
Configurations

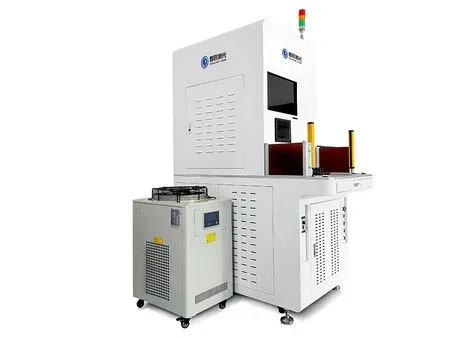

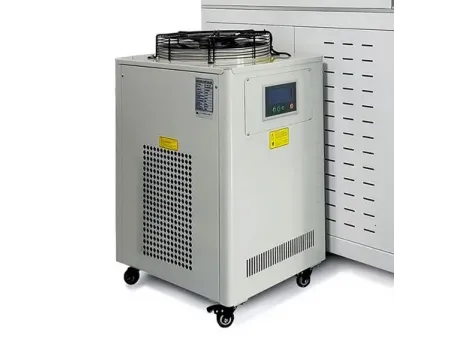

Water Chiller

An industrial-grade water chiller that provides excellent protection for the internal components of the equipment, significantly extending its lifespan

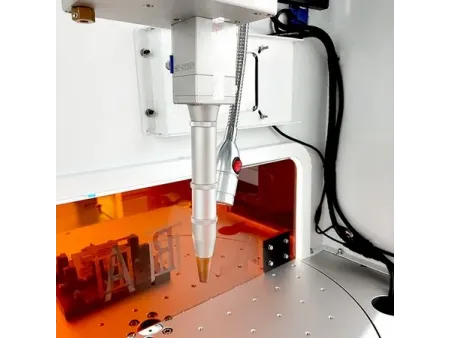

Laser Welding Head

Combines welding and aiming features with CCD visual positioning for precise alignment. It is ideal for spot welding, butt welding, overlay welding, and seal welding on thin-walled materials and intricate parts

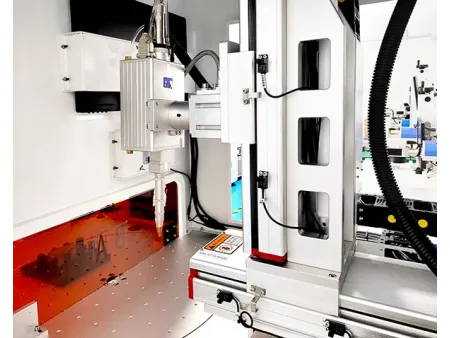

Motion Axis

Features high positioning accuracy and responsive performance with an anti-vibration design. It allows automated movement for welding without the need to manually move the workpieces
