K4FM (Replacement for A4FM) Replacement hydraulic motor for A4FM axial piston fixed motor

K4FM  (Replacement for A4FM)  Replacement hydraulic motor for A4FM axial piston fixed motor
K4FM  (Replacement for A4FM)  Replacement hydraulic motor for A4FM axial piston fixed motor
K4FM  (Replacement for A4FM)  Replacement hydraulic motor for A4FM axial piston fixed motor
Request a Quote
  • High pressure motors suitable for confined spaces
  • Size 71 to 500
  • Nominal pressure 350 bar
  • Maximum pressure 400 bar
  • Open or closed circuits

The K23FM is a fixed displacement hydraulic motor with an axial piston rotating group and a swashplate design for hydrostatic drive in both open and closed circuits.

Features
  • Highly recommended for confined spaces
  • High endurance over torsional vibration
  • Long service life under high pressure
  • High overall efficiency
  • Low operating noise
  • Swashplate design
Technical Parameters
Size 71 125 250 500
Displacement Vg cm³ 71 125 250 500
Nominal pressure pnom bar 350 350 350 350
Max. pressure pmax bar 400 400 400 400
Max. pressure nnom rpm 3200 2600 2200 1800
Inlet flow at nnom qV l/min 227 325 550 900
Torque at pnom M Nm 395 696 1391 2783
Weight (approx.) m kg 34 61 120 260
Applications

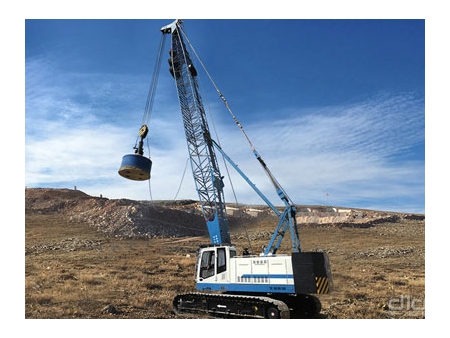

  • Dynamic Compaction Machine

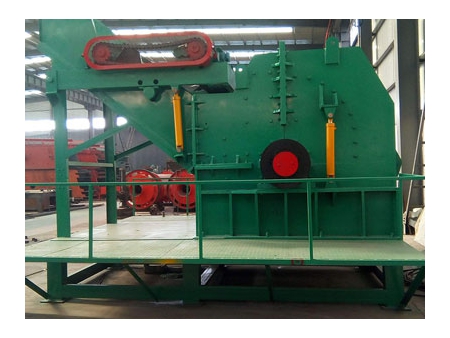

  • Metal Crusher
