The HL-A6VM fixed displacement motor is built for high-load, long-duration operations where precision and efficiency are essential. Whether you're running heavy machinery or handling demanding hydraulic applications, this motor delivers consistent power and smooth performance to keep your equipment operating at its best.

Displacement 55-355 cm³/rev
Nominal pressure 400 bar
Max. allowable pressure 450 bar

Technical Data

Size

Displacement (cm³/rev)

V_gmax

Max speed (rpm)

n_nom

Max. Flow
(L/min)

Torque (Nm)

Δp=400 bar

Δp=350 bar

Details

54.8

4450

244

349

305

Geometric displacement		V_gmax	cm³	54.8
		V_gmin	cm³	0
		V_gx	cm³	35
Max. rotation speed (complying with maximum permissible inlet flow)	at V_gmax	n_nom	rpm	4450
	at V_g < V_gx	n_max	rpm	7000
	at V_g0	n_max	rpm	8350
Inlet flow	at n_nom and V_gmax	q_vmax	L/min	244
Torque at V_gmax	Δp=400 bar	T	Nm	349
Torque at V_gmax	Δp=350 bar	T	Nm	305
Rotary stiffness	V_gmax to V_g/2	C_min	kNm/rad	10
Rotary stiffness	V_g/2 to 0	C_min	kNm/rad	32
Moment of inertia for rotary group		J_GR	kgm²	0.0042
Max. angular acceleration		α	rad/s²	31500
Case volume		V	L	0.75
Weight	approx.	m	kg	26

3900

312

509

446

Geometric displacement		V_gmax	cm³	80
		V_gmin	cm³	0
		V_gx	cm³	51
Max. rotation speed (complying with maximum permissible inlet flow)	at V_gmax	n_nom	rpm	3900
	at V_g < V_gx	n_max	rpm	6150
	at V_g0	n_max	rpm	7350
Inlet flow	at n_nom and V_gmax	q_vmax	L/min	312
Torque at V_gmax	Δp=400 bar	T	Nm	509
Torque at V_gmax	Δp=350 bar	T	Nm	446
Rotary stiffness	V_gmax to V_g/2	C_min	kNm/rad	16
Rotary stiffness	V_g/2 to 0	C_min	kNm/rad	48
Moment of inertia for rotary group		J_GR	kgm²	0.008
Max. angular acceleration		α	rad/s²	24000
Case volume		V	L	1.2
Weight	approx.	m	kg	34

107

3550

380

681

596

Geometric displacement		V_gmax	cm³	107
		V_gmin	cm³	0
		V_gx	cm³	68
Max. rotation speed (complying with maximum permissible inlet flow)	at V_gmax	n_nom	rpm	3550
	at V_g < V_gx	n_max	rpm	5600
	at V_g0	n_max	rpm	6300
Inlet flow	at n_nom and V_gmax	q_vmax	L/min	380
Torque at V_gmax	Δp=400 bar	T	Nm	681
Torque at V_gmax	Δp=350 bar	T	Nm	596
Rotary stiffness	V_gmax to V_g/2	C_min	kNm/rad	21
Rotary stiffness	V_g/2 to 0	C_min	kNm/rad	65
Moment of inertia for rotary group		J_GR	kgm²	0.0127
Max. angular acceleration		α	rad/s²	19000
Case volume		V	L	1.5
Weight	approx.	m	kg	47

140

3250

455

891

778

Geometric displacement		V_gmax	cm³	140
		V_gmin	cm³	0
		V_gx	cm³	88
Max. rotation speed (complying with maximum permissible inlet flow)	at V_gmax	n_nom	rpm	3250
	at V_g < V_gx	n_max	rpm	5150
	at V_g0	n_max	rpm	5750
Inlet flow	at n_nom and V_gmax	q_vmax	L/min	455
Torque at V_gmax	Δp=400 bar	T	Nm	891
Torque at V_gmax	Δp=350 bar	T	Nm	778
Rotary stiffness	V_gmax to V_g/2	C_min	kNm/rad	34
Rotary stiffness	V_g/2 to 0	C_min	kNm/rad	93
Moment of inertia for rotary group		J_GR	kgm²	0.0207
Max. angular acceleration		α	rad/s²	11000
Case volume		V	L	1.8
Weight	approx.	m	kg	60

160

3100

496

1019

891

Geometric displacement		V_gmax	cm³	160
		V_gmin	cm³	0
		V_gx	cm³	61
Max. rotation speed (complying with maximum permissible inlet flow)	at V_gmax	n_nom	rpm	3100
	at V_g < V_gx	n_max	rpm	4900
	at V_g0	n_max	rpm	5500
Inlet flow	at n_nom and V_gmax	q_vmax	L/min	496
Torque at V_gmax	Δp=400 bar	T	Nm	1019
Torque at V_gmax	Δp=350 bar	T	Nm	891
Rotary stiffness	V_gmax to V_g/2	C_min	kNm/rad	35
Rotary stiffness	V_g/2 to 0	C_min	kNm/rad	105
Moment of inertia for rotary group		J_GR	kgm²	0.0253
Max. angular acceleration		α	rad/s²	11000
Case volume		V	L	2.4
Weight	approx.	m	kg	64

200

2900

580

1273

1114

Geometric displacement		V_gmax	cm³	200
		V_gmin	cm³	0
		V_gx	cm³	76
Max. rotation speed (complying with maximum permissible inlet flow)	at V_gmax	n_nom	rpm	2900
	at V_g < V_gx	n_max	rpm	4600
	at V_g0	n_max	rpm	5100
Inlet flow	at n_nom and V_gmax	q_vmax	L/min	580
Torque at V_gmax	Δp=400 bar	T	Nm	1273
Torque at V_gmax	Δp=350 bar	T	Nm	1114
Rotary stiffness	V_gmax to V_g/2	C_min	kNm/rad	44
Rotary stiffness	V_g/2 to 0	C_min	kNm/rad	130
Moment of inertia for rotary group		J_GR	kgm²	0.0353
Max. angular acceleration		α	rad/s²	11000
Case volume		V	L	2.7
Weight	approx.	m	kg	80

250

2700

675

—

1391

Geometric displacement		V_gmax	cm³	250
		V_gmin	cm³	0
		V_gx	cm³	188
Max. rotation speed (complying with maximum permissible inlet flow)	at V_gmax	n_nom	rpm	2700
	at V_g < V_gx	n_max	rpm	3600
	at V_g0	n_max	rpm	3600
Inlet flow	at n_nom and V_gmax	q_vmax	L/min	675
Torque at V_gmax	Δp=400 bar	T	Nm	-
Torque at V_gmax	Δp=350 bar	T	Nm	1391
Rotary stiffness	V_gmax to V_g/2	C_min	kNm/rad	60
Rotary stiffness	V_g/2 to 0	C_min	kNm/rad	181
Moment of inertia for rotary group		J_GR	kgm²	0.061
Max. angular acceleration		α	rad/s²	10000
Case volume		V	L	3
Weight	approx.	m	kg	100

355

2240

795

—

1978

Geometric displacement		V_gmax	cm³	355
		V_gmin	cm³	0
		V_gx	cm³	270
Max. rotation speed (complying with maximum permissible inlet flow)	at V_gmax	n_nom	rpm	2240
	at V_g < V_gx	n_max	rpm	2950
	at V_g0	n_max	rpm	2950
Inlet flow	at n_nom and V_gmax	q_vmax	L/min	795
Torque at V_gmax	Δp=400 bar	T	Nm	-
Torque at V_gmax	Δp=350 bar	T	Nm	1978
Rotary stiffness	V_gmax to V_g/2	C_min	kNm/rad	75
Rotary stiffness	V_g/2 to 0	C_min	kNm/rad	262
Moment of inertia for rotary group		J_GR	kgm²	0.102
Max. angular acceleration		α	rad/s²	8300
Case volume		V	L	5
Weight	approx.	m	kg	170

Size	Displacement (cm³/rev)	Max speed (rpm)	Max. Flow (L/min)	Torque(Nm)
Size	V_gmax	n_nom	Max. Flow (L/min)	Δp=400bar	Δp=350 bar
55	54.8	4450	244	349	305
80	80	3900	312	509	446
107	107	3550	380	681	596
140	140	3250	455	891	778
160	160	3100	496	1019	891
200	200	2900	580	1273	1114
250	250	2700	675	-	1391
355	355	2240	795	-	1978

Features

wide adjustment range Handles both high-speed and high-torque demands, making it versatile for various applications.
infinitely variable displacement control Seamlessly adjusts from maximum displacement (Vg max) down to zero (Vg min = 0), ensuring precise hydraulic control.
proportional speed regulation Output speed adapts directly to input flow and inversely to displacement, optimizing your system’s performance.
adaptive torque output As pressure differential and displacement increase, the motor automatically enhances torque output, delivering the power your system needs.
smooth hydrostatic drive A broad adjustment range, multiple control options, and excellent startup characteristics make it a versatile and efficient solution.
cost-saving design By eliminating gear reducers and requiring a smaller hydraulic pump, this motor helps reduce system costs without compromising performance.
compact and durable build Designed for long service life, featuring a high power-to-weight ratio and outstanding volumetric efficiency to keep your system running longer with minimal maintenance.

Applications

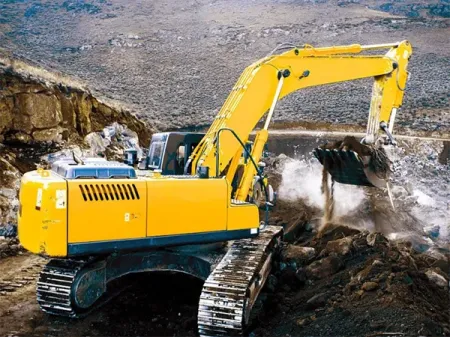

Construction Machinery

Mining and Quarrying Equipment

This axial piston motor is designed to keep your hydraulic system efficient, powerful, and reliable. Let’s talk about how it can improve your equipment today!
