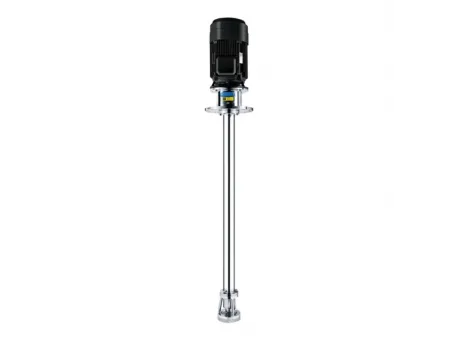

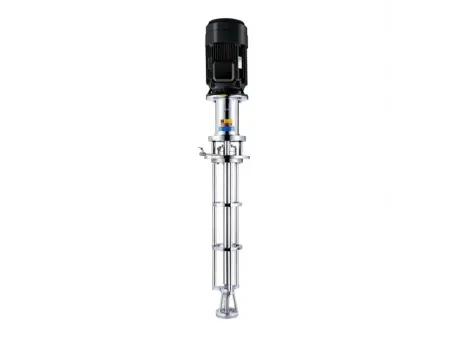

FDHS2/FDHS3 Batch High Shear Dispersing Emulsifier
High shear emulsifier for dispersing, emulsifying and homogenizing
The FA series of high shear dispersing emulsifier features a special rotor-stator structure, providing powerful shear forces. The FM series uses a unique eccentric K-type rotor design, paired with a multi-aperture stator, generating exceptional mixing power. The FU series not only delivers strong shear forces but also offers significant mixing capabilities, thanks to our distinctive slots in the rotor-stator arrangement, creating balanced horizontal shear forces and vertical mixing forces.
FA Series Batch High Shear Dispersing Emulsifier
| Model | Rated power (kW) | Max. speed (rpm) | Max. processing capacity (L), H₂O |
| 0.75 | 6000 | 30 | |
| 1.5 | 3000 | 50 | |
| 2.2 | 3000 | 100 | |
| 4 | 3000 | 300 | |
| 7.5 | 3000 | 800 | |
| 11 | 3000 | 1000 | |
| 18.5 | 1500 | 1500 | |
| 30 | 1500 | 2500 | |
| 37 | 1500 | 4000 | |
| 55 | 1500 | 6000 |
FM Series Batch High Shear Dispersing Emulsifier
| Model | Rated power (kW) | Max. speed (rpm) | Max. processing capacity (L), H₂O |
| 0.75 | 6000 | 30 | |
| 1.5 | 3000 | 50 | |
| 2.2 | 3000 | 100 | |
| 4 | 3000 | 300 | |
| 7.5 | 3000 | 800 | |
| 11 | 3000 | 1000 | |
| 18.5 | 1500 | 1500 | |
| 30 | 1500 | 2500 | |
| 37 | 1500 | 4000 | |
| 55 | 1500 | 6000 |
FU Series Batch High Shear Dispersing Emulsifier
| Model | Rated power (kW) | Max. speed (rpm) | Max. processing capacity (L), H₂O |
| 1.5 | 3000 | 100 | |
| 2.2 | 3000 | 300 | |
| 5.5 | 3000 | 700 | |
| 7.5 | 1500 | 1500 | |
| 18.5 | 1500 | 2500 | |
| 30 | 1500 | 3500 |
This dispersing emulsifier features an innovative design with a compact structure, utilizing a high-density die-cast aluminum alloy housing and a micro-motor that offers high power and speed with reliable operation. The controller employs digital control technology, providing easy data collection and displaying operational status. The stainless-steel homogenizing and dispersing head used in this emulsifier offers excellent corrosion resistance.
Suitable for various processes such as material breaking, dispersion, emulsification, homogenization, and mixing under standard operating conditions.
Customized solutions can be provided to accommodate different container shapes and customer requirements.
