Request a Quote
Technical Data
Total power 23.3KW
Dimension (L*W*H) 7150*900*1700mm
Feed speed 15-23m/min
Edge thickness 0.4-3mm
Panel thickness 10-60mm
Panel length ≥120mm
Panel width ≥95mm
Working pressure 0.6Mpa
Min. panel size (L*W) 120*95mm
Weight 2300kg

This series edgebander machine is typically built for manufacturing door frames, with a feed speed of 18-22m/min. The basic configurations include pre-milling unit, gluing unit, 6-roller pressure system, end cutting unit, rough trimming unit, fine trimming unit, scraper unit, grooving unit, buffing unit, electric lifting system and automatic lubrication system, as well as independently operated control panel to meet your diverse needs for wood panel edge banding.

This edge banding machine can accomplish direct grooving on top, bottom or sides of the door panel, it is also suitable for manufacturing wardrobe doors and aluminum edge banded doors.

Configurations
  • After manually placing the panel on the conveyor belt, this edgebander will automatically complete the entire edge banding process.

  • Automatic lubrication system circulates lubrication for smooth operation and prolonged service life of parts.

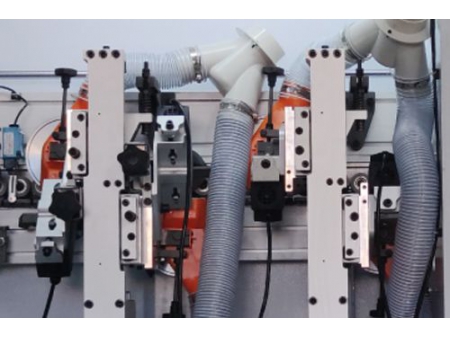

  • Dual-head pre-milling unit efficiently ensures burr-free and smooth cuts, resulting a perfect preparation for workpiece edge gluing.

View More

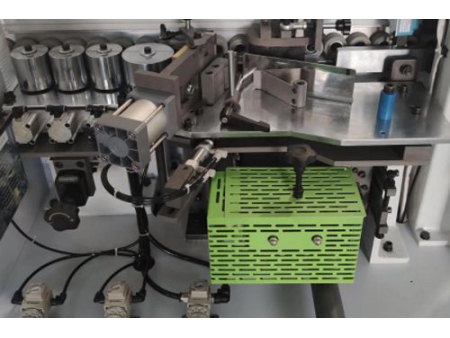

  • Gluing unit is equipped for evenly applying hot melt glue on workpiece edges, it provides an excellent adhesion.

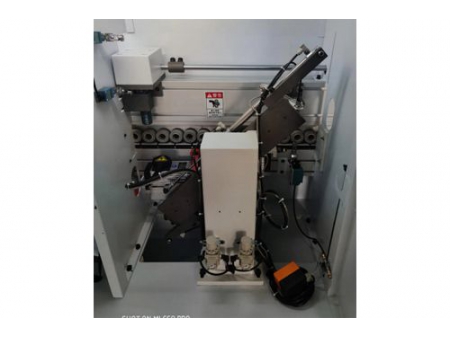

  • End cutting unit removes exceeding edging tape from the front and rear of the panel.

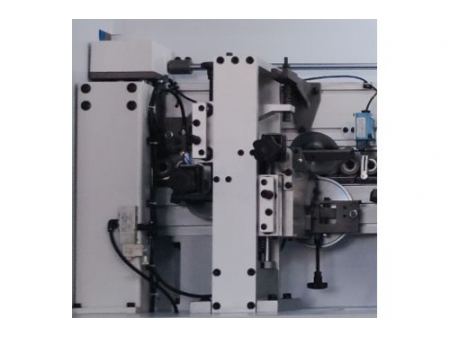

  • Rough trimming & fine trimming units perfectly remove upper and lower overhanging edges to give a smooth looking edging.

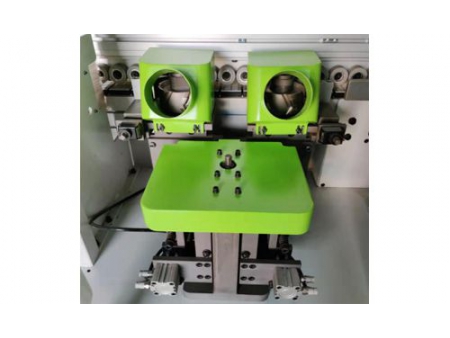

  • Scraper unit gives the smooth finishing result of PVC edges by removal of imperfections resulting from previous milling operations on the top and bottom of the edge.

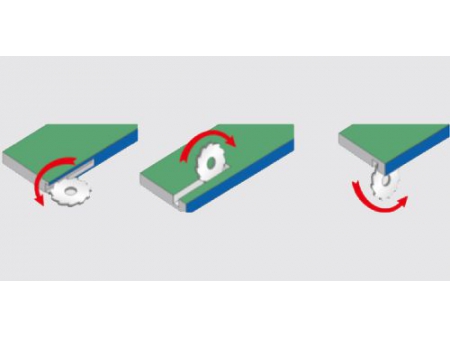

  • Grooving unit for direct grooving on top, bottom and sides of panel, grooving depth is adjustable.

  • Buffing unit improves panel finishing by polishing of the panel edges while eliminating glue residues.
