0PF | 0.16-2ml/r
10 Series of hydraulic gear pumps available with displacement of 0.16-199ml/r

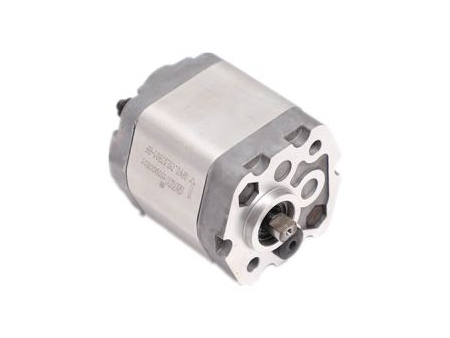

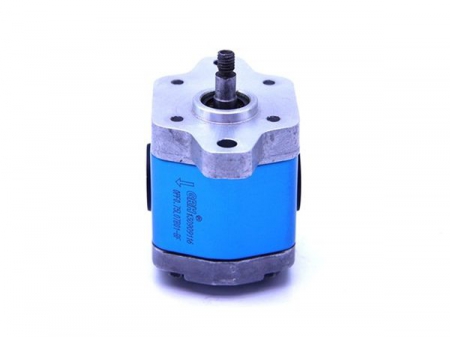

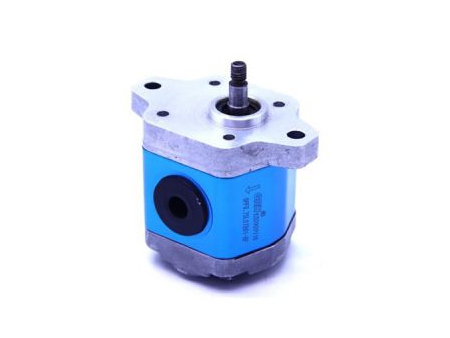

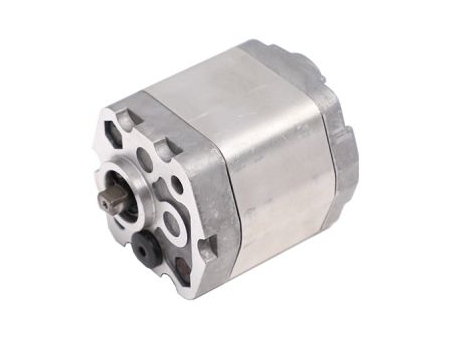

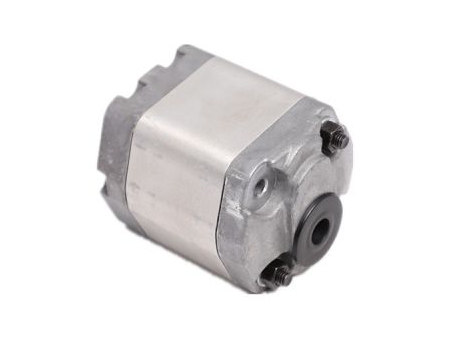

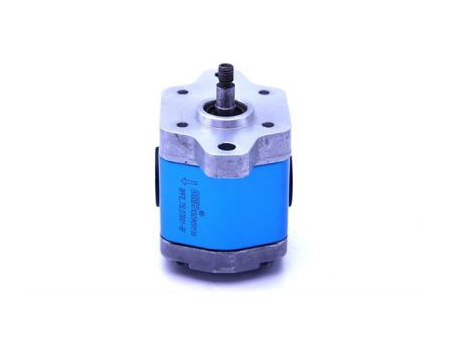

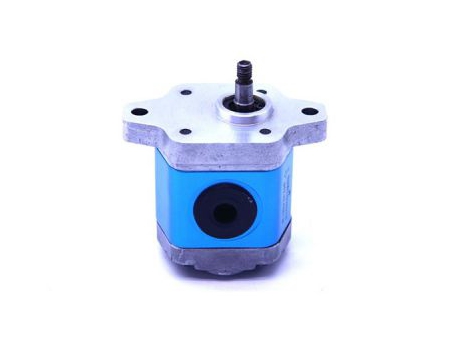

Hydraulic Gear Pump
GRH offers an extensive lineup of hydraulic gear pumps, spanning ten gear pump series with our full range encompassing displacement from 0.16 to 199 ml/r to address nearly any industrial requirement. The 0PF series, in particular, is tailored for specialized applications due to its compact and efficient design, suitable for small hydraulic systems and precise lubrication tasks.
Features of the 0PF hydraulic gear pumps
- Available with displacements ranging from 0.16 to 2 ml/r, allowing for configurations from a single unit to complex assemblies.
- Features automatic axial clearance compensation for consistent, high-quality performance.
- Mechanized by imported CNC machining equipment for superior precision.
- Delivers reliable quality and stable performance, upholding our strict standards for hydraulic excellence.

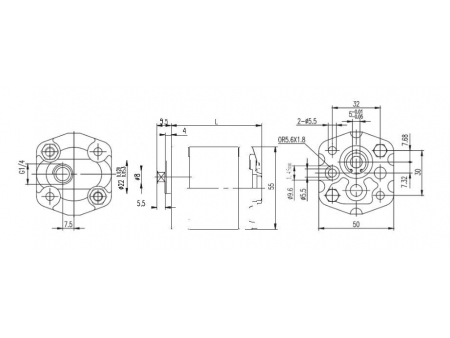

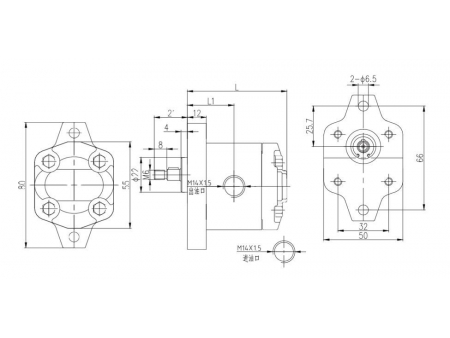

Dimensions (0PF-K Hydraulic Gear Pump)
Dimensions (0PF-L Hydraulic Gear Pump)
| Model | Displacement (ml/r) | Pressure (bar) | Speed(r/min) | L(mm) | SS | Inlet (mm) | |||
| Rated | Peak | Rated | Max | Min | L1(mm) | ||||
| 0.16 | 200 | 250 | 2000 | 6000 | 800 | 58.2 | 30.8 | G1/4 | |
| 0.25 | 200 | 250 | 2000 | 6000 | 800 | 59 | 31.3 | ||
| 0.38 | 200 | 250 | 2000 | 6000 | 800 | 60.3 | 31.9 | ||
| 0.5 | 200 | 250 | 2000 | 6000 | 800 | 61 | 32.3 | ||
| 0.75 | 200 | 250 | 2000 | 6000 | 800 | 63.5 | 33.5 | ||
| 1 | 200 | 250 | 2000 | 6000 | 800 | 66 | 34.8 | ||
| 1.25 | 200 | 250 | 2000 | 5000 | 800 | 68.5 | 36 | ||
| 1.5 | 200 | 250 | 2000 | 4500 | 800 | 70 | 37 | ||
| 1.75 | 200 | 250 | 2000 | 4000 | 800 | 73 | 38.3 | ||
| 2 | 160 | 200 | 2000 | 3500 | 800 | 75.5 | 39.5 | ||
The 0PF series gear pumps are widely utilized in micro hydraulic systems, their small size and light weight making them perfect for such precise applications. Their low displacement range also makes them a popular choice for track lubrication systems. Integral to various machinery such as forklifts, aerial work platforms, harvesters, tractors, and road rollers, these pumps underscore GRH's commitment to hydraulic excellence. For detailed use cases, see the following applications:
