2.5PF | 20-40ml/r

Request a Quote

View All: http://product-hydraulic.com/4-5-group2-5.html

Hydraulic Gear Pump

Among the comprehensive selection of ten gear pump series, a displacement range from 0.16 to 199 ml/r is available, designed to cater to an extensive array of operational scenarios. The 2.5APF series is particularly noteworthy for its higher displacement capabilities, ranging from 20 to 40 ml/r, making it suitable for more demanding hydraulic applications.

Features of the 2.5APF series include

Displacement options from 20 to 40 ml/r, providing versatility for single to multiple unit configurations.
Equipped with automatic axial clearance compensation, enhancing performance and extending lifespan.
Processed by CNC machining equipment, ensuring each pump meets the highest standards of quality.
Known for its reliable quality and stable performance, the 2.5APF series is a testament to our dedication to hydraulic innovation and excellence.

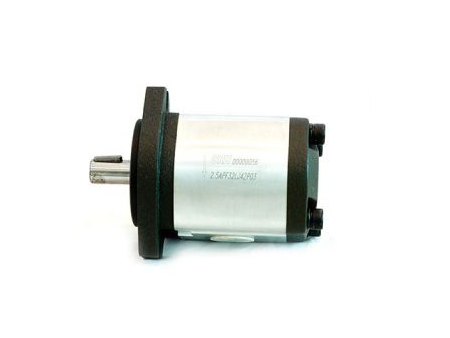

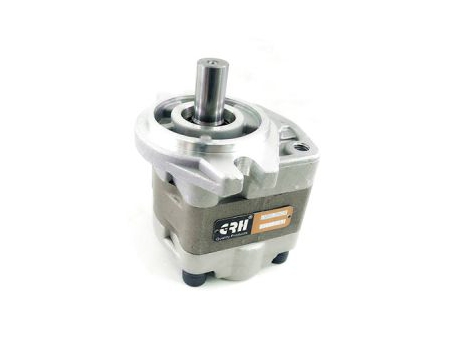

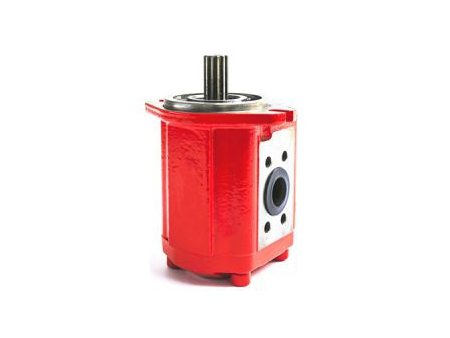

2.5APF Hydraulic Gear Pump

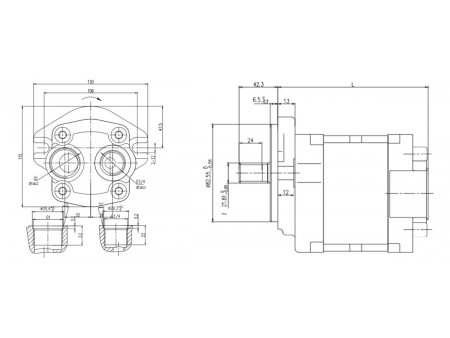

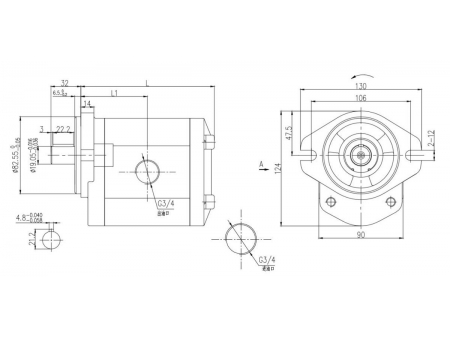

Dimensions

Specifications

Model	Displacement (ml/r)	Pressure (bar)		Speed (r/min)			L(mm)	L1(mm)	Inlet port	Outlet port
Model	Displacement (ml/r)	Nominal	Max.	Nominal	Max.	Min.	L(mm)	L1(mm)	Inlet port	Outlet port
2.5APF20L03P03*	20	200	250	2000	3000	500	124.5	61.5	G 1	G 3/4
2.5APF25L03P03*	25	200	250	2000	3000	500	130.5	64.5
2.5APF27L03P03*	27	200	250	2000	3000	500	133	65.8
2.5APF30L03P03*	30	200	250	2000	3000	500	136.5	67.5
2.5APF32L03P03*	32	200	230	2000	3000	500	139	68.8
2.5APF36L03P03*	36	200	230	2000	3000	500	143.5	71
2.5APF40L03P03*	40	160	200	2000	3000	500	148.5	73.5

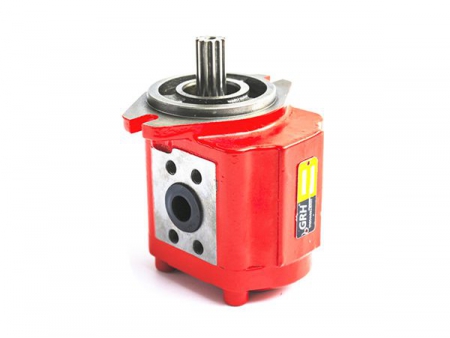

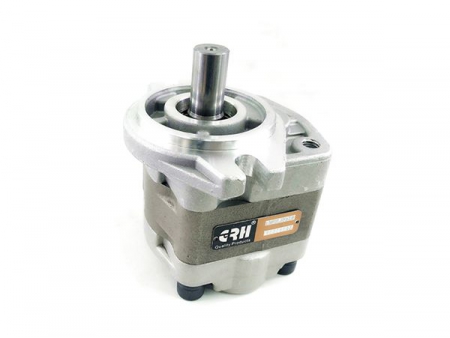

2.5CPF Hydraulic Gear Pump

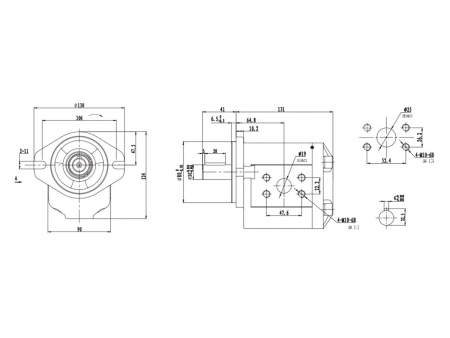

Dimensions

Specifications

Model	Displacement (ml/r)	Pressure (bar)		Speed (r/min)			L	L1	Inlet port	Outlet port
Model	Displacement (ml/r)	Nominal	Max.	Nominal	Max.	Min.	(mm)	(mm)	Inlet port	Outlet port
2.5CPF20F30S24*	20	200	250	2000	3000	500	124.5	61.5	Ø25	Ø19
2.5CPF25F30S24*	25	200	250	2000	3000	500	130.5	64.5
2.5CPF27F30S24*	27	200	250	2000	3000	500	133	65.8
2.5CPF30F30S24*	30	200	250	2000	3000	500	136.5	67.5
2.5CPF32F30S24*	32	200	230	2000	3000	500	139	68.8
2.5CPF36F30S24*	36	200	230	2000	3000	500	143.5	71
2.5CPF40F30S24*	40	160	200	2000	3000	500	148.5	73.5

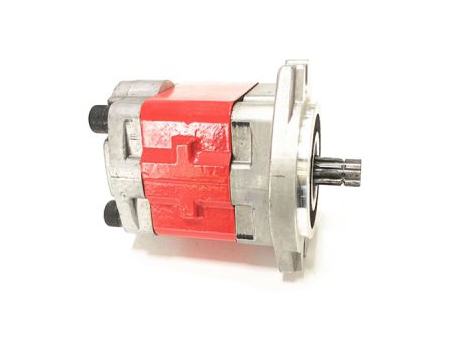

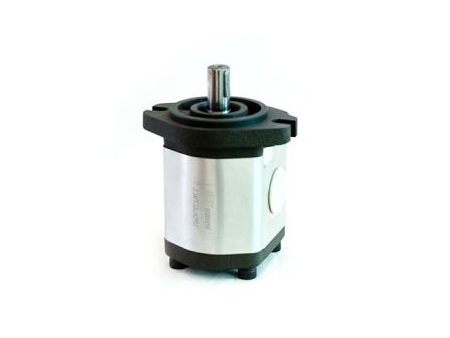

2.5QPF Hydraulic Gear Pump

Dimensions

Specifications

Model	Displacement (ml/r)	Pressure (bar)		Speed (r/min)			L(mm)	Inlet port	Outlet port
Model	Displacement (ml/r)	Nominal	Max.	Nominal	Max.	Min.	L(mm)	Inlet port	Outlet port
2.5QPF16LJ03S65SP9LBB	16	200	250	1500	2500	500	101.5	G 1	G 3/4
2.5QPF18LJ03S65SP9LBB	18	200	250	1500	2500	500	103.5
2.5QPF20LJ03S65SP9LBB	20	200	250	1500	2500	500	105.5
2.5QPF23LJ03S65SP9LBB	23	200	250	1500	2500	500	108.5
2.5QPF25LJ03S65SP9LBB	25	200	250	1500	2500	500	110.5
2.5QPF28LJ03S65SP9LBB	28	200	250	1500	2500	500	113.5
2.5QPF30LJ03S65SP9LBB	30	200	250	1500	2500	500	115.5
2.5QPF32LJ03S65SP9LBB	32	200	250	1500	2500	500	117.5
2.5QPF36LJ03S65SP9LBB	36	200	250	1500	2500	500	121.5
2.5QPF40LJ03S65SP9LBB	40	200	250	1500	2500	500	125.5
2.5QPF45LJ03S65SP9LBB	45	200	250	1500	2500	500	130.5
2.5QPF52LJ03S65SP9LBB	52	200	250	1500	2500	500	137.5

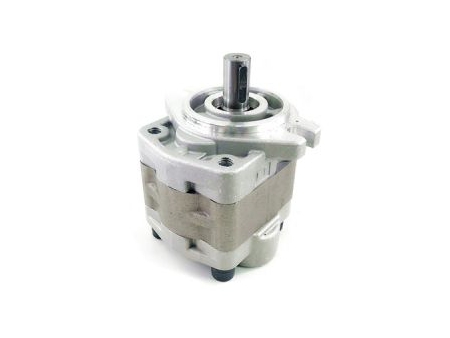

2.5YPF Hydraulic Gear Pump

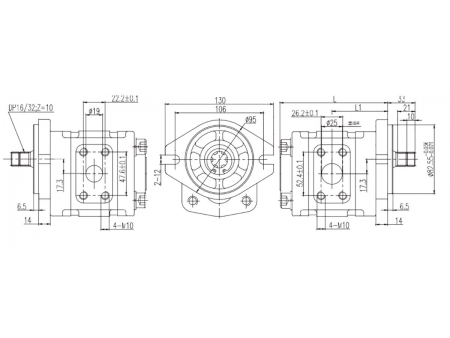

Dimensions

Specifications

Model

Displacement (ml/r)

Pressure (bar)

Speed (r/min)

Inlet port

Outlet port

Nominal

Max.

Nominal

Max.

Min.

L1xB1

Ød1

L1xB2

Ød2

2.5YPF25F97F75D9*

250

280

1500

2500

500

52.4 X 26.2

M10

47.6 X 22.2

M10

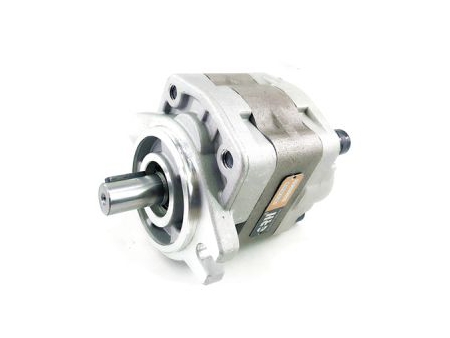

2.5EPF Hydraulic Gear Pump

Dimensions

Specifications

Model	Displacement (ml/r)	Pressure (bar)		Speed (r/min)			L (mm)	L1 (mm)
Model	Displacement (ml/r)	Nominal	Max.	Nominal	Max.	Min.	L (mm)	L1 (mm)
2.5EPF 10.16L*F104D11-O	10.16	210	250	2000	3000	600	137	112
2.5EPF 15.23L*F104D11-O	15.23	210	250	2000	3000	600	143.5	118.5
2.5EPF 20.31L*F104D11-O	20.31	210	250	2000	3000	600	150	125
2.5EPF 25.39L*F104D11-O	25.39	210	250	2000	3000	600	156.5	131.5
2.5EPF 30.47L*F104D11-O	30.47	210	250	2000	3000	600	163	138
2.5EPF 35.54L*F104D11-O	35.54	180	210	2000	3000	600	169.5	144.5
2.5EPF 40.62L*F104D11-O	40.62	180	210	2000	3000	600	176	151

Applications

The 2.5APF series, predominantly designed for forklifts—often referred to as forklift pumps—caters to a variety of material handling needs with three distinct models. Tailored to accommodate different forklift designs and functionalities, these pumps enhance efficiency and performance in material handling, ensuring the 2.5APF series supports the critical operations of diverse machinery in the industrial sector.
