Electro-Hydraulic Press Brake
Request a Quote

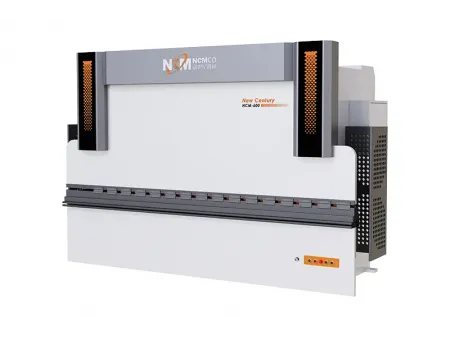

NCM-ZW
CNC bending machine used to form metal door frames
NCM-ZW electro-hydraulic press brake is suitable for forming various types of steel and stainless steel door frames. The CNC bending equipment adopts integrated electro-hydraulic technology and CNC control system, with independent control function of the hydraulic cylinder and a fully closed-loop servo hydraulic energy-saving system. The bending angles on both sides can be adjusted as needed. The main motor power ranges from 5.5kW to 22kW, and the nominal pressure can reach 630KN to 3200KN. Precise control of bending force is achieved through the electro-hydraulic system, and multiple press brake toolings are available for forming, making it suitable for the production of non-standard door frames.

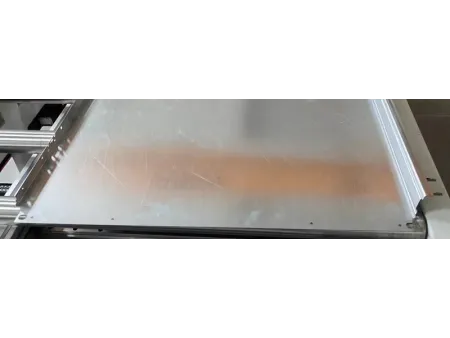

Samples
- Door panels
- Door frames
Applications
- Security doors
- Fire-rated doors
- Healthcare/hospital doors
- Cleanroom doors
Technical Parameters
| Model | Nominal pressure | Worktable length | Distance between columns | Throat depth | Slide stroke | Main motor power |
| 630kN | 2500mm | 2100mm | 270mm | 160mm | 5.5kW | |
| 630kN | 3200mm | 2700mm | 270mm | 160mm | 5.5kW | |
| 1250kN | 2500mm | 2100mm | 400mm | 200mm | 7.5kW | |
| 1250kN | 3200mm | 2700mm | 400mm | 200mm | 7.5kW | |
| 1600kN | 3200mm | 2700mm | 400mm | 200mm | 11kW | |
| 1600kN | 4000mm | 3300mm | 400mm | 200mm | 11kW | |
| 3200kN | 5000mm | 4100mm | 400mm | 250mm | 22kW | |
| 3200kN | 6000mm | 4800mm | 400mm | 250mm | 22kW |
Features
- The hydraulic cylinder is independently controlled and can adjust the bending angle on both sides as required.
- A mechanical compensation structure is optional, which can assist in adjusting the middle bending angle.
- The exclusive closed-loop servo hydraulic energy-saving system effectively controls costs.
- A multi-functional quick clamp is equipped, making tool change convenient. One machine can complete multiple frame types.
