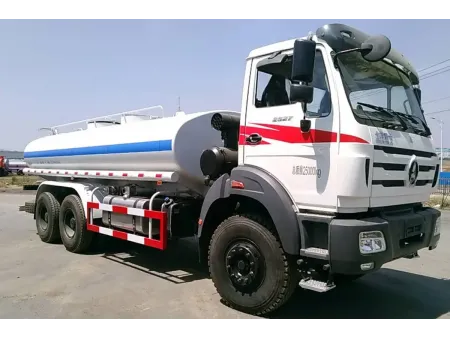

6×4 Water Tank Truck
Request a Quote
CONSTRUCTION TRUCKS
The 6×4 water tank truck is built for versatile performance, featuring a 340 HP Weichai 6-cylinder engine, a 9-speed manual transmission, and a twin-reduction rear axle. Equipped with a 15–20 m³ tank, it offers strong climbing capability and stable transport under full load, making it suitable for both medium-distance haulage and municipal sanitation operations.
- Engine power 340 HP / 2200 rpm
- Tank capacity 15–20 m³
- Gradeability 30% (fully loaded)
- Max speed 80 km/h
Dimensional Drawing
Specifications
| Model | |
| Driving Type | 6×4 |
| Cab | Cab Exterior Metal bumper Three-step ladder Exterior sun visor Sun roof (manual) Rear view mirror (manual adjustment) Cab Interior Air-sprung suspension driver's seat Cooling and heating air conditioner Steering wheel (with adjustable height and angle) Door lock (manual) Radio (with MP3 player) Digital instruments |
| Engine | Type: WP10.340E32 Version: EURO II Displacement (I): 9,726 Max. Power (HP/rpm): 340/2200 Max. Torque (N.m/rpm): 1250/1400~1600 Cylinder: 6 in-line |
| Transmission | 9JS150A / 12.57-1 Gears: 9 speed forward Synchromesh or Constant Mesh: Constant Mesh Transfer Box: not available Power Take-Off (P.T.O.): yes |
| Steering System | 8098 Recirculating ball steering gear, hydraulic booster |
| Clutch | Ø430mm single dry friction disc, diaphragm spring, pushing type |
| Fuel Tank | 400L (iron) |
| Front Axle | 7500kg, non-drive steering |
| Middle & Rear Axle | 13000kg 13000kg, double reduction driving axle, differential lock |
| Suspension | Front 13pcs / Rear 13pcs hard parabolic spring |
| Brakes | Service: dual circuit air brakes Emergency/Parking: spring potential brake Auxiliary: EVB (optional ABS) |
| Electrical Equipment | Alternator: 70Amp Starter Motor: 5.5kW Batteries: 2×12V – 135AH |
| Performance Data | Gradeability@GVM: 30% Max. Geared Road Speed: 80km/h Final Drive Ratio: 5.263 (optional 4.769, 5.921) |
| Tyre | Size and Ply Rating: 12.00R20-18PR Steel Rim |
| Upper Body | 15-20m³ |
| Dimensions | Wheel Base (WB): 4450 1450mm Overall Length (OL): 9500mm Overall Width (OW): 2500mm Overall Height (OH): 3370mm Front Overhang (FOH): 1435mm Rear Overhang (ROH): 1900mm |
| Total Vehicle Weight | 15500kg |
*The above data is subject to the actual product.
Applications
- Urban sanitation: Equipped with a 20 m³ tank and a 340 HP engine, the 6×4 water tank truck efficiently handles road cleaning and landscape irrigation across paved urban roads, even under frequent stop-and-go conditions.
- Oilfield support: Designed to operate across desert and arid terrains, it can carry 20 m³ of water for firefighting or equipment cleaning in oilfields. The system is engineered to withstand extreme temperatures ranging from -30°C to 50°C.
- Mining operations: Built with a reinforced chassis and 20 m³ capacity for transporting mining wastewater, the truck features a retarder for navigating 30% gradients and full-steel radial tires for stability over rough, gravel-covered roads.
- Construction sites: Fitted with off-road tires and enhanced ground clearance, it ensures reliable operation across muddy job sites while supporting continuous dust suppression and water delivery tasks.
