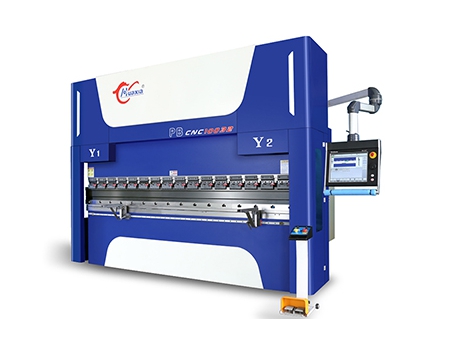

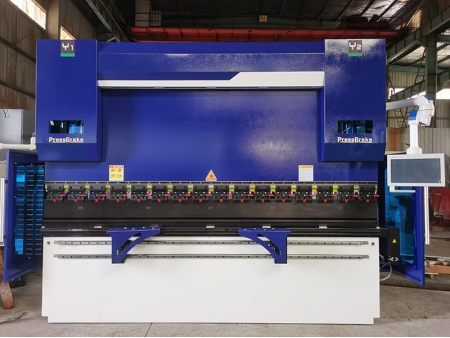

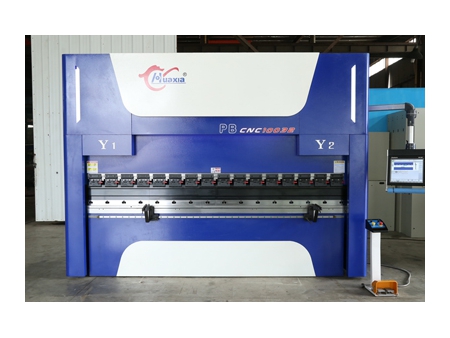

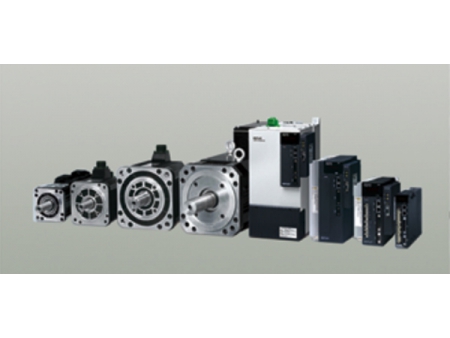

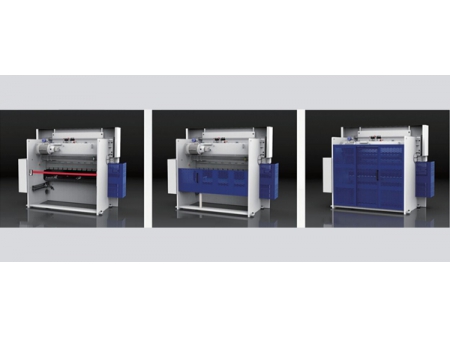

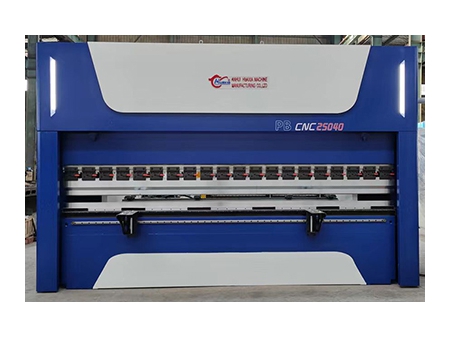

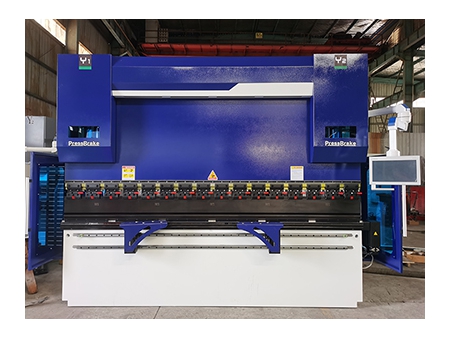

The WD67K electric-hydraulic servo high precision CNC press brake is driven by a servo motor and is used to bend steel sheet into various shapes with outstanding precision and efficiency.

  • 63T/2500
  • 100T/3200
  • 160T/3200
  • 200T/4000

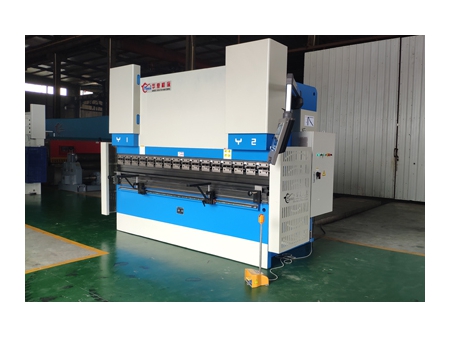

Features
  • The structure of the WD67K electric-hydraulic servo high precision CNC Press Brakeis integrally welded and processed, and the main parts of the machine are analyzed by ANSYS finite element analysis software, ensuring the machine tool is calibrated for optimal reliability and precision.

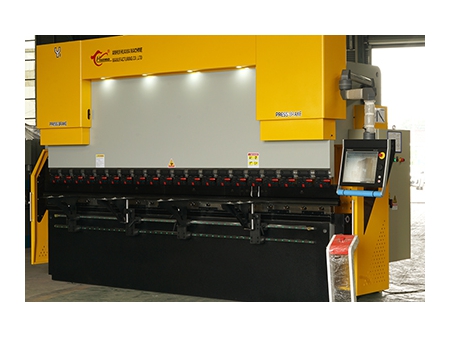

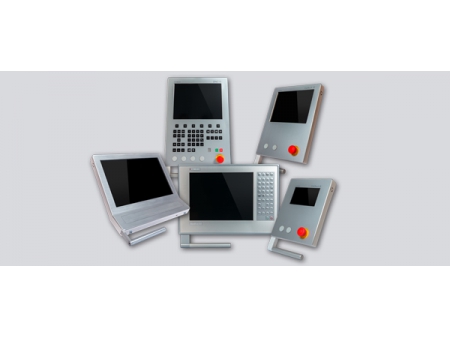

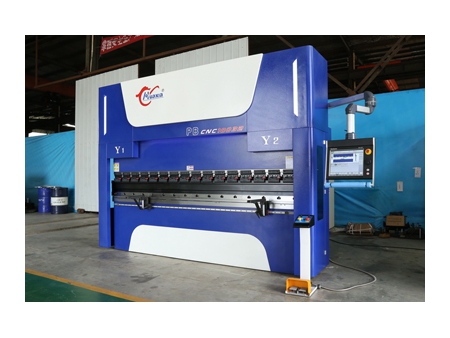

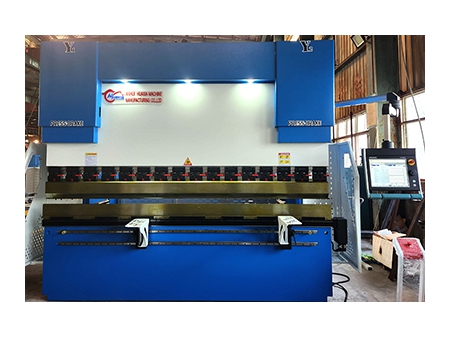

  • The WD67K press brake adopts a numerical control system from Dutch DELEM, Italian ESA, or Swiss CYBELEC, which helps achieve the functions of bending angle graphics programming, angle correction compensation, bending pressure automatic calculation and automatic adjustment, automatically calculating the deformation compensation of the worktable, the length of the workpiece, bottom bending pressure, open height, back gauge automatic return, etc. DELEM DA52S/DA53T/DA58T/DA66T press brake CNC system (Optional).

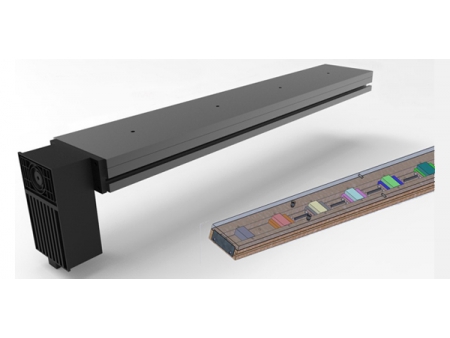

  • The crowning system is made up of a group of crowning wedges with an inclined plane, and the slope of the crowning wedge is designed according to the deflection curve which is analyzed by finite element analysis sliding and worktable vertical plate.

  • According to the bending pressure to the workpiece, the numerical control system calculates the compensation required, automatically controls the relative displacement of crowning wedge block, effectively compensating the deflection slider and upper ram deformation, to achieve ideal bending on the workpiece.

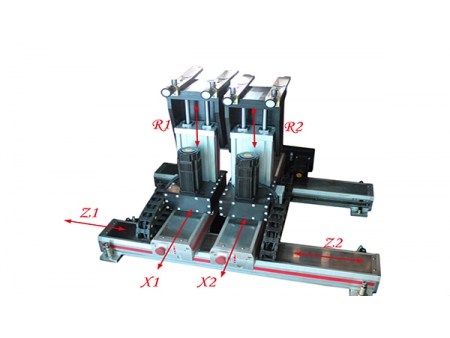

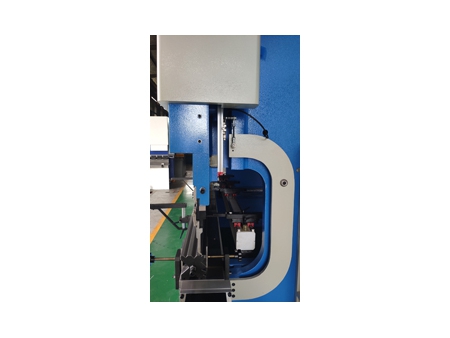

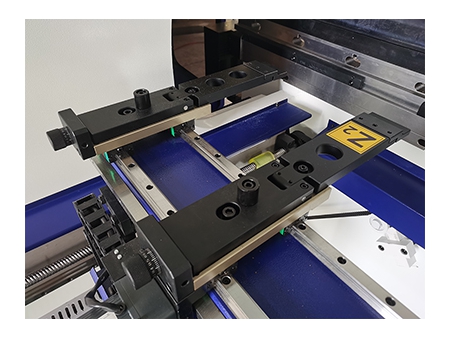

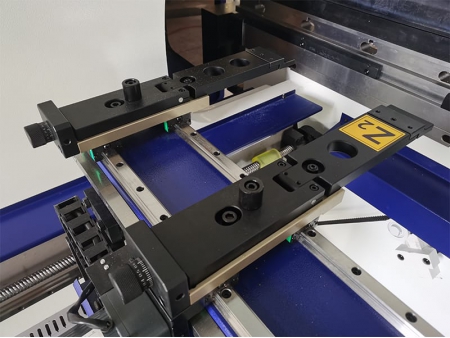

  • Back guage of CNC presss brake can be extended to 6 1 axis. The crowning system is ajusted by the controller.

  • The V-axis in the bed's compensation device is the numerical control axis which can control the crowning. By controlling the crowning, we can achieve deflection compensation.

Technical Parameters
Model Nominal Force (KN) Bending Length (mm) Poles Distance (mm) Throat Depth (mm) Slider Travel (mm) Worktable Height (mm) Die Loading Height (mm) Main Motor (kw) Back gauge x aris distance (mm) Back gauge x aris speed (mm/s) Dimension (L x W x H) (mm)
63T/2500 630 2500 1900 350 150 800 380 7.5 600 100 3100x1450x2050
80T/3200 800 3200 2600 350 200 800 380 7.5 600 100 3500x1550x2100
100T/3200 1000 3200 2600 400 200 850 420 7.5 600 100 3500x1580x2400
160T/3200 1600 3200 2600 400 200 920 420 11 600 100 3500x1650x2500
200T/3200 2000 3200 2600 400 200 920 420 11 600 100 3500x1680x2550
250T/3200 2500 3200 2600 400 200 920 420 18.5 600 100 3500x1700x2600
320T/3200 3200 3200 1600 400 200 950 420 18.5 600 100 3500x1800x2730
400T/4000 4000 4000 3100 400 200 800 420 30 800 100 4300x2080x2730
500T/5000 5000 5000 4000 500 300 800 600 37 800 100 5400x2525x4600
500T/6000 5000 6000 4800 500 300 800 600 37 800 100 6500x2525x4200
500T/7000 5000 7000 5400 500 300 800 600 91 800 100 7500x2525x4900
600T/5000 6000 5000 4000 500 300 800 600 45 800 100 5500x2450x4500
600T/6000 6000 6000 4800 500 300 800 600 45 800 100 6500x2450x5100
600T/7000 6000 7000 5400 500 300 800 600 45 800 100 7500x2450x5200
800T/6000 8000 6000 5000 600 400 800 800 2x30 800 100 6500x2750x5300
800T/7000 8000 7000 5400 600 400 800 800 2x30 800 100 7500x2750x5500
800T/8000 8000 8000 6400 600 400 800 800 2x30 800 100 8600x2750x5900
1000T/6000 10000 6000 4800 600 400 800 800 2x37 800 100 6500x2800x5600
1000T/7000 10000 7000 5400 600 400 800 800 2x37 800 100 7500x2800x5800
1000T/8000 10000 8000 6400 600 400 800 800 2x37 800 100 8500x2900x6100
1200T/6000 12000 6000 5000 600 400 800 800 2x45 800 100 6500x3100x5850
1200T/7000 12000 7000 5400 600 400 800 800 2x45 800 100 7500X3100X6550
1200T/8000 12000 8000 6400 600 400 800 800 2x45 800 100 8500X3100X7150
1600T/6000 16000 6000 4800 500 400 800 800 2x55 800 100 6500x3300x6500
1600T/7000 16000 7000 5400 500 400 800 800 2x55 800 100 7500x3300x7000
1600T/8000 16000 8000 6400 500 400 800 800 2x55 800 100 8500x3300x8000
Machine main configuration

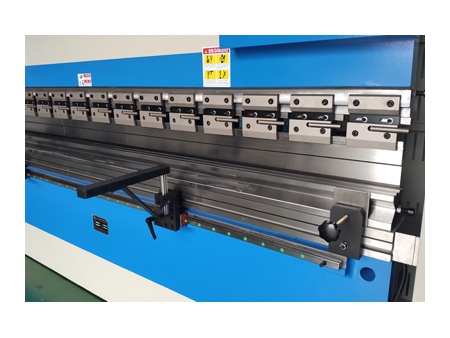

  • Precision quick clamp device

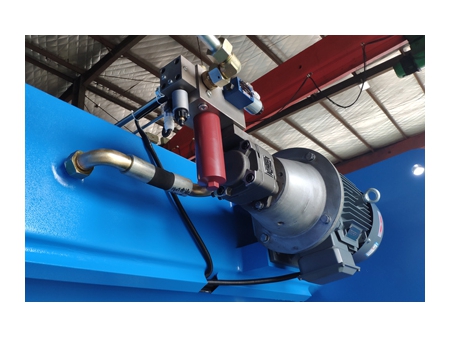

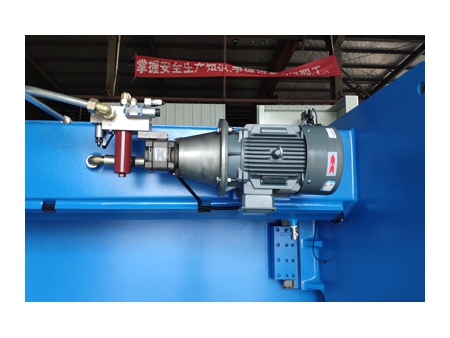

  • Bosch Rexroth hydraulic system
  • Oil pump
  • Siemens motor

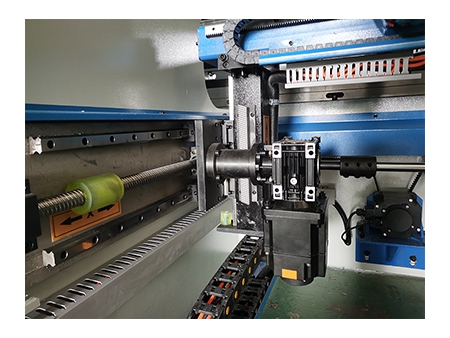

  • Linear guide rail, precision ball screw
  • The high accurate linear encoder

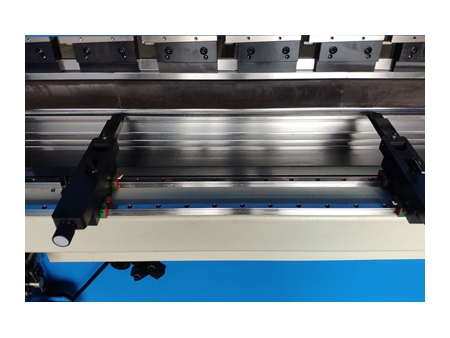

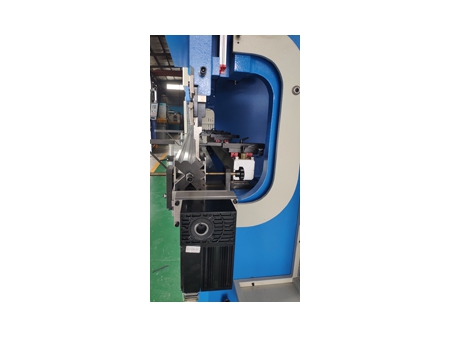

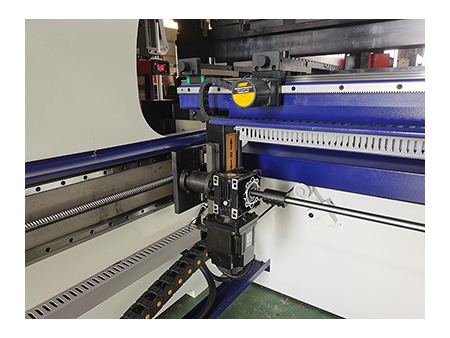

  • Fully automatic back gauge device
