6-Axis CNC Press Brake

Request a Quote

View All: http://accurlcnc.com/6-axis-cnc-press-brake.html

ACCURL® EURO-PRO Series CNC press brakes feature an automatic CNC crowning system for improved quality, a servo driven back gauge system for increased speeds, and a 3D capable graphical control unit to simulate bending sequences and collision points.

Features

Provides a combination of performance, cost effectiveness and easy to use features

Outstanding Value! Best brake for the money on the market.

User friendly CNC control unit and software

Precise bending results

Tough construction with the same solid framework we use for all ACCURL CNC press brake manufacturing

Large daylight opening allows the entire length of the machine to be put to optimal use

Designed and built with the objective to help you achieve low cost manufacturing

Standard 6 axis X, R, Z1, Z2, Y1, Y2 CNC Press Brake Manufacturers

Standard Equipment

Mono block, welded steel frame rigid to deflection and high tensile with ST44 A1 material.
6 axes (Y1, Y2, X, R, Z1, Z2)
Throat depth 410 mm.
Back gauge system with X, R, Z1, Z2 axis driven by AC servo with colored graphics.
HOERBIGER Press Brake BGA-4 for X E Z1 Z2-axis.
CNC controlled motorized anti-deflection system.
Hardened and ground standard sectioned top and 4V-Die bottom tools (835 mm section).
Easy to clamp tool holding system with upper and lower tools.
Ergonomic user friendly, pendant control panel.
Back light safety guards (category-4)
Front side covers with safety switches.
Synchronization of Y1 Y2 axis provided by linear encoders with 0.01 mm tolerances.
Foot pedal suitable to CE regulation.
Sliding front support arms with T slot and mm/inch rulers.
Standard graphic controllers can be selected from: DelemDA66T 3D color graphical touch screen controller, Cybelec Mod Eva 12 S
Electrical panel with cooling system designed to meet CE standards & composed of Simens automatic and electrical equipment

Delem DA66T CNC Control system

2D graphical touch screen programming mode.

3D visualization in simulation and production.

17" high resolution color TFT.

Windows applications compatible.

Delem Modusys compatibility. (module scalability and adaptivity)

USB, peripheral interfacing.

Open system architecture.

User specific application support within the controllers multitasking environment.

Sensor bending & correction interface.

Specifications

Model(EURO PRO)			B1560	B2580	B32110	B32135	B32175	B40175	B32220
Bending force		KN	600	800	1100	1350	1750	1750	2200
Bending Length		mm	1500	2500	3200	3200	3200	4200	3200
Between Columns		mm	1100	2060	2700	2700	2700	3700	2700
Daylight		mm	405	405	430	430	430	430	430
Slide Stroke		mm	200	200	200	200	200	200	200
Throat Depth		mm	370	400	400	400	400	400	400
Bolster Width		mm	80	80	100	100	100	100	140
Down Speed		mm/min	200	200	180	180	160	160	160
Pressing Speed		mm/min	8	8	10	10	10	10	10
Return Speed		mm/min	180	180	150	150	150	150	140
Back Gauge Stroke		mm	500	600	800	800	800	800	800
Outline Size	L	mm	1825	2825	3500	3550	3500	4500	3500
	W	mm	1650	1650	1650	1650	1650	1650	1730
	H	mm	2300	2350	2650	2700	2700	2750	2900
Weight		kg	4600	5600	8000	9500	10000	12000	13200

The best bending results- Users can bend longer and deeper parts using the standard Euro Pro B Series!

Detailed Pictures

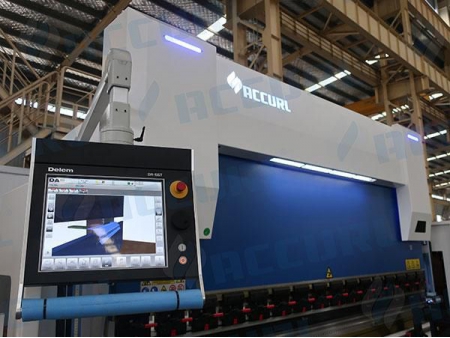

DELEM DA66T 3D Graphical CNC System for CNC Press brake
HOERBIGER Hydraulic system for ACURL Press Brake

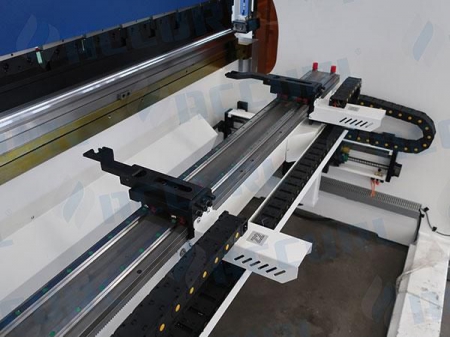

Press Brake BGA-4 for X E Z1 Z2-axis

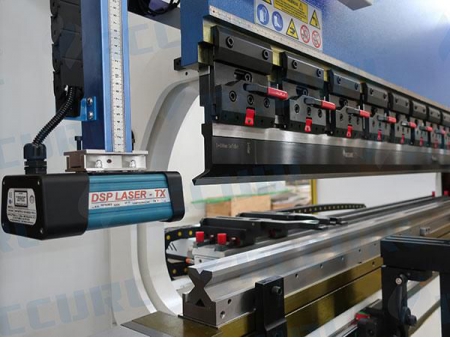

Standard top and 4V-Die bottom tools
