CNC Panel Bending Center / Panel Bender
Request a Quote

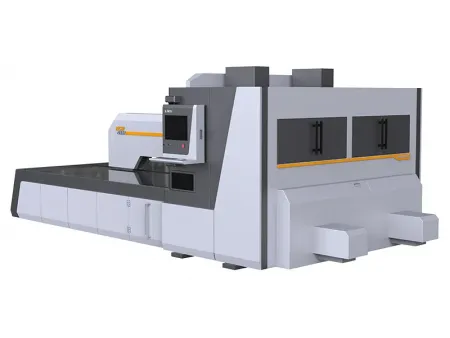

NCM-ZWL
CNC bending machine for 4-sided bending of steel door panels
NCM-ZWL CNC panel bending center is mainly used for one-step forming of the four sides of door panels. The front and back panels of door leaf are formed by CNC folding, therefore shaping the door panel sides. This CNC bending center is equipped with a robotic arm for side switching, enabling the completion of forming all four sides in one step without manual operation.

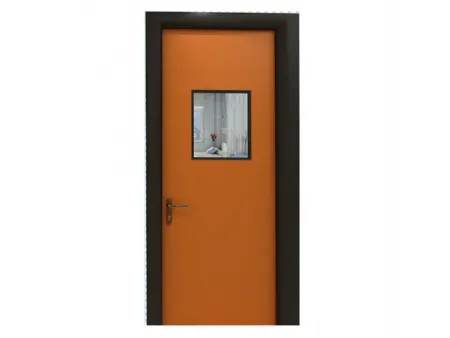

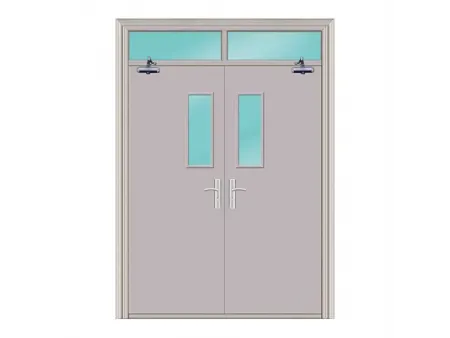

Samples
Applications
- Security doors
- Fire-rated doors
- Healthcare/hospital doors
- Cleanroom doors
Technical Parameters
| Item | |||
| Feeding structure | Press-arm type | ||
| Worktable structure | Brushes and universal joints | ||
| Accuracy | 0.01mm | ||
| Bending speed | 0.2 s/cut | ||
| Feeding speed | 120m/min | ||
| Bending size | 1400* 1250mm | 2500*1250mm | 3000*1250mm |
| Maximum bending height | 170/240/280mm | 170/240/280mm | 170mm |
| Minimum bending height | 4mm(based on sheet thickness) | ||
| Minimum arc radius | 2mm(based on sheet thickness) | ||
| Rated voltage | 380V | ||
| Motor power | 44.5kW | 68kW | 84kW |
| Average operation power | 4.5kW | 6.8kW | 8.5kW |
| Noise level | 55 dB | ||
| Dimensions | 4600*2600*2400mm (bending height of 170mm) | 6100*3800*2320mm (bending height of 170mm) | 6100*3800*2320mm (bending height of 170mm) |
| Operating system | Windows | ||
| Bending thickness | 304 stainless steel:1.0mm carbon steel:1.5mm Aluminum:2.5mm | ||
| Minimum material thickness | 0.3mm | ||
| Inner size of 4-side bending | 140*260mm(customizable） | 140*260mm(customizable） | 160*280mm(customizable） |
| Inner size of 2-side bending | 140mm (customizable) | ||
| Bending angle | -90°~ 90°(＞0.8mm) 0°~ 180°(≤0.8mm) (carbon steel) | ||
| Axis number | customized | ||
Features
- Four-side bending is accomplished at one time, without the need for additional equipment.
- Automatic side folding requires no need for a mold.
