Steel Door Panel Roll Forming Machine

Steel Door Panel Roll Forming Machine
Steel Door Panel Roll Forming Machine
Request a Quote
NCM-580

Roll forming line for producing metal door leaves with roll stands at two sides

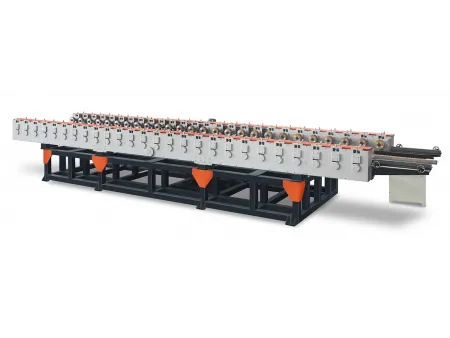

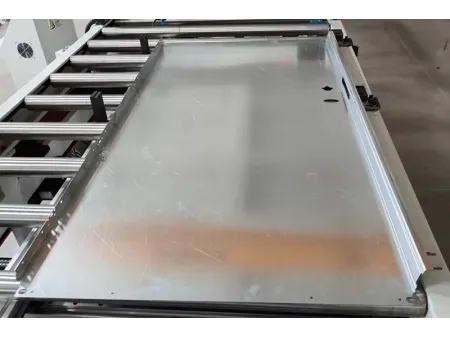

NCM-580 steel door panel roll forming machine adopts fully automatic roll-forming method with roll stands at both sides. It achieves forming and folding of lock side/hinge side for various steel and stainless steel door panels by dual-mold roll-forming method. It can achieve simultaneous forming of two door panel sides, with a maximum forming speed of 12m/min. Optional sheet metal appearance can also be added according to requirements.

Applications
  • Security doors
  • Fire-rated doors
  • Healthcare/hospital doors
  • Cleanroom doors
Technical Parameters
Material thickness 0.5-1.0mm,customizable
Material width 400-1200mm,customizable
Production speed 8-12m/min,adjustable
Power 7.5-11kW,depending on product configuration
Features
  • Fully automatic roll-forming allows one person to operate multiple machines.
  • Automated operation comes with no need for additional material storage area while minimizing dowtime;
  • One machine can complete the forming of door panels.
  • Optional sheet metal appearance can be added as required.
Details
  • Machine Frame
    The main frame is welded with square tubes, and the welded structure has undergone professional stress analysis.
    The roll froming station is formed by cutting Q235 large plates at once, and then processed by CNC gantry milling.
    A 20mm thick steel plate is added between the roll froming station and the lower machine frame to ensure the horizontality of the roll former.
  • Roll Forming Machine
    Utilizing a structure with a single forming stand and dual molds, it can simultaneously form two differetn shapes in one operation.
    The roll forming molds are all processed using the CNC turning, heat treatment, CNC fine turing process, providing higher mold circularity and durability.
  • Transmission Device
    The roll forming station is equipped with a built-in transmission device, which prevents the dropping of debris and hand injuries.
    The motor and reducer are placed inside the machine frame, saving operational space.
  • Electrical Control System
    The entire metal door forming machine is controlled by PLC system, optional in Delta/Siemens/ Mitsubishi, etc.
Tailor made solutions for metal door manufacturing
