Electric Cargo Van 5.9 Meters Manufacturer

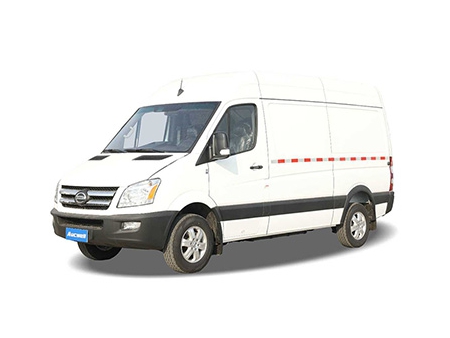

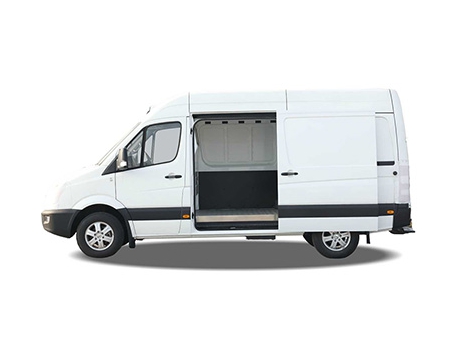

Electric Cargo Van 5.9 Meters

Request a Quote

View All: http://aucwell-ev.com/1-3-electric-cargo-van.html

D-11

Built in the shape of a light bus, this electric cargo van can carry large quantities at a go. Different from our models of D-07 (4.4 meters) and D-10 (5.3 meters), this electric van has an excellent visibility for superior maneuverability on urban cities. Besides, the seats are ergonomically designed to provide the driver with an enjoyable ride. In all, this can is combination of power and grace.

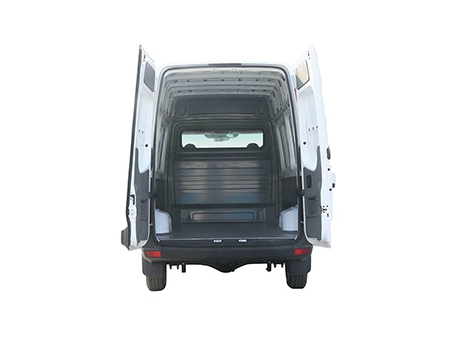

Measuring at 5,960mm in length, this electric cargo van has a loading volume up to 12.28 cubic meters and a payload capacity as many as 1,770kg. With the car frame and cargo box made of high-strength materials, our electric vehicles provide high flexibility and safety for common urban logistics and package delivery. This van's electric battery water cooling system is a standout feature, ensuring consistent battery temperature even on hot summer days. The cargo box flooring is made of durable aluminum alloy with an anti-slip design, and the windowless sides allow for easy customization with posters or prints.

We can provide you with left-hand drive and right-hand drive models based on your local regulation.

Vehicle Tour and Road Driving Test of D11 Electric Cargo Van

Driving Video of D11 Electric Cargo Van

Technical Parameters

Main Parameters	Vehicle Dimensions (LWH) (mm)	5,9602,0202,700
	Wheel Base (mm)	3,665
	Cargo Box Size (mm)	3,4501,7802,000
	Curb Weight / Total Mass (kg)	2,720 / 4,490
	Payload Capacity (kg)	1,640
	Approach / Departure Angle (°)	21 / 17
	Front / Rear Suspension (mm)	1,020 / 1,275
	Front / Rear Tracks (mm)	1,720 / 1,716
	Steering Location	Left Hand Drive
Dynamic Performance	Max. Speed (km/h)	100
	Climbing Capacity (%)	20
	Battery Capacity (kWh)	CATL-73.6
	Peak Torque (kW/Nm)	100 / 750
	Driving Range (km)	288
Chassis Steering systems	Drive Mode	Front-engine Rear-drive
	Front Suspension	Horizontal plate spring type independent suspension
	Rear Suspension	Vertical 3 plate spring type
	Steering Type	EHPS Electronic Hydraulic Power Steering
Wheels Brake System	Tire Size	215/75 R16LT 12RP
	Wheel Material / Tire	Aluminum Wheels / 4
	Brake Type	Front Disc/ Rear Drum
	Parking Brake	Ratcheting Zip Type
Body Structure	Body Structure	Load-supporting
	NO. of Doors	5Pcs, Sliding door on both side
	NO. of Seats	2

Basic Configurations

Remark：● Standard ○ Optional
Charging Configuration	Fast Charger Compliant with Euro Standards	●
Charging Configuration	7kW AC Slow Charger Compliant with Euro Standards	○
Safety Device	Pedestrian Reminder	●
	Driver's Seat Belt Reminder	●
	ABS EBD	●
	Three-point Safety Belts	●
Controllability	Reverse Radar	●
	Inner Rear-view Mirror	●
	LCD Instrument	●
	Wheel-Slip Control	●
External Configuration	Daytime Lamps	●
	Automatic Headlight	●
	Side Mark Lamp	●
	Headlamp Height Adjustable	●
	Electric Mirrors	●
	Upper Brake Lamps	●
	Rear Foot Rest	●
	Central Lock	●
	Remote Control Key	●
Internal Configuration	Front Door Electric Window	●
	Driver and Co-pilot Sunshield	●
	Aluminum Flooring	●
	Normal Ceiling	●
	Fabric Seat with High Foam Sponge	●
	Enclosed Steel Plate Partition	●
Multimedia Configuration	MP5 (Android) Back up Camera	●
	NO. of Speaker	●
	Car Recorder	2
AC	Air Conditioner (for cooling)	●
AC	PTC Heater	●
Safety Equipment	Reflective Vest	●
	Warning Triangle	●
	Spare Tire	●
	Jack (CE Mark)	●

Features

Equipped with ABS EBD system, increasing the vehicle safety.
Optional driving modes of D/S (Drive/Sport) according to road conditions.
Adopted with the dual-circuit hydraulic braking system that ensures the vehicle’s stable performance.

Equipped with EPS (Electronic Hydraulic Power Steering) that provides a better driving experience.
Battery heating system allows the vehicle to perform better in cold weather and reduces electricity consumption.
Battery water cooling system allows normal function of the car during hot weather.
GB/T fast charging and 7kW AC fast charging, improving the flexibility of charging.

Details
